BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
D Using the BC-193 to rapid charge the BP-265
The BC-193 provides rapid charging of the Li-ion battery pack
(BP-265 only). Never use for any other battery pack.
Charging time for the BP-265: Approximately 2.5 hours
The following item is additionally required:
• A power adapter (not supplied with some versions) or the DC
power cable (OPC-515L/CP-23L).
Charge indicator
• Lights orange:
While charging.
• Lights green:
Charging is completed.
Po
wer adapter
(A
different type,
or no power
adapter is sup-
plied, depending
on the version.)

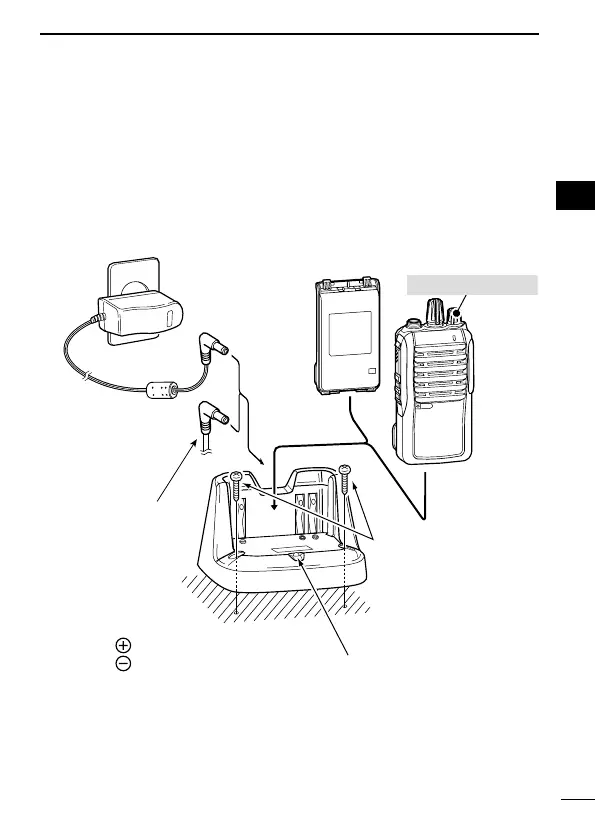

About OPC-515L
White line:
Black line
:
CAUTION: NEVER connect the
OPC-515L to a power source
using reverse polarity.
This will ruin the battery charger.
*
Battery packTransceiver
Tu rn off the power
Optional OPC-515L*
(for power source) or
CP-23L (for 12 V cig-
arette lighter socket)
can be used instead
of the power adapter.
Screws*
( Self tapping screw:
M3.5 × at least 30 mm)
*Purchase separately.
Using screws is recom-
mended to secure the
charger.
