Set an access point, PC, IP1000C and IP100H using the following steps.
STEP 1: CONNECTION EXAMPLE
See each equipment’s instruction manual for connection details.
SECTION 2 SETTING EXAMPLES
2-1 STAND ALONE NETWOR
K
CONNECTION AND IP ADDRESS SETTINGS
IMPORTANT! We recommend that you connect the access point, IP1000C and PC in a standalone
configuration. If you connect them to your local network with the following connection settings, your local
network may not operate correctly. (IP addresses may overlap.)

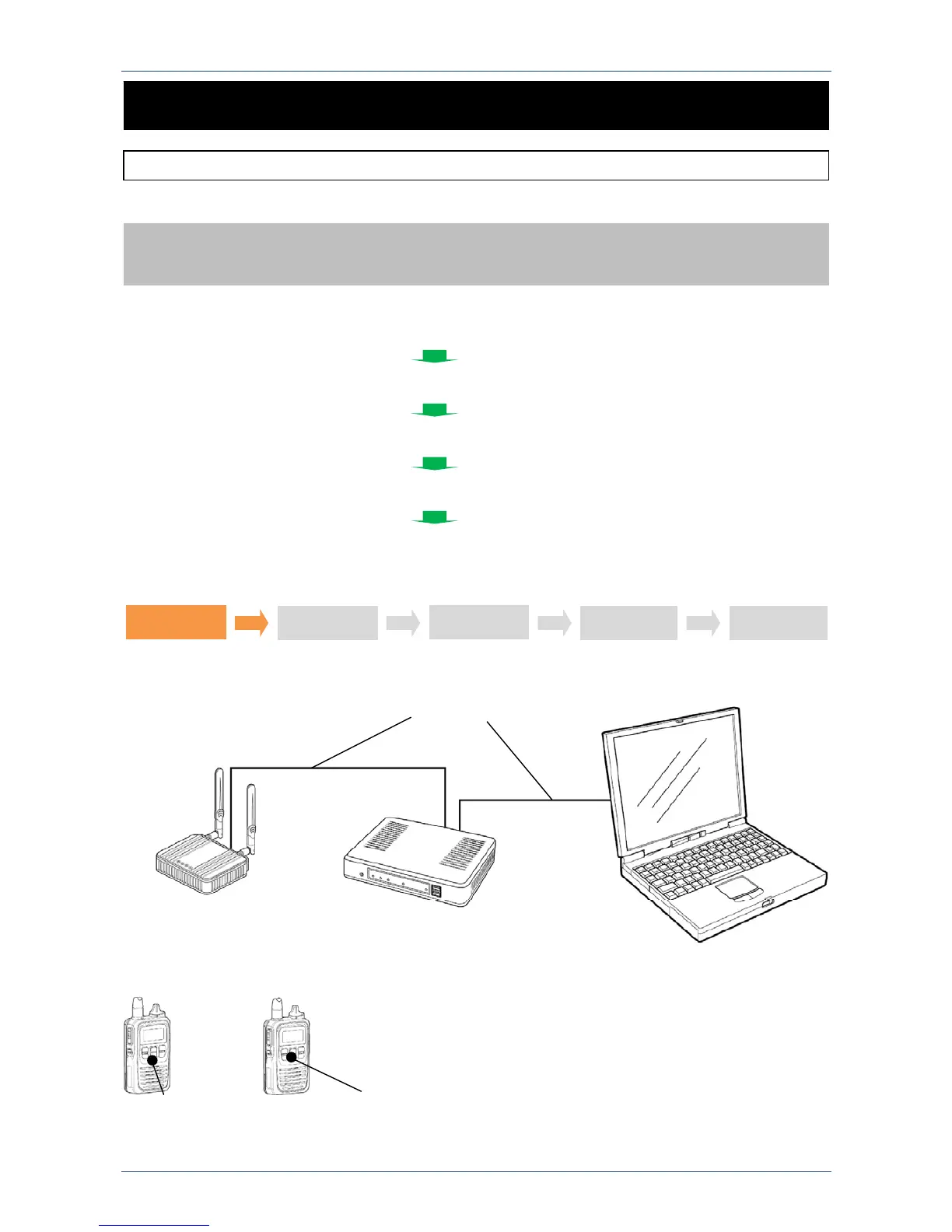

STEP 1: CONNECTION EXAMPLE
STEP 2: ACCESS POINT SETTINGS
STEP 5: DEMONSTRATION
STEP 3: IP1000C SETTINGS
STEP 4: IP100H SETTINGS
STEP 1
STEP 2
STEP 3
STEP 5 STEP 4
Access point
IP address: 192.168.0.50
Subnet mask: 255.255.255.0
IP1000C
IP address: 192.168.0.1
Subnet mask: 255.255.255.0
DHCP Server: Enable
PC
IP address: 192.168.0.70
Subnet mask: 255.255.255.0
IP100H (TR 2)
DHCP Client: Enable
IP100H (TR 1)
DHCP Client: Enable
[LAN]
[LAN 1]
[
LAN 2
]
[LAN]
LAN cable
