Icom M700PROE Servise Manual

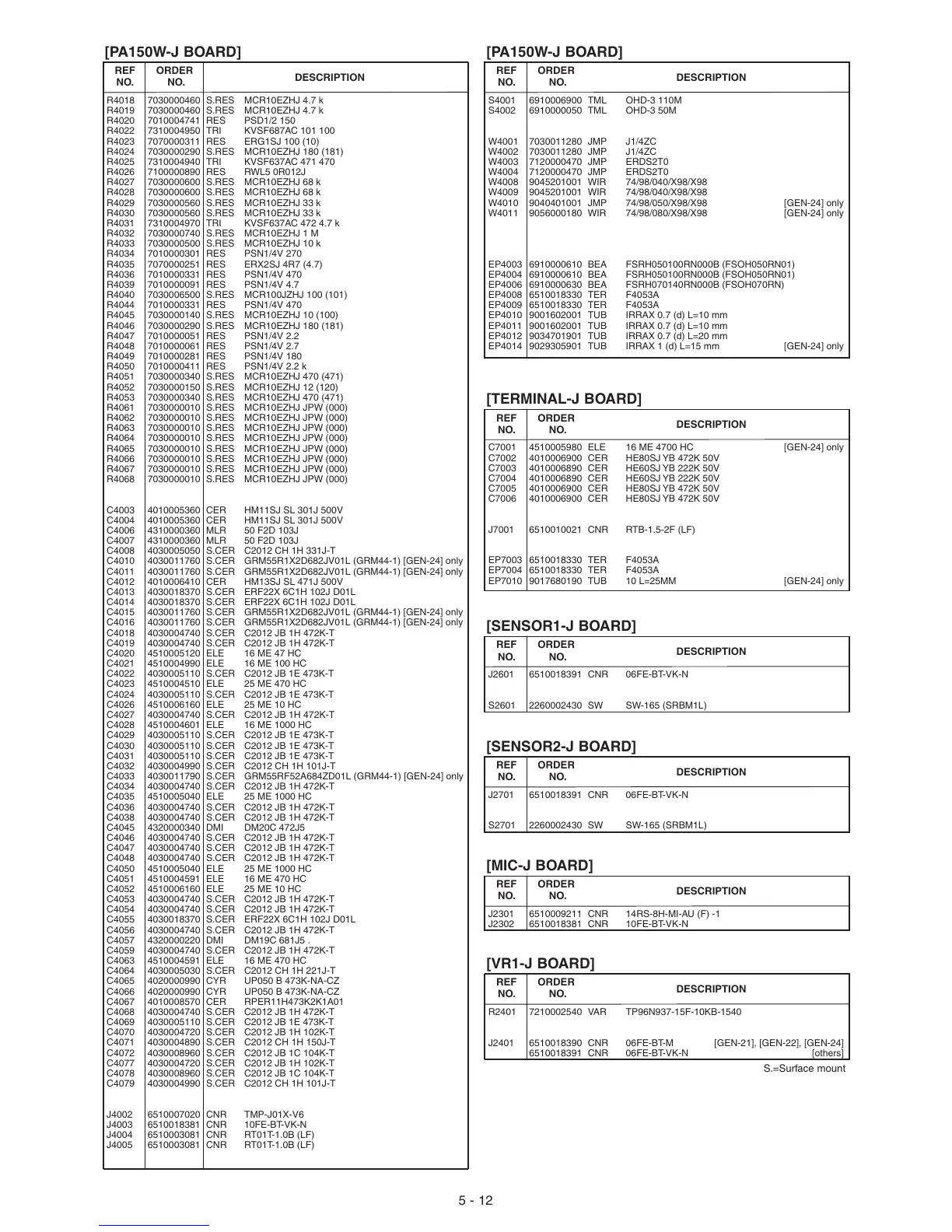

5 - 12
[PA150W-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
R4018 7030000460 S.RES MCR10EZHJ 4.7 k
R4019 7030000460 S.RES MCR10EZHJ 4.7 k
R4020 7010004741 RES PSD1/2 150
R4022 7310004950 TRI KVSF687AC 101 100
R4023 7070000311 RES ERG1SJ 100 (10)
R4024 7030000290 S.RES MCR10EZHJ 180 (181)
R4025 7310004940 TRI KVSF637AC 471 470
R4026 7100000890 RES RWL5 0R012J
R4027 7030000600 S.RES MCR10EZHJ 68 k
R4028 7030000600 S.RES MCR10EZHJ 68 k
R4029 7030000560 S.RES MCR10EZHJ 33 k
R4030 7030000560 S.RES MCR10EZHJ 33 k
R4031 7310004970 TRI KVSF637AC 472 4.7 k
R4032 7030000740 S.RES MCR10EZHJ 1 M
R4033 7030000500 S.RES MCR10EZHJ 10 k
R4034 7010000301 RES PSN1/4V 270
R4035 7070000251 RES ERX2SJ 4R7 (4.7)
R4036 7010000331 RES PSN1/4V 470
R4039 7010000091 RES PSN1/4V 4.7
R4040 7030006500 S.RES MCR100JZHJ 100 (101)
R4044 7010000331 RES PSN1/4V 470
R4045 7030000140 S.RES MCR10EZHJ 10 (100)
R4046 7030000290 S.RES MCR10EZHJ 180 (181)
R4047 7010000051 RES PSN1/4V 2.2
R4048 7010000061 RES PSN1/4V 2.7
R4049 7010000281 RES PSN1/4V 180
R4050 7010000411 RES PSN1/4V 2.2 k
R4051 7030000340 S.RES MCR10EZHJ 470 (471)
R4052 7030000150 S.RES MCR10EZHJ 12 (120)
R4053 7030000340 S.RES MCR10EZHJ 470 (471)
R4061 7030000010 S.RES MCR10EZHJ JPW (000)
R4062 7030000010 S.RES MCR10EZHJ JPW (000)
R4063 7030000010 S.RES MCR10EZHJ JPW (000)
R4064 7030000010 S.RES MCR10EZHJ JPW (000)
R4065 7030000010 S.RES MCR10EZHJ JPW (000)
R4066 7030000010 S.RES MCR10EZHJ JPW (000)
R4067 7030000010 S.RES MCR10EZHJ JPW (000)
R4068 7030000010 S.RES MCR10EZHJ JPW (000)
C4003 4010005360 CER HM11SJ SL 301J 500V
C4004 4010005360 CER HM11SJ SL 301J 500V
C4006 4310000360 MLR 50 F2D 103J
C4007 4310000360 MLR 50 F2D 103J
C4008 4030005050 S.CER C2012 CH 1H 331J-T
C4010 4030011760 S.CER GRM55R1X2D682JV01L (GRM44-1) [GEN-24] only
C4011 4030011760 S.CER GRM55R1X2D682JV01L (GRM44-1) [GEN-24] only
C4012 4010006410 CER HM13SJ SL 471J 500V
C4013 4030018370 S.CER ERF22X 6C1H 102J D01L
C4014 4030018370 S.CER ERF22X 6C1H 102J D01L
C4015 4030011760 S.CER GRM55R1X2D682JV01L (GRM44-1) [GEN-24] only
C4016 4030011760 S.CER GRM55R1X2D682JV01L (GRM44-1) [GEN-24] only
C4018 4030004740 S.CER C2012 JB 1H 472K-T
C4019 4030004740 S.CER C2012 JB 1H 472K-T
C4020 4510005120 ELE 16 ME 47 HC
C4021 4510004990 ELE 16 ME 100 HC
C4022 4030005110 S.CER C2012 JB 1E 473K-T
C4023 4510004510 ELE 25 ME 470 HC
C4024 4030005110 S.CER C2012 JB 1E 473K-T
C4026 4510006160 ELE 25 ME 10 HC
C4027 4030004740 S.CER C2012 JB 1H 472K-T
C4028 4510004601 ELE 16 ME 1000 HC
C4029 4030005110 S.CER C2012 JB 1E 473K-T
C4030 4030005110 S.CER C2012 JB 1E 473K-T
C4031 4030005110 S.CER C2012 JB 1E 473K-T
C4032 4030004990 S.CER C2012 CH 1H 101J-T
C4033 4030011790 S.CER GRM55RF52A684ZD01L (GRM44-1) [GEN-24] only
C4034 4030004740 S.CER C2012 JB 1H 472K-T
C4035 4510005040 ELE 25 ME 1000 HC
C4036 4030004740 S.CER C2012 JB 1H 472K-T
C4038 4030004740 S.CER C2012 JB 1H 472K-T
C4045 4320000340 DMI DM20C 472J5
C4046 4030004740 S.CER C2012 JB 1H 472K-T
C4047 4030004740 S.CER C2012 JB 1H 472K-T
C4048 4030004740 S.CER C2012 JB 1H 472K-T
C4050 4510005040 ELE 25 ME 1000 HC
C4051 4510004591 ELE 16 ME 470 HC
C4052 4510006160 ELE 25 ME 10 HC
C4053 4030004740 S.CER C2012 JB 1H 472K-T
C4054 4030004740 S.CER C2012 JB 1H 472K-T
C4055 4030018370 S.CER ERF22X 6C1H 102J D01L
C4056 4030004740 S.CER C2012 JB 1H 472K-T
C4057 4320000220 DMI DM19C 681J5 .
C4059 4030004740 S.CER C2012 JB 1H 472K-T
C4063 4510004591 ELE 16 ME 470 HC
C4064 4030005030 S.CER C2012 CH 1H 221J-T
C4065 4020000990 CYR UP050 B 473K-NA-CZ
C4066 4020000990 CYR UP050 B 473K-NA-CZ
C4067 4010008570 CER RPER11H473K2K1A01
C4068 4030004740 S.CER C2012 JB 1H 472K-T
C4069 4030005110 S.CER C2012 JB 1E 473K-T
C4070 4030004720 S.CER C2012 JB 1H 102K-T
C4071 4030004890 S.CER C2012 CH 1H 150J-T
C4072 4030008960 S.CER C2012 JB 1C 104K-T
C4077 4030004720 S.CER C2012 JB 1H 102K-T
C4078 4030008960 S.CER C2012 JB 1C 104K-T
C4079 4030004990 S.CER C2012 CH 1H 101J-T
J4002 6510007020 CNR TMP-J01X-V6
J4003 6510018381 CNR 10FE-BT-VK-N
J4004 6510003081 CNR RT01T-1.0B (LF)
J4005 6510003081 CNR RT01T-1.0B (LF)
S.=Surface mount
[PA150W-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
S4001 6910006900 TML OHD-3 110M
S4002 6910000050 TML OHD-3 50M
W4001 7030011280 JMP J1/4ZC
W4002 7030011280 JMP J1/4ZC
W4003 7120000470 JMP ERDS2T0
W4004 7120000470 JMP ERDS2T0
W4008 9045201001 WIR 74/98/040/X98/X98
W4009 9045201001 WIR 74/98/040/X98/X98
W4010 9040401001 JMP 74/98/050/X98/X98 [GEN-24] only
W4011 9056000180 WIR 74/98/080/X98/X98 [GEN-24] only
EP4003 6910000610 BEA FSRH050100RN000B (FSOH050RN01)
EP4004 6910000610 BEA FSRH050100RN000B (FSOH050RN01)
EP4006 6910000630 BEA FSRH070140RN000B (FSOH070RN)
EP4008 6510018330 TER F4053A
EP4009 6510018330 TER F4053A
EP4010 9001602001 TUB IRRAX 0.7 (d) L=10 mm
EP4011 9001602001 TUB IRRAX 0.7 (d) L=10 mm
EP4012 9034701901 TUB IRRAX 0.7 (d) L=20 mm
EP4014 9029305901 TUB IRRAX 1 (d) L=15 mm [GEN-24] only
[TERMINAL-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
C7001 4510005980 ELE 16 ME 4700 HC [GEN-24] only
C7002 4010006900 CER HE80SJ YB 472K 50V
C7003 4010006890 CER HE60SJ YB 222K 50V
C7004 4010006890 CER HE60SJ YB 222K 50V
C7005 4010006900 CER HE80SJ YB 472K 50V
C7006 4010006900 CER HE80SJ YB 472K 50V
J7001 6510010021 CNR RTB-1.5-2F (LF)
EP7003 6510018330 TER F4053A
EP7004 6510018330 TER F4053A
EP7010 9017680190 TUB 10 L=25MM [GEN-24] only
[SENSOR1-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
J2601 6510018391 CNR 06FE-BT-VK-N
S2601 2260002430 SW SW-165 (SRBM1L)
[SENSOR2-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
J2701 6510018391 CNR 06FE-BT-VK-N
S2701 2260002430 SW SW-165 (SRBM1L)
[MIC-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
J2301 6510009211 CNR 14RS-8H-MI-AU (F) -1
J2302 6510018381 CNR 10FE-BT-VK-N
[VR1-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
R2401 7210002540 VAR TP96N937-15F-10KB-1540
J2401 6510018390 CNR 06FE-BT-M [GEN-21], [GEN-22], [GEN-24]
6510018391 CNR 06FE-BT-VK-N [others]
