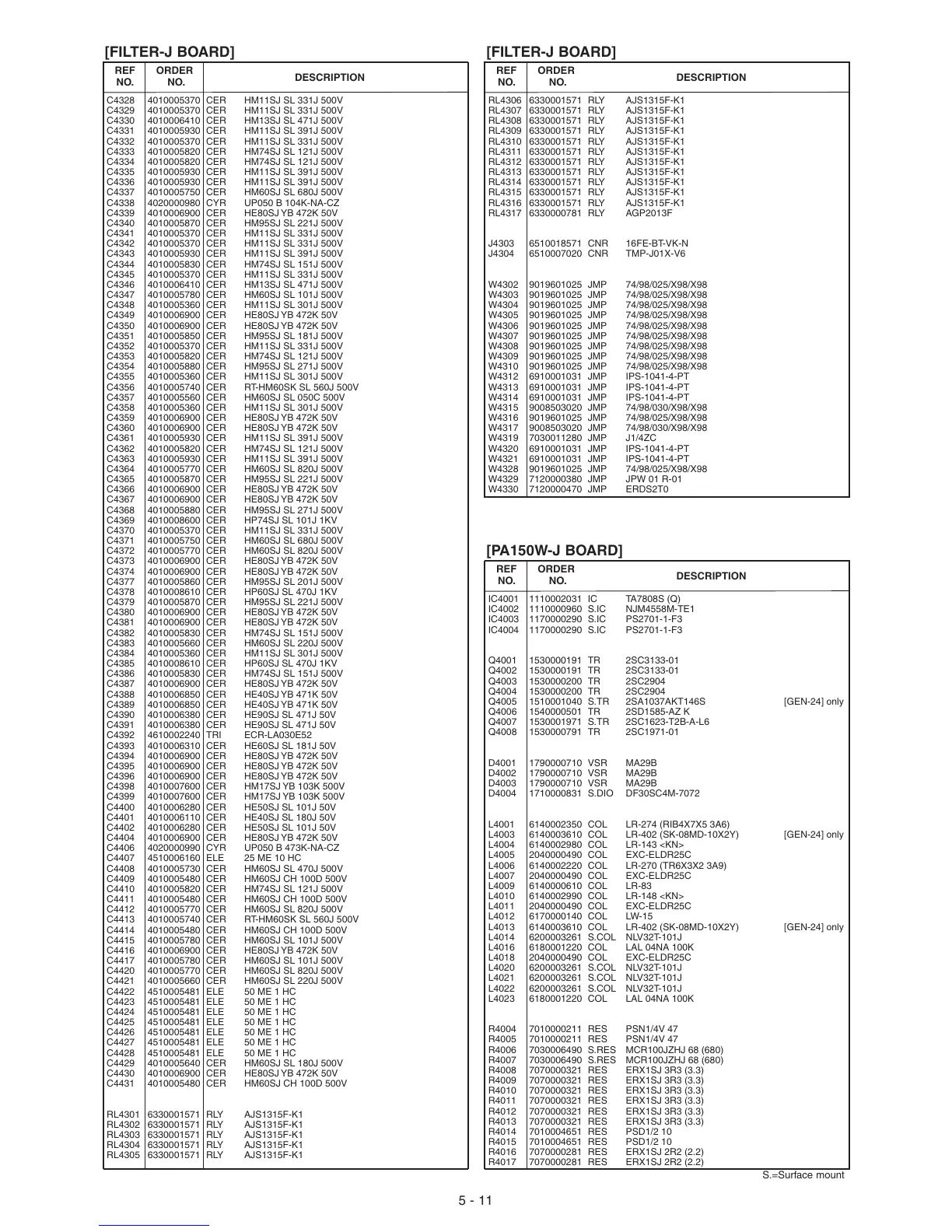

[FILTER-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
C4328 4010005370 CER HM11SJ SL 331J 500V
C4329 4010005370 CER HM11SJ SL 331J 500V
C4330 4010006410 CER HM13SJ SL 471J 500V
C4331 4010005930 CER HM11SJ SL 391J 500V
C4332 4010005370 CER HM11SJ SL 331J 500V
C4333 4010005820 CER HM74SJ SL 121J 500V
C4334 4010005820 CER HM74SJ SL 121J 500V
C4335 4010005930 CER HM11SJ SL 391J 500V
C4336 4010005930 CER HM11SJ SL 391J 500V
C4337 4010005750 CER HM60SJ SL 680J 500V
C4338 4020000980 CYR UP050 B 104K-NA-CZ
C4339 4010006900 CER HE80SJ YB 472K 50V
C4340 4010005870 CER HM95SJ SL 221J 500V
C4341 4010005370 CER HM11SJ SL 331J 500V
C4342 4010005370 CER HM11SJ SL 331J 500V
C4343 4010005930 CER HM11SJ SL 391J 500V
C4344 4010005830 CER HM74SJ SL 151J 500V
C4345 4010005370 CER HM11SJ SL 331J 500V
C4346 4010006410 CER HM13SJ SL 471J 500V
C4347 4010005780 CER HM60SJ SL 101J 500V
C4348 4010005360 CER HM11SJ SL 301J 500V
C4349 4010006900 CER HE80SJ YB 472K 50V
C4350 4010006900 CER HE80SJ YB 472K 50V
C4351 4010005850 CER HM95SJ SL 181J 500V
C4352 4010005370 CER HM11SJ SL 331J 500V
C4353 4010005820 CER HM74SJ SL 121J 500V
C4354 4010005880 CER HM95SJ SL 271J 500V
C4355 4010005360 CER HM11SJ SL 301J 500V
C4356 4010005740 CER RT-HM60SK SL 560J 500V
C4357 4010005560 CER HM60SJ SL 050C 500V
C4358 4010005360 CER HM11SJ SL 301J 500V
C4359 4010006900 CER HE80SJ YB 472K 50V
C4360 4010006900 CER HE80SJ YB 472K 50V
C4361 4010005930 CER HM11SJ SL 391J 500V
C4362 4010005820 CER HM74SJ SL 121J 500V
C4363 4010005930 CER HM11SJ SL 391J 500V
C4364 4010005770 CER HM60SJ SL 820J 500V
C4365 4010005870 CER HM95SJ SL 221J 500V
C4366 4010006900 CER HE80SJ YB 472K 50V
C4367 4010006900 CER HE80SJ YB 472K 50V
C4368 4010005880 CER HM95SJ SL 271J 500V
C4369 4010008600 CER HP74SJ SL 101J 1KV
C4370 4010005370 CER HM11SJ SL 331J 500V
C4371 4010005750 CER HM60SJ SL 680J 500V
C4372 4010005770 CER HM60SJ SL 820J 500V
C4373 4010006900 CER HE80SJ YB 472K 50V
C4374 4010006900 CER HE80SJ YB 472K 50V
C4377 4010005860 CER HM95SJ SL 201J 500V
C4378 4010008610 CER HP60SJ SL 470J 1KV
C4379 4010005870 CER HM95SJ SL 221J 500V
C4380 4010006900 CER HE80SJ YB 472K 50V
C4381 4010006900 CER HE80SJ YB 472K 50V
C4382 4010005830 CER HM74SJ SL 151J 500V
C4383 4010005660 CER HM60SJ SL 220J 500V
C4384 4010005360 CER HM11SJ SL 301J 500V
C4385 4010008610 CER HP60SJ SL 470J 1KV
C4386 4010005830 CER HM74SJ SL 151J 500V
C4387 4010006900 CER HE80SJ YB 472K 50V
C4388 4010006850 CER HE40SJ YB 471K 50V
C4389 4010006850 CER HE40SJ YB 471K 50V
C4390 4010006380 CER HE90SJ SL 471J 50V
C4391 4010006380 CER HE90SJ SL 471J 50V
C4392 4610002240 TRI ECR-LA030E52
C4393 4010006310 CER HE60SJ SL 181J 50V
C4394 4010006900 CER HE80SJ YB 472K 50V
C4395 4010006900 CER HE80SJ YB 472K 50V
C4396 4010006900 CER HE80SJ YB 472K 50V
C4398 4010007600 CER HM17SJ YB 103K 500V
C4399 4010007600 CER HM17SJ YB 103K 500V
C4400 4010006280 CER HE50SJ SL 101J 50V
C4401 4010006110 CER HE40SJ SL 180J 50V
C4402 4010006280 CER HE50SJ SL 101J 50V
C4404 4010006900 CER HE80SJ YB 472K 50V
C4406 4020000990 CYR UP050 B 473K-NA-CZ
C4407 4510006160 ELE 25 ME 10 HC
C4408 4010005730 CER HM60SJ SL 470J 500V
C4409 4010005480 CER HM60SJ CH 100D 500V
C4410 4010005820 CER HM74SJ SL 121J 500V
C4411 4010005480 CER HM60SJ CH 100D 500V
C4412 4010005770 CER HM60SJ SL 820J 500V
C4413 4010005740 CER RT-HM60SK SL 560J 500V
C4414 4010005480 CER HM60SJ CH 100D 500V
C4415 4010005780 CER HM60SJ SL 101J 500V
C4416 4010006900 CER HE80SJ YB 472K 50V
C4417 4010005780 CER HM60SJ SL 101J 500V
C4420 4010005770 CER HM60SJ SL 820J 500V
C4421 4010005660 CER HM60SJ SL 220J 500V
C4422 4510005481 ELE 50 ME 1 HC
C4423 4510005481 ELE 50 ME 1 HC
C4424 4510005481 ELE 50 ME 1 HC
C4425 4510005481 ELE 50 ME 1 HC
C4426 4510005481 ELE 50 ME 1 HC
C4427 4510005481 ELE 50 ME 1 HC
C4428 4510005481 ELE 50 ME 1 HC
C4429 4010005640 CER HM60SJ SL 180J 500V
C4430 4010006900 CER HE80SJ YB 472K 50V
C4431 4010005480 CER HM60SJ CH 100D 500V
RL4301 6330001571 RLY AJS1315F-K1
RL4302 6330001571 RLY AJS1315F-K1
RL4303 6330001571 RLY AJS1315F-K1
RL4304 6330001571 RLY AJS1315F-K1
RL4305 6330001571 RLY AJS1315F-K1
S.=Surface mount
[FILTER-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
RL4306 6330001571 RLY AJS1315F-K1
RL4307 6330001571 RLY AJS1315F-K1
RL4308 6330001571 RLY AJS1315F-K1
RL4309 6330001571 RLY AJS1315F-K1
RL4310 6330001571 RLY AJS1315F-K1
RL4311 6330001571 RLY AJS1315F-K1
RL4312 6330001571 RLY AJS1315F-K1
RL4313 6330001571 RLY AJS1315F-K1
RL4314 6330001571 RLY AJS1315F-K1
RL4315 6330001571 RLY AJS1315F-K1
RL4316 6330001571 RLY AJS1315F-K1
RL4317 6330000781 RLY AGP2013F
J4303 6510018571 CNR 16FE-BT-VK-N
J4304 6510007020 CNR TMP-J01X-V6
W4302 9019601025 JMP 74/98/025/X98/X98
W4303 9019601025 JMP 74/98/025/X98/X98
W4304 9019601025 JMP 74/98/025/X98/X98
W4305 9019601025 JMP 74/98/025/X98/X98
W4306 9019601025 JMP 74/98/025/X98/X98
W4307 9019601025 JMP 74/98/025/X98/X98
W4308 9019601025 JMP 74/98/025/X98/X98
W4309 9019601025 JMP 74/98/025/X98/X98
W4310 9019601025 JMP 74/98/025/X98/X98
W4312 6910001031 JMP IPS-1041-4-PT
W4313 6910001031 JMP IPS-1041-4-PT
W4314 6910001031 JMP IPS-1041-4-PT
W4315 9008503020 JMP 74/98/030/X98/X98
W4316 9019601025 JMP 74/98/025/X98/X98
W4317 9008503020 JMP 74/98/030/X98/X98
W4319 7030011280 JMP J1/4ZC
W4320 6910001031 JMP IPS-1041-4-PT
W4321 6910001031 JMP IPS-1041-4-PT
W4328 9019601025 JMP 74/98/025/X98/X98
W4329 7120000380 JMP JPW 01 R-01
W4330 7120000470 JMP ERDS2T0
[PA150W-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
IC4001 1110002031 IC TA7808S (Q)
IC4002 1110000960 S.IC NJM4558M-TE1
IC4003 1170000290 S.IC PS2701-1-F3
IC4004 1170000290 S.IC PS2701-1-F3
Q4001 1530000191 TR 2SC3133-01
Q4002 1530000191 TR 2SC3133-01
Q4003 1530000200 TR 2SC2904
Q4004 1530000200 TR 2SC2904
Q4005 1510001040 S.TR 2SA1037AKT146S [GEN-24] only
Q4006 1540000501 TR 2SD1585-AZ K
Q4007 1530001971 S.TR 2SC1623-T2B-A-L6
Q4008 1530000791 TR 2SC1971-01
D4001 1790000710 VSR MA29B
D4002 1790000710 VSR MA29B
D4003 1790000710 VSR MA29B
D4004 1710000831 S.DIO DF30SC4M-7072
L4001 6140002350 COL LR-274 (RIB4X7X5 3A6)
L4003 6140003610 COL LR-402 (SK-08MD-10X2Y) [GEN-24] only
L4004 6140002980 COL LR-143 <KN>
L4005 2040000490 COL EXC-ELDR25C
L4006 6140002220 COL LR-270 (TR6X3X2 3A9)
L4007 2040000490 COL EXC-ELDR25C
L4009 6140000610 COL LR-83
L4010 6140002990 COL LR-148 <KN>
L4011 2040000490 COL EXC-ELDR25C
L4012 6170000140 COL LW-15
L4013 6140003610 COL LR-402 (SK-08MD-10X2Y) [GEN-24] only
L4014 6200003261 S.COL NLV32T-101J
L4016 6180001220 COL LAL 04NA 100K
L4018 2040000490 COL EXC-ELDR25C
L4020 6200003261 S.COL NLV32T-101J
L4021 6200003261 S.COL NLV32T-101J
L4022 6200003261 S.COL NLV32T-101J
L4023 6180001220 COL LAL 04NA 100K
R4004 7010000211 RES PSN1/4V 47
R4005 7010000211 RES PSN1/4V 47
R4006 7030006490 S.RES MCR100JZHJ 68 (680)
R4007 7030006490 S.RES MCR100JZHJ 68 (680)
R4008 7070000321 RES ERX1SJ 3R3 (3.3)
R4009 7070000321 RES ERX1SJ 3R3 (3.3)
R4010 7070000321 RES ERX1SJ 3R3 (3.3)
R4011 7070000321 RES ERX1SJ 3R3 (3.3)
R4012 7070000321 RES ERX1SJ 3R3 (3.3)
R4013 7070000321 RES ERX1SJ 3R3 (3.3)
R4014 7010004651 RES PSD1/2 10
R4015 7010004651 RES PSD1/2 10
R4016 7070000281 RES ERX1SJ 2R2 (2.2)
R4017 7070000281 RES ERX1SJ 2R2 (2.2)
