Icom M700PROE Servise Manual

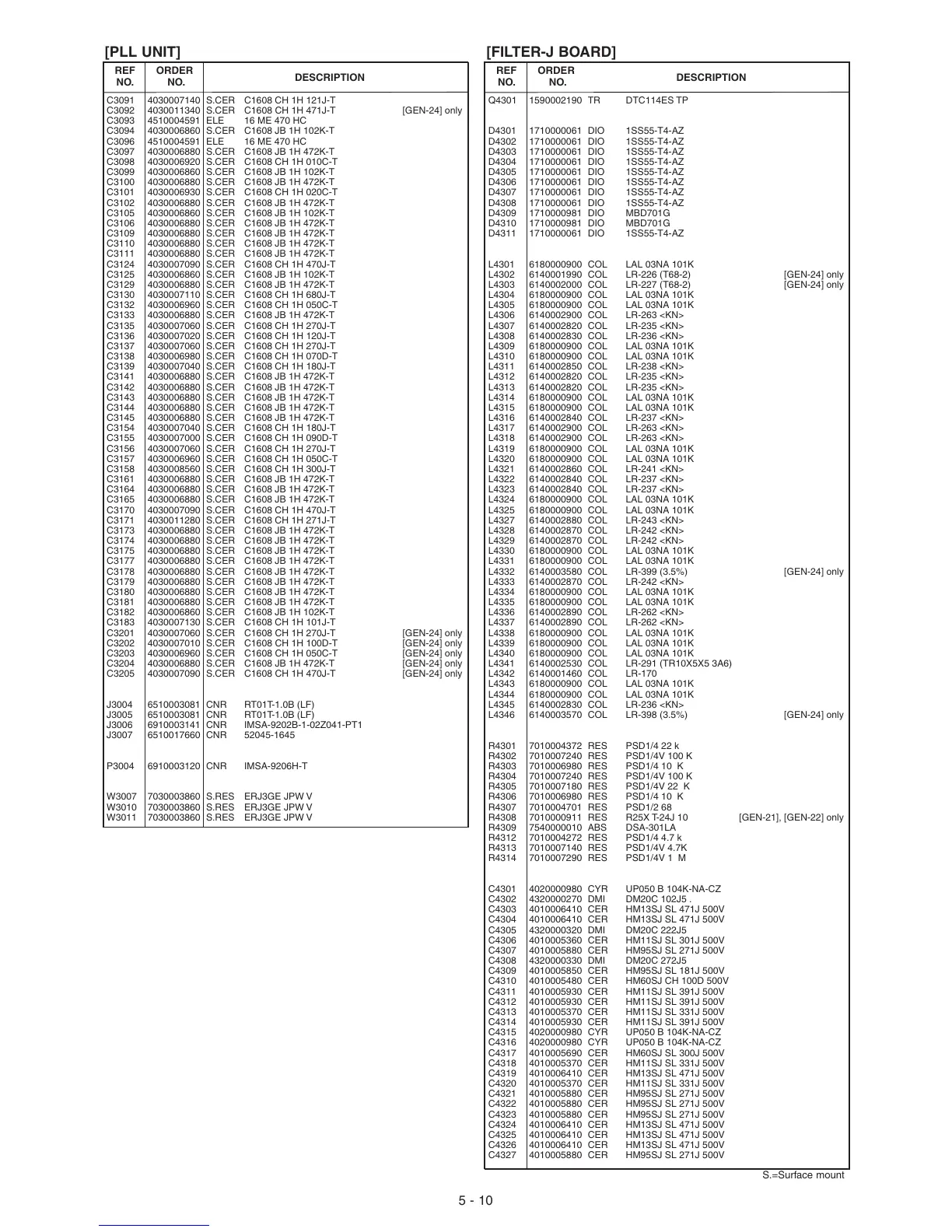

5 - 10
[PLL UNIT]
REF ORDER
DESCRIPTION
NO. NO.
C3091 4030007140 S.CER C1608 CH 1H 121J-T
C3092 4030011340 S.CER C1608 CH 1H 471J-T [GEN-24] only
C3093 4510004591 ELE 16 ME 470 HC
C3094 4030006860 S.CER C1608 JB 1H 102K-T
C3096 4510004591 ELE 16 ME 470 HC
C3097 4030006880 S.CER C1608 JB 1H 472K-T
C3098 4030006920 S.CER C1608 CH 1H 010C-T
C3099 4030006860 S.CER C1608 JB 1H 102K-T
C3100 4030006880 S.CER C1608 JB 1H 472K-T
C3101 4030006930 S.CER C1608 CH 1H 020C-T
C3102 4030006880 S.CER C1608 JB 1H 472K-T
C3105 4030006860 S.CER C1608 JB 1H 102K-T
C3106 4030006880 S.CER C1608 JB 1H 472K-T
C3109 4030006880 S.CER C1608 JB 1H 472K-T
C3110 4030006880 S.CER C1608 JB 1H 472K-T
C3111 4030006880 S.CER C1608 JB 1H 472K-T
C3124 4030007090 S.CER C1608 CH 1H 470J-T
C3125 4030006860 S.CER C1608 JB 1H 102K-T
C3129 4030006880 S.CER C1608 JB 1H 472K-T
C3130 4030007110 S.CER C1608 CH 1H 680J-T
C3132 4030006960 S.CER C1608 CH 1H 050C-T
C3133 4030006880 S.CER C1608 JB 1H 472K-T
C3135 4030007060 S.CER C1608 CH 1H 270J-T
C3136 4030007020 S.CER C1608 CH 1H 120J-T
C3137 4030007060 S.CER C1608 CH 1H 270J-T
C3138 4030006980 S.CER C1608 CH 1H 070D-T
C3139 4030007040 S.CER C1608 CH 1H 180J-T
C3141 4030006880 S.CER C1608 JB 1H 472K-T
C3142 4030006880 S.CER C1608 JB 1H 472K-T
C3143 4030006880 S.CER C1608 JB 1H 472K-T
C3144 4030006880 S.CER C1608 JB 1H 472K-T
C3145 4030006880 S.CER C1608 JB 1H 472K-T
C3154 4030007040 S.CER C1608 CH 1H 180J-T
C3155 4030007000 S.CER C1608 CH 1H 090D-T
C3156 4030007060 S.CER C1608 CH 1H 270J-T
C3157 4030006960 S.CER C1608 CH 1H 050C-T
C3158 4030008560 S.CER C1608 CH 1H 300J-T
C3161 4030006880 S.CER C1608 JB 1H 472K-T
C3164 4030006880 S.CER C1608 JB 1H 472K-T
C3165 4030006880 S.CER C1608 JB 1H 472K-T
C3170 4030007090 S.CER C1608 CH 1H 470J-T
C3171 4030011280 S.CER C1608 CH 1H 271J-T
C3173 4030006880 S.CER C1608 JB 1H 472K-T
C3174 4030006880 S.CER C1608 JB 1H 472K-T
C3175 4030006880 S.CER C1608 JB 1H 472K-T
C3177 4030006880 S.CER C1608 JB 1H 472K-T
C3178 4030006880 S.CER C1608 JB 1H 472K-T
C3179 4030006880 S.CER C1608 JB 1H 472K-T
C3180 4030006880 S.CER C1608 JB 1H 472K-T
C3181 4030006880 S.CER C1608 JB 1H 472K-T
C3182 4030006860 S.CER C1608 JB 1H 102K-T
C3183 4030007130 S.CER C1608 CH 1H 101J-T
C3201 4030007060 S.CER C1608 CH 1H 270J-T [GEN-24] only
C3202 4030007010 S.CER C1608 CH 1H 100D-T [GEN-24] only
C3203 4030006960 S.CER C1608 CH 1H 050C-T [GEN-24] only
C3204 4030006880 S.CER C1608 JB 1H 472K-T [GEN-24] only
C3205 4030007090 S.CER C1608 CH 1H 470J-T [GEN-24] only
J3004 6510003081 CNR RT01T-1.0B (LF)
J3005 6510003081 CNR RT01T-1.0B (LF)
J3006 6910003141 CNR IMSA-9202B-1-02Z041-PT1
J3007 6510017660 CNR 52045-1645
P3004 6910003120 CNR IMSA-9206H-T
W3007 7030003860 S.RES ERJ3GE JPW V
W3010 7030003860 S.RES ERJ3GE JPW V
W3011 7030003860 S.RES ERJ3GE JPW V
S.=Surface mount
[FILTER-J BOARD]
REF ORDER
DESCRIPTION
NO. NO.
Q4301 1590002190 TR DTC114ES TP
D4301 1710000061 DIO 1SS55-T4-AZ
D4302 1710000061 DIO 1SS55-T4-AZ
D4303 1710000061 DIO 1SS55-T4-AZ
D4304 1710000061 DIO 1SS55-T4-AZ
D4305 1710000061 DIO 1SS55-T4-AZ
D4306 1710000061 DIO 1SS55-T4-AZ
D4307 1710000061 DIO 1SS55-T4-AZ
D4308 1710000061 DIO 1SS55-T4-AZ
D4309 1710000981 DIO MBD701G
D4310 1710000981 DIO MBD701G
D4311 1710000061 DIO 1SS55-T4-AZ
L4301 6180000900 COL LAL 03NA 101K
L4302 6140001990 COL LR-226 (T68-2) [GEN-24] only
L4303 6140002000 COL LR-227 (T68-2) [GEN-24] only
L4304 6180000900 COL LAL 03NA 101K
L4305 6180000900 COL LAL 03NA 101K
L4306 6140002900 COL LR-263 <KN>
L4307 6140002820 COL LR-235 <KN>
L4308 6140002830 COL LR-236 <KN>
L4309 6180000900 COL LAL 03NA 101K
L4310 6180000900 COL LAL 03NA 101K
L4311 6140002850 COL LR-238 <KN>
L4312 6140002820 COL LR-235 <KN>
L4313 6140002820 COL LR-235 <KN>
L4314 6180000900 COL LAL 03NA 101K
L4315 6180000900 COL LAL 03NA 101K
L4316 6140002840 COL LR-237 <KN>
L4317 6140002900 COL LR-263 <KN>
L4318 6140002900 COL LR-263 <KN>
L4319 6180000900 COL LAL 03NA 101K
L4320 6180000900 COL LAL 03NA 101K
L4321 6140002860 COL LR-241 <KN>
L4322 6140002840 COL LR-237 <KN>
L4323 6140002840 COL LR-237 <KN>
L4324 6180000900 COL LAL 03NA 101K
L4325 6180000900 COL LAL 03NA 101K
L4327 6140002880 COL LR-243 <KN>
L4328 6140002870 COL LR-242 <KN>
L4329 6140002870 COL LR-242 <KN>
L4330 6180000900 COL LAL 03NA 101K
L4331 6180000900 COL LAL 03NA 101K
L4332 6140003580 COL LR-399 (3.5%) [GEN-24] only
L4333 6140002870 COL LR-242 <KN>
L4334 6180000900 COL LAL 03NA 101K
L4335 6180000900 COL LAL 03NA 101K
L4336 6140002890 COL LR-262 <KN>
L4337 6140002890 COL LR-262 <KN>
L4338 6180000900 COL LAL 03NA 101K
L4339 6180000900 COL LAL 03NA 101K
L4340 6180000900 COL LAL 03NA 101K
L4341 6140002530 COL LR-291 (TR10X5X5 3A6)
L4342 6140001460 COL LR-170
L4343 6180000900 COL LAL 03NA 101K
L4344 6180000900 COL LAL 03NA 101K
L4345 6140002830 COL LR-236 <KN>
L4346 6140003570 COL LR-398 (3.5%) [GEN-24] only
R4301 7010004372 RES PSD1/4 22 k
R4302 7010007240 RES PSD1/4V 100 K
R4303 7010006980 RES PSD1/4 10 K
R4304 7010007240 RES PSD1/4V 100 K
R4305 7010007180 RES PSD1/4V 22 K
R4306 7010006980 RES PSD1/4 10 K
R4307 7010004701 RES PSD1/2 68
R4308 7010000911 RES R25X T-24J 10 [GEN-21], [GEN-22] only
R4309 7540000010 ABS DSA-301LA
R4312 7010004272 RES PSD1/4 4.7 k
R4313 7010007140 RES PSD1/4V 4.7K
R4314 7010007290 RES PSD1/4V 1 M
C4301 4020000980 CYR UP050 B 104K-NA-CZ
C4302 4320000270 DMI DM20C 102J5 .
C4303 4010006410 CER HM13SJ SL 471J 500V
C4304 4010006410 CER HM13SJ SL 471J 500V
C4305 4320000320 DMI DM20C 222J5
C4306 4010005360 CER HM11SJ SL 301J 500V
C4307 4010005880 CER HM95SJ SL 271J 500V
C4308 4320000330 DMI DM20C 272J5
C4309 4010005850 CER HM95SJ SL 181J 500V
C4310 4010005480 CER HM60SJ CH 100D 500V
C4311 4010005930 CER HM11SJ SL 391J 500V
C4312 4010005930 CER HM11SJ SL 391J 500V
C4313 4010005370 CER HM11SJ SL 331J 500V
C4314 4010005930 CER HM11SJ SL 391J 500V
C4315 4020000980 CYR UP050 B 104K-NA-CZ
C4316 4020000980 CYR UP050 B 104K-NA-CZ
C4317 4010005690 CER HM60SJ SL 300J 500V
C4318 4010005370 CER HM11SJ SL 331J 500V
C4319 4010006410 CER HM13SJ SL 471J 500V
C4320 4010005370 CER HM11SJ SL 331J 500V
C4321 4010005880 CER HM95SJ SL 271J 500V
C4322 4010005880 CER HM95SJ SL 271J 500V
C4323 4010005880 CER HM95SJ SL 271J 500V
C4324 4010006410 CER HM13SJ SL 471J 500V
C4325 4010006410 CER HM13SJ SL 471J 500V
C4326 4010006410 CER HM13SJ SL 471J 500V
C4327 4010005880 CER HM95SJ SL 271J 500V
