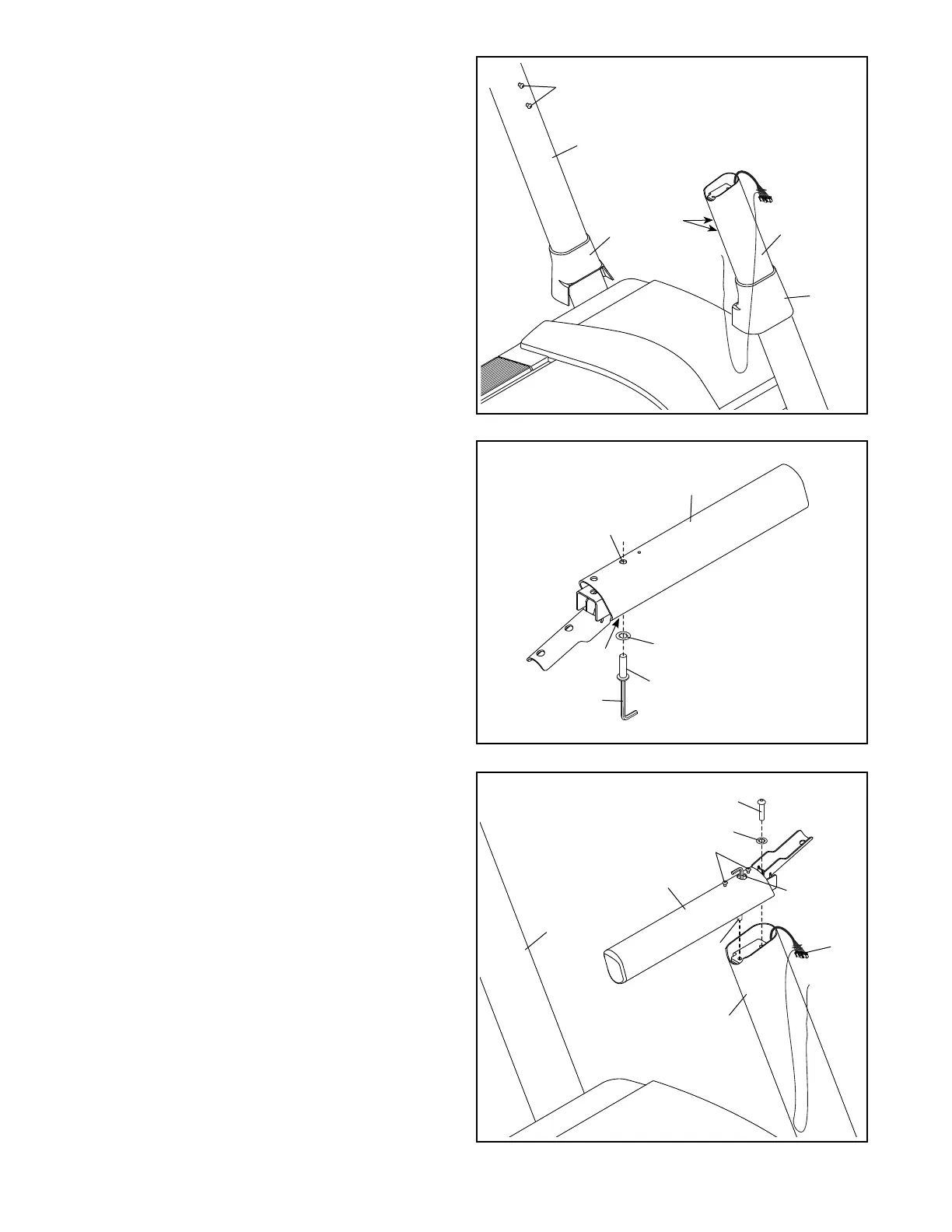

6. Remove and save the four indicated 5/16" x
3/4" Screws (13).
Identify the Left and Right Base Covers (93, 94).
Slide the Left Base Cover onto the Left Upright
(78), and slide the Right Base Cover onto the
Right Upright (79). Do not press the Base
Covers into place yet.
6
13
13
7. Turn one of the Handrails (72) upside down.
Insert a 5/16" x 1 1/2" Screw (5) with a 5/16" Star
Washer (7) into the indicated large hole (F) and
out of the indicated small hole (G).
Next, hold the 5/16" x 1 1/2" Screw (5) with the
hex key (H), and turn the Handrail (72) back
upright. Continue to hold the Screw in place
as you complete the next assembly step.
7
72
7
5
F
H
G
8. Set the Handrail (72) on the Right Upright (79).
Using the hex key (H), partially tighten the
5/16" x 1 1/2" Screw (5); do not fully tighten
the Screw yet.
Next, start another 5/16" x 1 1/2" Screw (5) with
a 5/16" Star Washer (7) into the Handrail (72)
and the Right Upright (79). Then, tighten both
Screws. Do not pinch the Upright Wire (80).
Then, remove and discard the two indicated
screws (I).
Repeat step 7 and this step to attach the
other Handrail (not shown) to the Left Upright
(78). Note: There are no wires on the left side.
7
80
72
5
5
8
79
78
I
H
93
79
94
78
