20. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see pages 32 and 33). Note: Extra hardware may be
included.
91
89
54
90
52
19

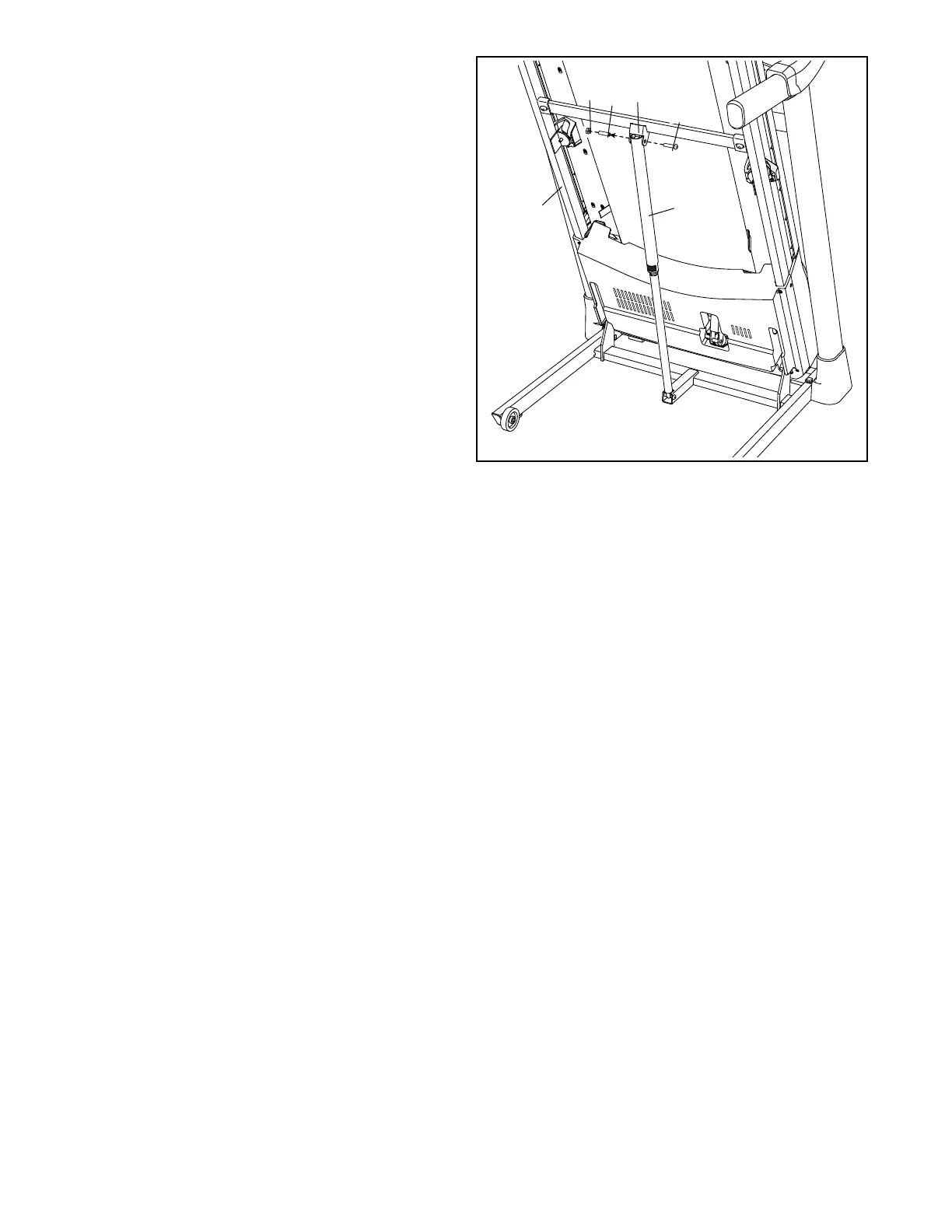

19. Remove the 5/16" Nut (90) and the 5/16" x
2 1/4" Bolt (89) from the bracket on the Latch
Crossbar (91).
Align the upper end of the Storage Latch (52)
with the bracket on the Latch Crossbar (91), and
insert the 5/16" x 2 1/4" Bolt (89) through the
bracket and the Storage Latch. This will push a
spacer (O) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (90) onto the 5/16" x
2 1/4" Bolt (89). Do not overtighten the Nut;
the Storage Latch (52) must be able to pivot.
Then, lower the Frame (54) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 30).
