10
5

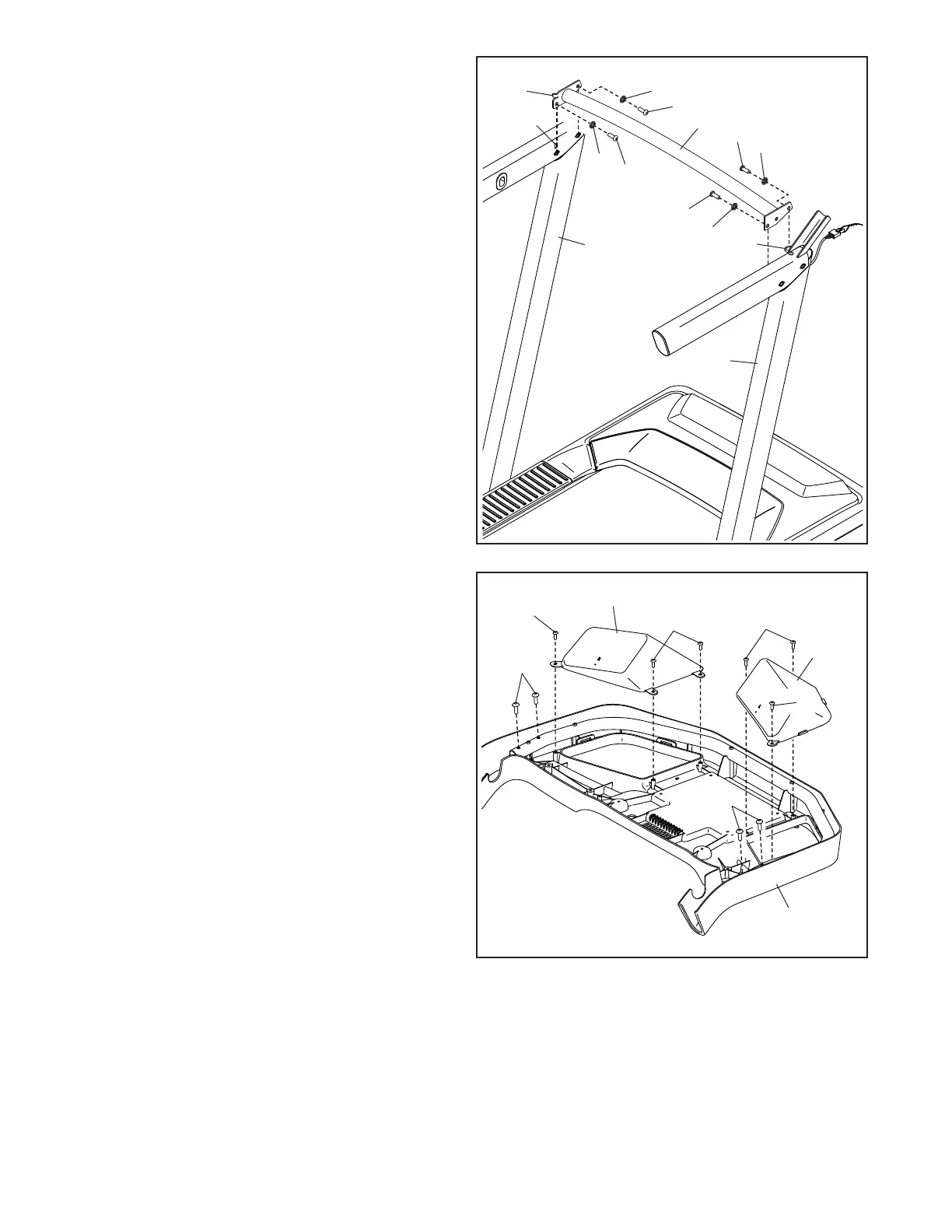

5. Do not pinch the ground wire (31) during this
step.
Locate the small tab (E) on the Crossbar (69).
Hold the Crossbar between the Uprights
(72, 73), with the tab in the slot (F) in the Left
Upright.
Attach the Crossbar (69) with four 5/16" x 3/4"
Screws (2) and four 5/16" Star Washers (6);
start all four Screws, and then tighten them.
6
2
14
2
84
14
14
6. Set the Console Base (84) facedown on a soft
surface to avoid scratching the Console Base.
Attach the Left and Right Trays (32, 46) to the
Console Base (84) with six #8 x 1/2" Screws
(14); start all of the Screws, and then tighten
them. Do not overtighten the Screws.
Then, remove and save the four indicated
5/16" x 3/4" Screws (2).
72
69
6
2
2
2
2
6
E
F
6
6
31
73
14
46
32
To Next Page
