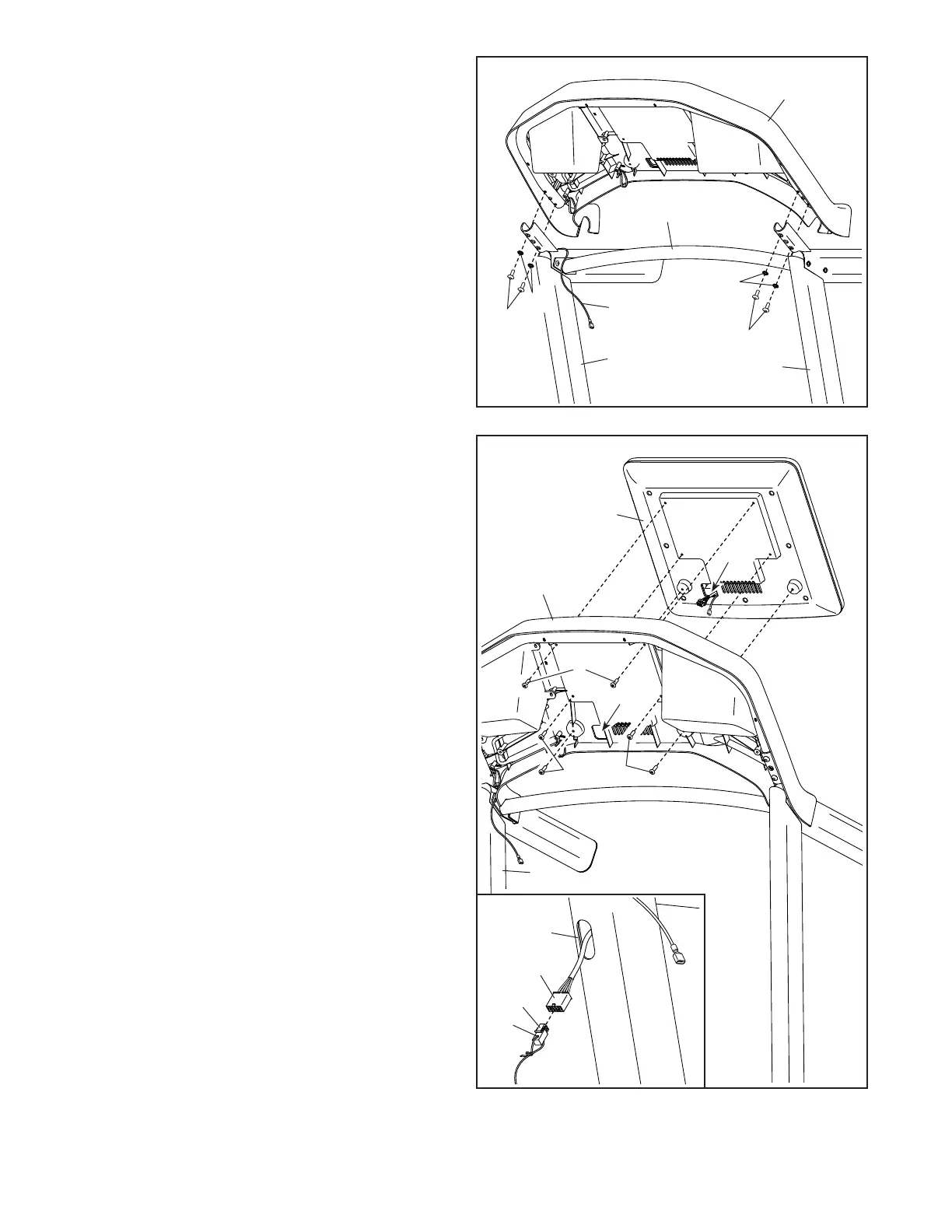

7. Make sure that the Ground Wire (31) is in front
of the Crossbar (69) as shown. Do not pinch
the Ground Wire during this step.
Set the Console Base (84) on the Uprights
(72, 73).
Attach the Console Base (84) with the four
5/16" x 3/4" Screws (2) that you removed in
step 6 and four 5/16" Star Washers (6); start all
four Screws, and then tighten them.
73
6
2
84
31
72
2
7
7
7
84
83
8. Do not pinch any wires (G) during this step.
Hold the Console (83) near the Console Base
(84). Insert the console wires (G) into the
opening (H) in the Console Base, and then set
the Console on the Console Base.
Attach the Console (83) with six #8 x 3/4"
Screws (7); start all six Screws, and then
tighten them. Do not overtighten the Screws.
See the inset drawing. Grip the connector on
the end of the Upright Wire (74) in the Right
Upright (73). Then, press the small latch (I) on
the wire pull (D), and remove and discard the
wire pull.
G
H
6
69
74
I
73
D
73
