13
14. Orient the Square Grommet (68) as shown in the
inset drawing, and close it around the Upright
Wire (74). Next, insert the small ear (K) on the
Square Grommet into the square hole (L) in the
Right Upright (73), and then press the Square
Grommet into the square hole.
See step 10. Pull the two Plastic Ties (45) tight,
and carefully cut off the ends.
13. Remove the 5/16" Nut (23) and the 5/16" x 2 1/4"
Bolt (29) from the bracket on the Latch Crossbar
(87).
Next, align the upper end of the Storage Latch
(71) with the bracket on the Latch Crossbar (87),
and insert the 5/16" x 2 1/4" Bolt (29) through
the bracket and the Storage Latch. This will
push a spacer (O) out of the Storage Latch:
discard the spacer. Note: If either of the 5/16"
Bushings (3) comes out, reinsert it.
Then, tighten the 5/16" Nut (23) onto the 5/16" x
2 1/4" Bolt (29). Do not overtighten the Nut;
the Storage Latch (71) must be able to pivot.
12

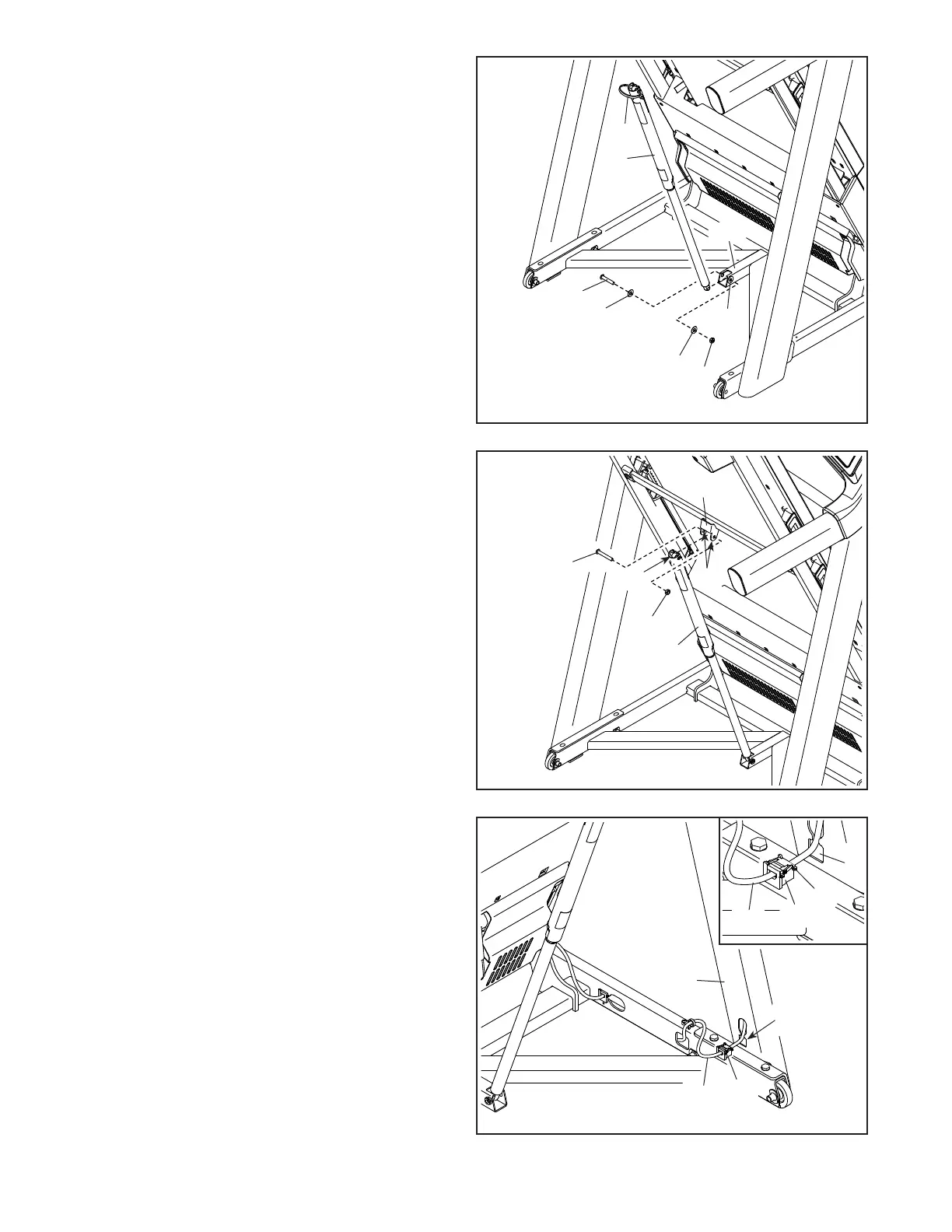

12. Remove the 5/16" Nut (23), the two 3/8" Thrust
Washers (16), and the 5/16" x 1 3/4" Bolt (19)
from the Upright Base (81). Note: If either of
the 5/16" Bushings (3) comes out, reinsert it.
Next, orient the Storage Latch (71) as shown
and attach it to the bracket on the Upright Base
(81) with the 5/16" x 1 3/4" Bolt (19), the two 3/8"
Thrust Washers (16), and the 5/16" Nut (23).
Then, raise the Storage Latch (71) to a vertical
position, and remove the tie (N).
13
71
71
N
23
3
19
29
23
73
L
14
16
16
87
81
3
O
74
68
K
L
68
74
To Next Page
