ICON Platform M+ - Rear Panel Connections

8

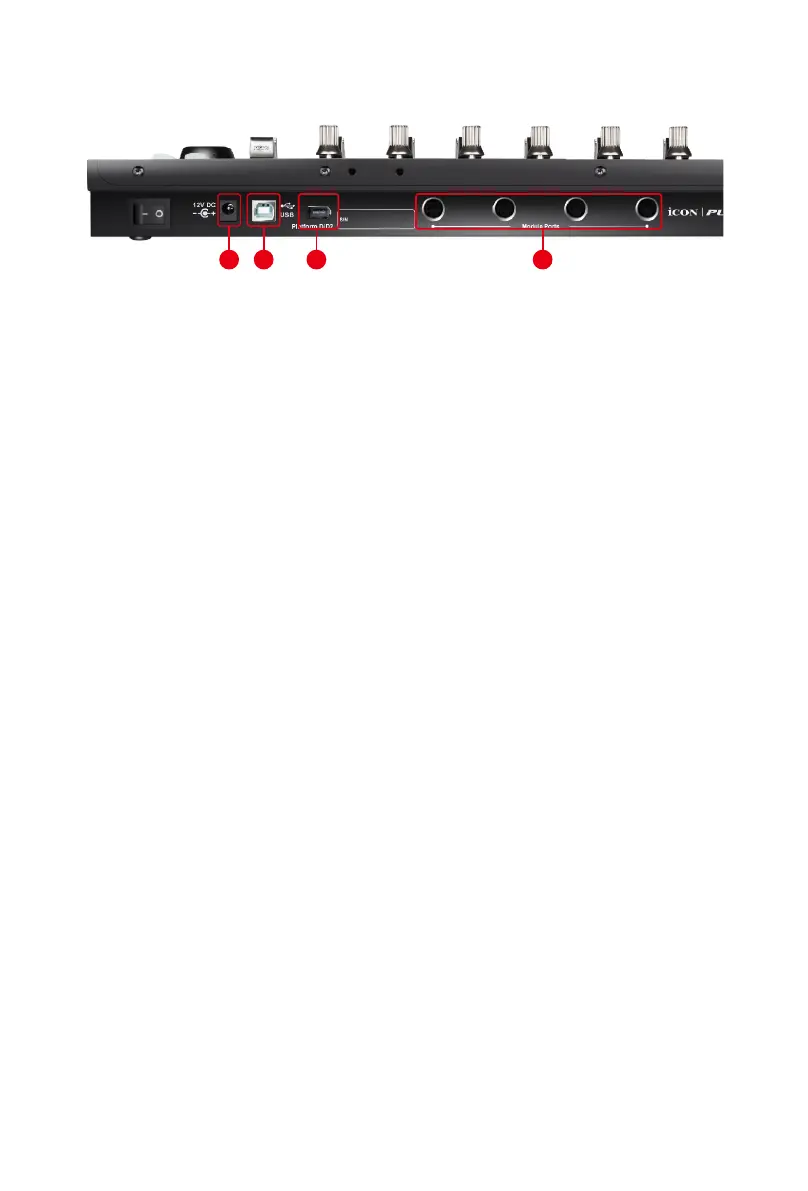

Rear Panel Layout

1. USB port
 Functions as a MIDI port to your notebook (or computer) and compatible
 software.

2. Extension ports
 These extension ports are equipped for connecting dedicated Platform
series control module such as Platform B (button module).
3. Plattform D / D2 LCD module port
 Connect the Platform D / D2 to this port with the provided cable.
1 2 43
