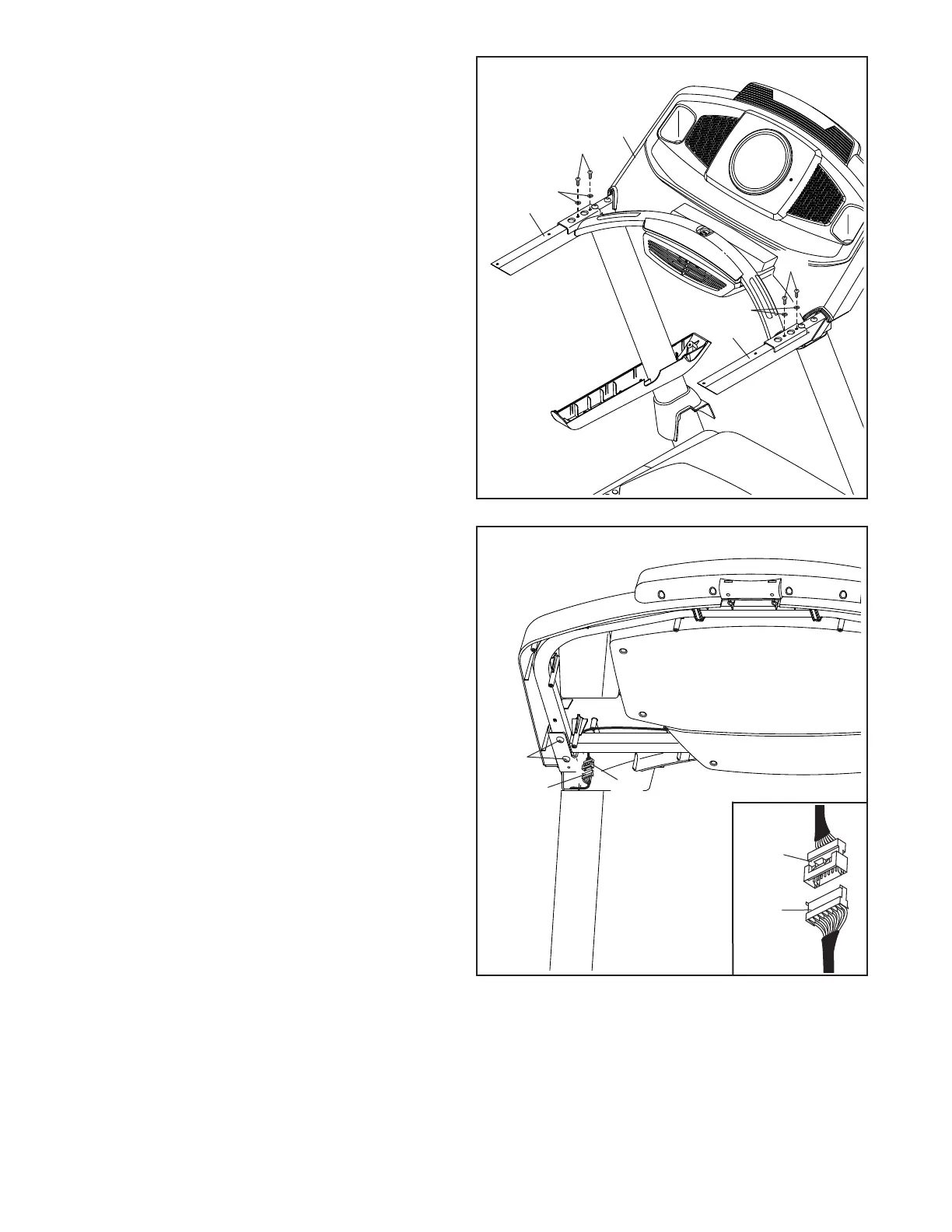

12. Attach the console assembly (J) to the Left and
Right Handrails (86, 87) with four #10 x 3/4"
Screws (9) and four #10 Star Washers (5); start
all four Screws, and then tighten them.
5
12
5
9
J
86
87
13. See the inset drawing. Connect the Upright
Wire (81) to the console wire (K). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER.
Then, firmly tighten the four 5/16" x 1/2"
Screws (4) (only two are shown).
81
81
K
13
4
K
9
To Next Page
