22

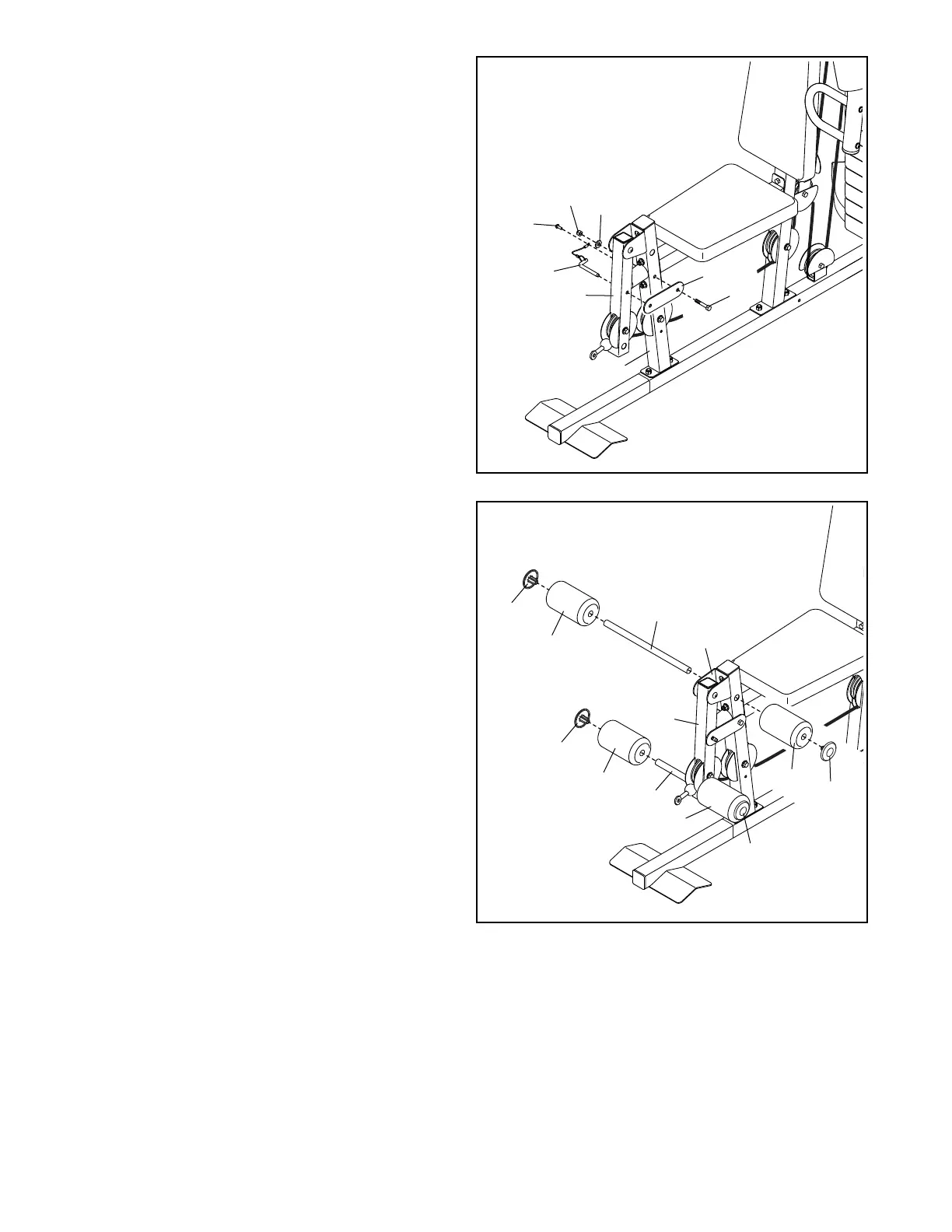

34. Attach the Lock Plate (73) to the Front Leg (7)
with an M10 x 68mm Bolt (71), an M10 Washer
(57), and an M10 Locknut (56). Do not over-
tighten the Locknut; the Lock Plate must
pivot easily.
Next, attach the Leg Lever Pin (38) to the
Front Leg (7) with an M4 x 19mm Self-tapping
Screw (69).
Then, insert the Leg Lever Pin (38) through the
Leg Lever (8) and the Lock Plate (73).
35. Insert a Pad Tube (29) into the Front Leg (7).
Next, slide a Small Foam Pad (28) onto each
end of the Pad Tube (29).
Then, press a Pad Cap (34) into each end of the
Pad Tube (29).
Repeat this step on the Leg Lever (8).
34
35
56
57
69
38
8
29
7
8
28
28
29
34
34
34
34
73
71
28
28
7
