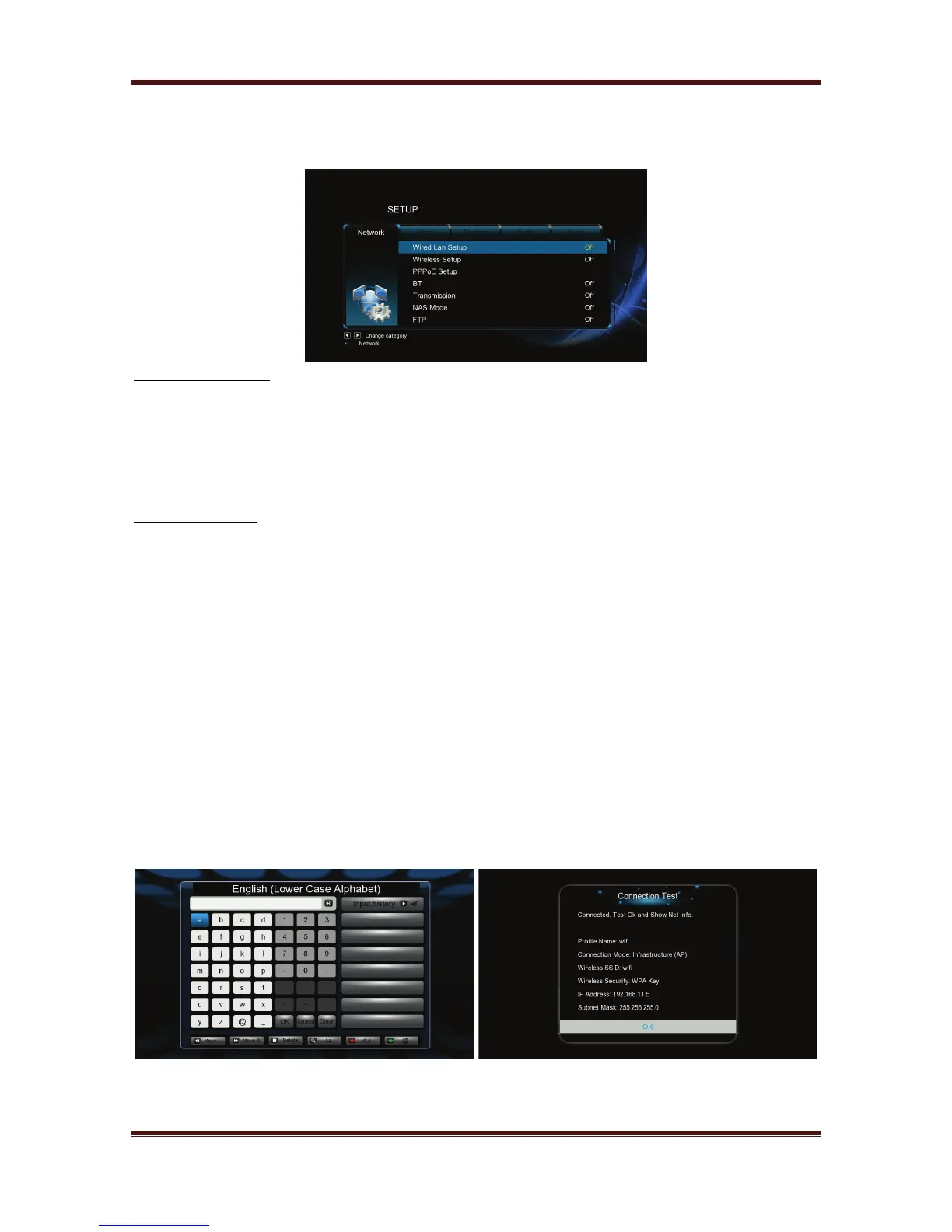

3.1.4. Changing Network Settings
Wired Lan Setup
- DHCP IP (AUTO)
Select to obtain IP address automatically.
- FIX IP (MANUAL)
Select to manually input the IP Address, Subnet Mask, Default Gateway, and DNS Server
IP Address.
Wireless Setup
There are 3 mode for you to select, Infrastructure (AP) and Peer to Peer (Ad Hoc) and
WPS (AP) mode. Follow the prompting message on the screen and press Red button to
choose Peer to Peer (Ad Hoc) or WPS (AP) mode.
Infrastructure (AP)
Infrastructure mode is used to connect computers with wireless network adapters, also
known as wireless clients, to an existing wired network with the help from wireless router or
access point. Please follow following steps to configure your wireless network .
Step 1: Scanning AP
in your network
Follow the prompting message on the screen and press the Zoom button to select
Infrastructure (AP) mode and update the access points list, and all SSID will be displayed
on the screen.
Step 2: Input WEP / WPA key.
Press OK to input encryption keys via the virtual keyboard, OK to confirm and to start
testing the connection.
The testing process will take for a while, please be patient to wait. If the test is ok, the
network information (Profile Name, IP address, Subnet Mask, Gateway, etc.) will be
displayed on the screen.
13
