Appendix G: Node Information Area
ET-7000 AIO User Manual, Apr. 2009, V1.04, EMH-011-104----------147
Appendix G: Node Information Area
Each ET-7000 module has a built-in EEPROM to store configuration information such as IP
address, type code, etc. One minor drawback is that there are no visual indications of the

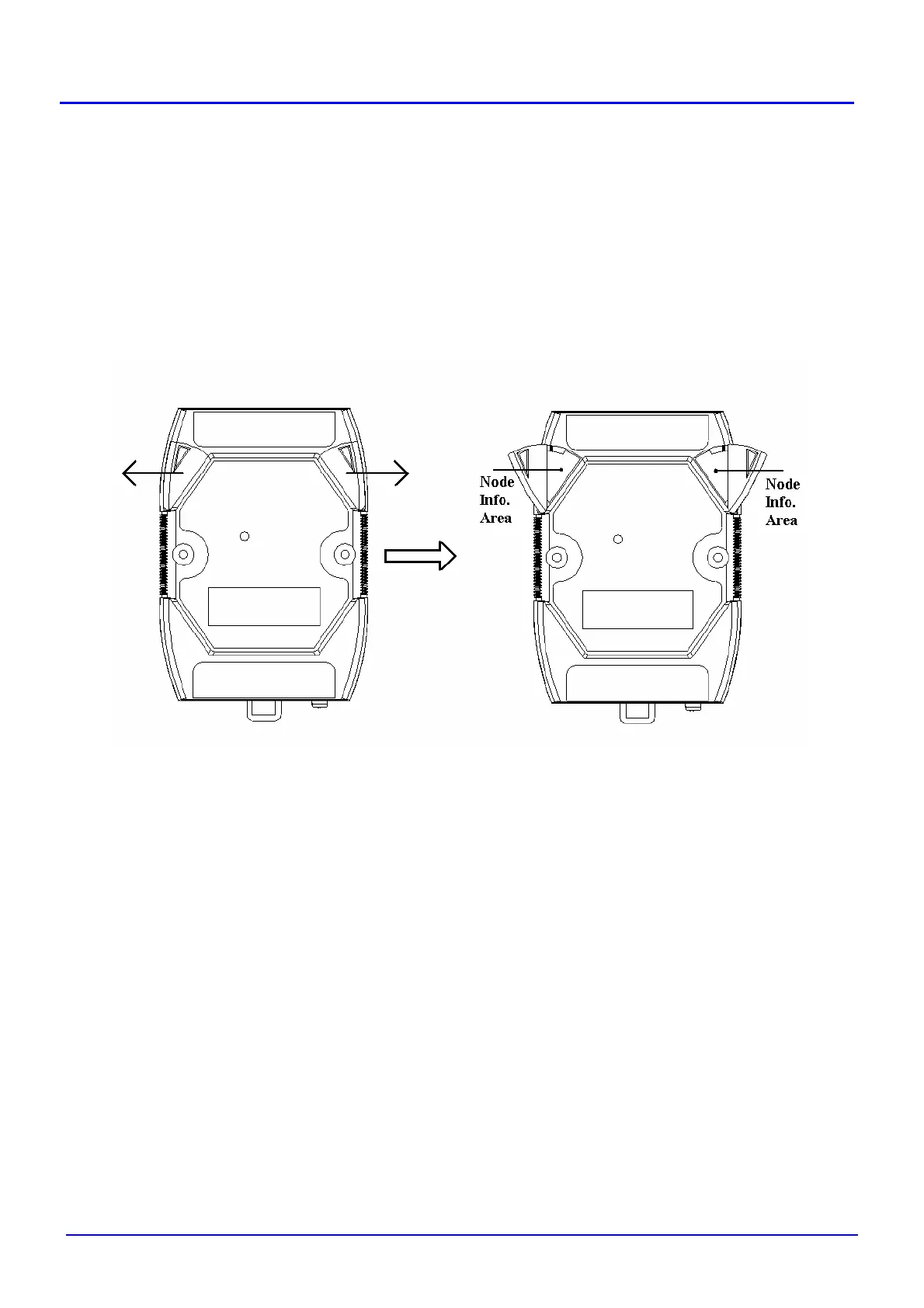

configuration of the module. New ET-7000 modules include node information areas that are
protected by a cover, as shown below, and can be used to make a written record of the node
information, such as IP address, etc. To access the node information areas, first slide the
covers outward, as shown in the figure below.
