3. Connect both the tGW-700/GW-2200 and the Host computer to the same sub-network or the
same Ethernet Switch, and then supply power (PoE or +12 to +48 VDC) to the
tGW-700/GW-2200.

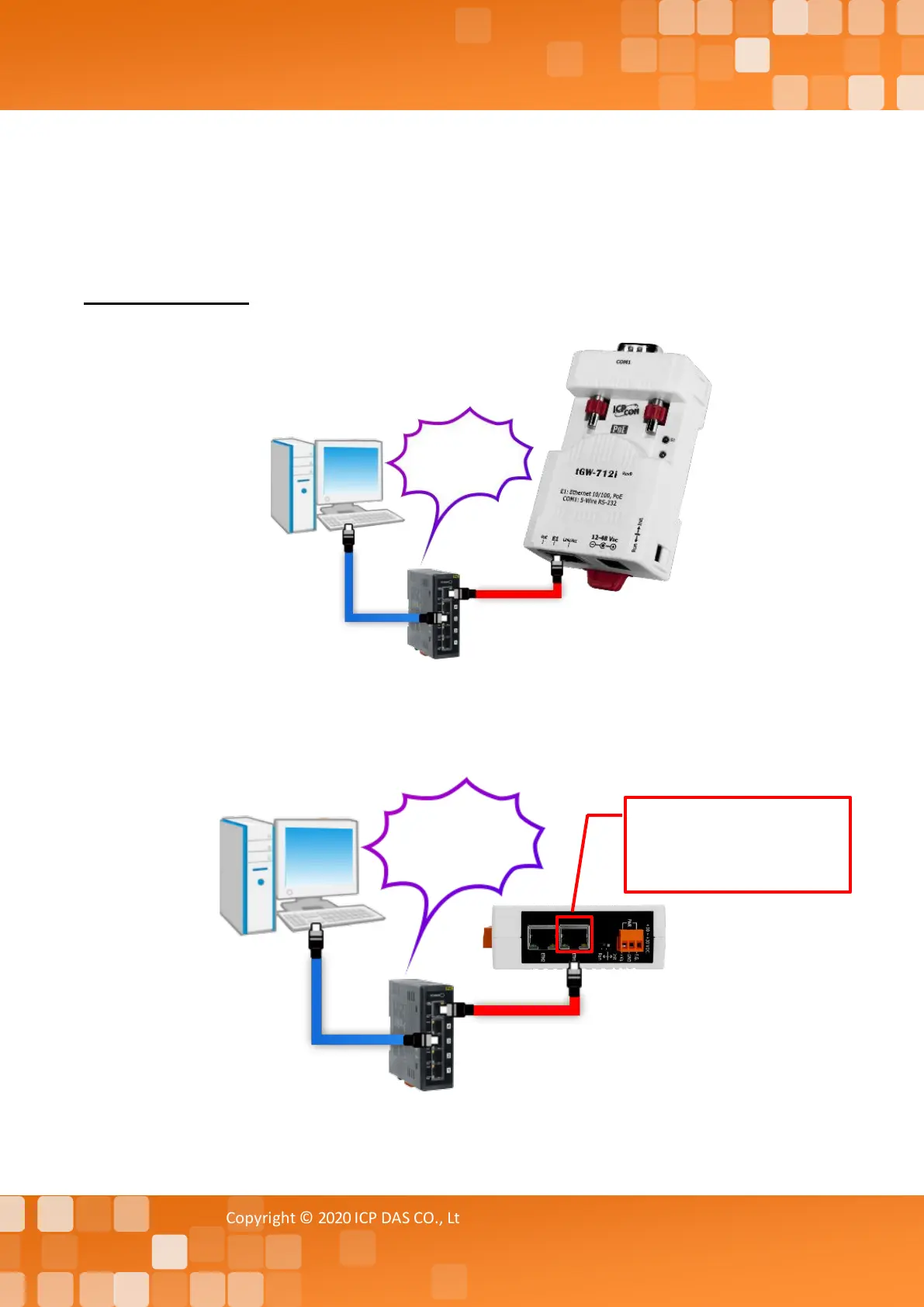

PoE Power Supply
Note: tGW-700-T series don’t support PoE.
tGW-700 Series
GW-2200 Series
Host PC
PoE Switch (NS-205PSE)
Uses PoE Switch
Ethernet Cable
Power over Ethernet
Only ETH1 supports PoE,
E TH2 no sup p o rts P oE
Host PC
PoE Switch (NS-205PSE)
Uses PoE Switch
Ethernet Cable
Power over Ethernet
