Tiny Modbus/TCP to RTU/ASCII Gateway
Copyright © 2020 ICP DAS CO., Ltd. All Rights Reserved. - 53 -

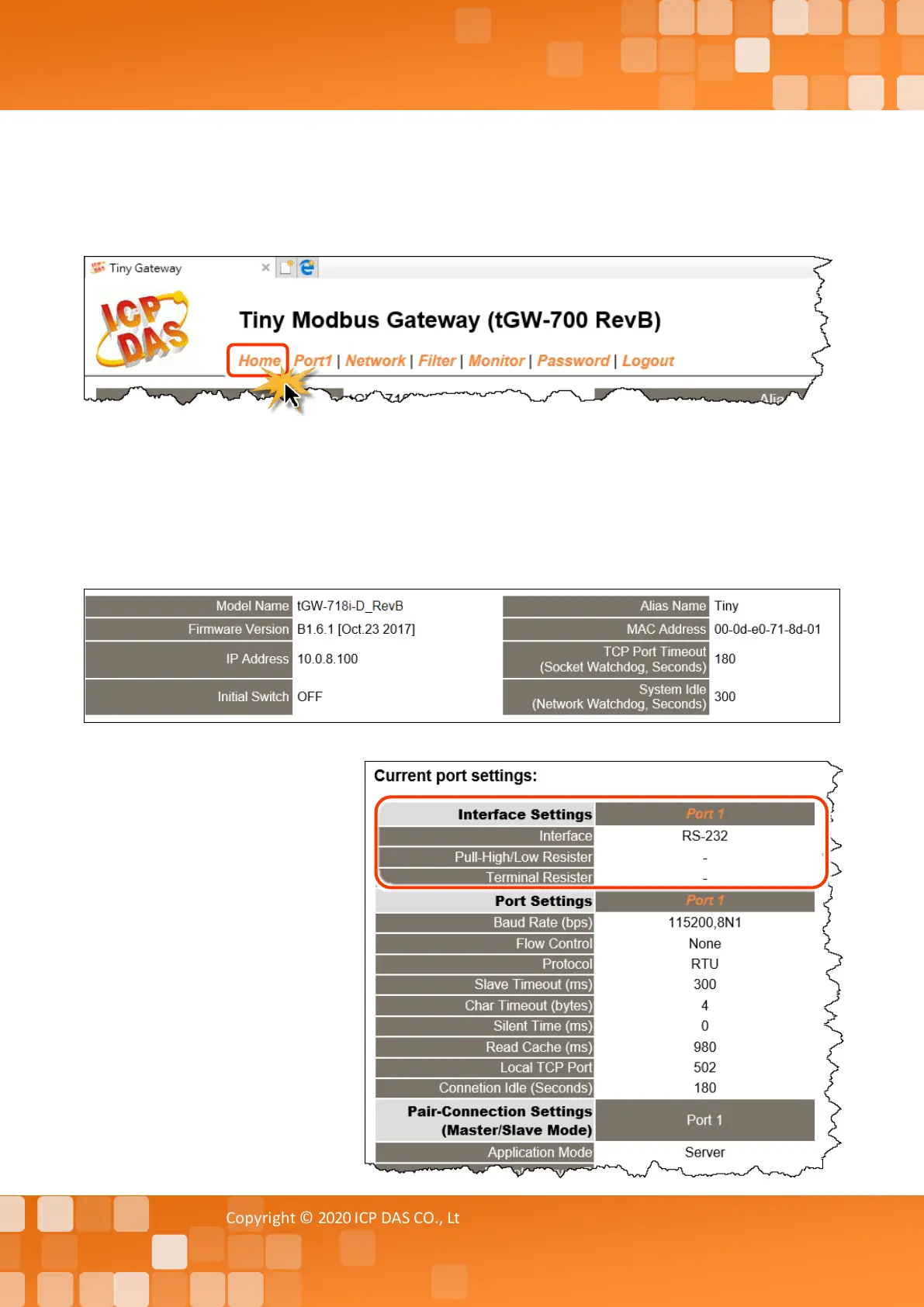

5.2 Home Page
The Home link connects to the main page, which contains two parts.
The first part of this page provides basic information about the tGW-700/GW-2200 hardware and
software. The software and hardware information section includes information related to the
Model Name, the current Firmware version, the IP Address, the current position of the Initial Switch,
the Alias, the MAC Address, and the TCP Port, and the System Timeout values. If you update the
firmware for the tGW-700/GW-2200 module, this page can be used to check the version information of
the tGW-700/GW-2200 software.
The lower section provides
information related to the port
settings and pair-connection
settings.
Only tGW-718i-D has this field.
