ICP *9MPT050F12 - Page 57

57
440 01 2021 01
THIS DATA IS SUBJECT TO CHANGE WITHOUT NOTICE

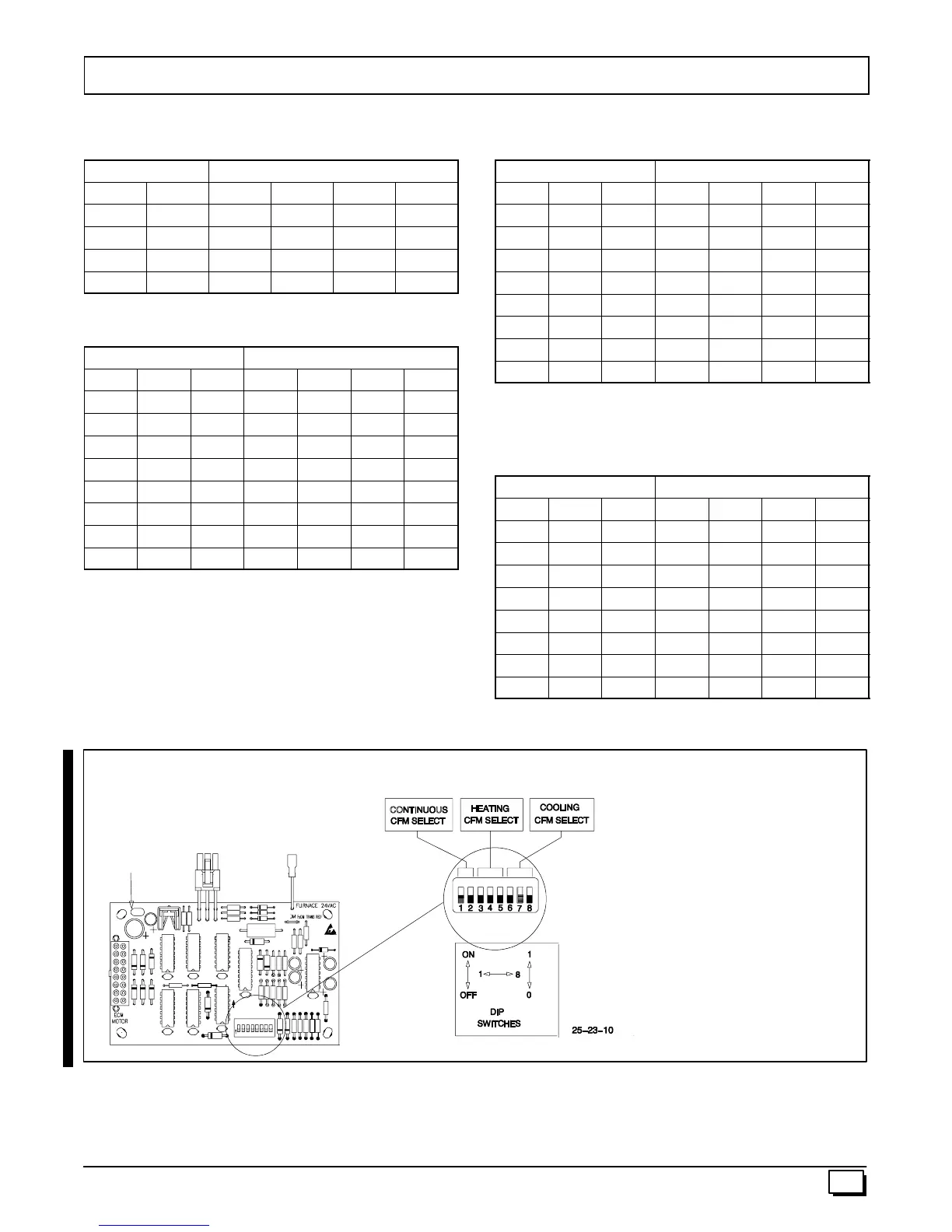

Circulation Air Blower Data - *9MPV
Heating, Cooling & Continuous Airflow Settings
Continuous Blower (CFM) @ 0.10²
²²
² Static
Switch Settings
Furnace Model
#1 #2 50K 75K 100K 125K
0* 0* 560 576 766 888
0 1 691 697 955 1008
1 0 819 825 1139 1195
1 1 948 931 1327 1373
*Factory Setting
Hi Heat Air Temperature Adjustment (°
°°
° F)**
Switch Settings
Furnace Model
#3 #4 #5 50K 75K 100K 125K
0* 0* 0* 0 0 0 0
0 0 1 +6 +3 +4 +5
0 1 0 +6 +3 +4 +5
0 1 1 +14 +6 +9 +12
1 0 0 +17 +11 +12 +13
1 0 1 -- 7 -- 4 -- 2 -- 3
1 1 0 -- 1 0 -- 6 -- 6 -- 6
1 1 1 -- 1 5 -- 4 -- 9 -- 5
*Factory setting
**Approximate air temperature change from factory setting @ 0.20²
static on high heat.
Lo Heat Air Temperature Adjustment (°
°°
° F)**
Switch Settings
Furnace Model
#3 #4 #5 50K 75K 100K 125K
0* 0* 0* 0 0 0 0
0 0 1 +4 +2 +1 +8
0 1 0 +4 +2 +1 +8
0 1 1 +10 +5 +5 +14
1 0 0 +13 +7 +8 +17
1 0 1 -- 5 -- 4 -- 3 -- 3
1 1 0 -- 8 -- 6 -- 7 -- 6
1 1 1 -- 1 6 -- 9 -- 1 1 -- 6
*Factory setting
**Approximate air temperature change from factory setting @ 0.20²
static on high heat.
Cooling (CFM) @ 0.50 ²
²²
² Static
Switch Settings
Furnace Model
#6 #7 #8 50K 75K 100K 125K
0* 0* 0* 1212 1392 2093 2082
0 0 1 1117 1197 1872 1829
0 1 0 1015 1104 1702 1798
0 1 1 914 1012 1541 1728
1 0 0 836 924 1305 1530
1 0 1 743 827 1063 1304
1 1 0 670 677 857 1103
1 1 1 593 572 751 893
*Factory setting
25--24--76
(TSIB)
