94 95
EN
1.2 LED STATUS DISPLAY
General: 50ms on
off
slow flashing
normal flashing
fast flashing
constantly on
flash sequence
(e. g. 3×)
POWER LED (green)
off System not active (power switch OFF)
constantly on System active (power switch ON)
fast flashing Radio signal is being transmitted (key pressed on the transmitter)
slow flashing Learning mode active
BATTERY LED (red)
The speed of flashing depends on the battery status.
As the battery voltage decreases the flashing frequency is increased.
off Battery OK
constantly on Battery is being charged
slow flashing Battery voltage below 3V
normal flashing Battery voltage below 2.7V
fast flashing Battery voltage below 2.4V
If the battery voltage falls below 2.1V the
remote control switches off automatically.
STATUS LED (red)
flash sequence Error code (for description see 1.9)
PUSHBUTTON LEDs (red)
off A function keys is not being pressed
on The relevant function key is being pressed
TX MINI
1.1 TECHNICAL DATA
Frequency 433MHz
Number of channels 6
Number of buttons max. 6
Transmitter output ≤ 10mW
Reaction time < 40ms
Antenna Internal
Batteries 3× Typ AA (normal or rechargeable)
IP protection rating IP 67
Dimensions 130 × 54 × 31mm
Weight 185g (including batteries)
Work area:
Range Approx. 100m (depending on surroundings)
Temperature -20°C to +50°C (depending on the battery)
Air humidity 10% - 95%
Working altitude < 2000m above NN
Housing material PC – ABS

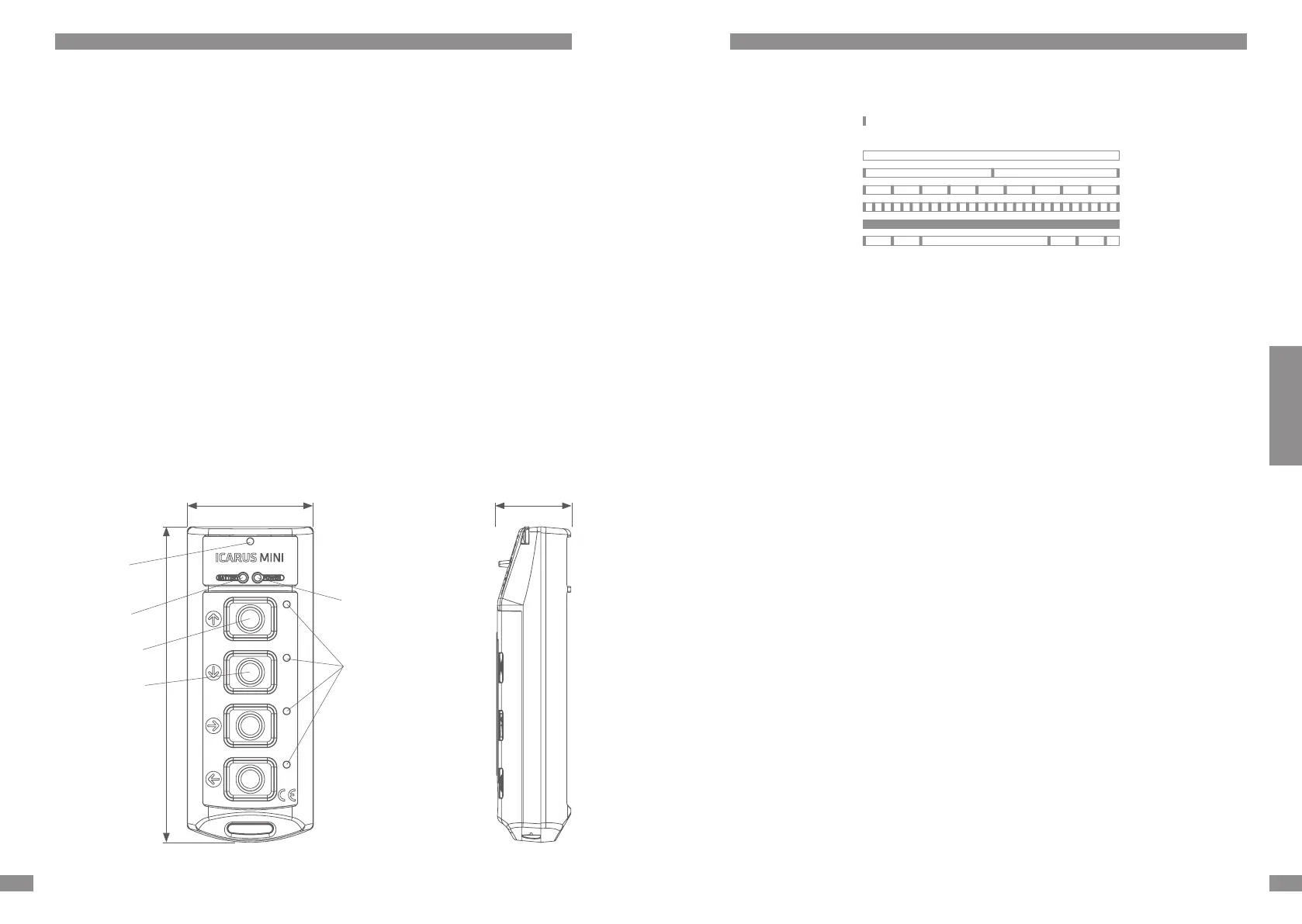

Status LED
Power LED
Battery LED
Function key 1
Pushbutton LEDs
Function key 2
TX MINITX MINI
ENENEN
54
130
31
