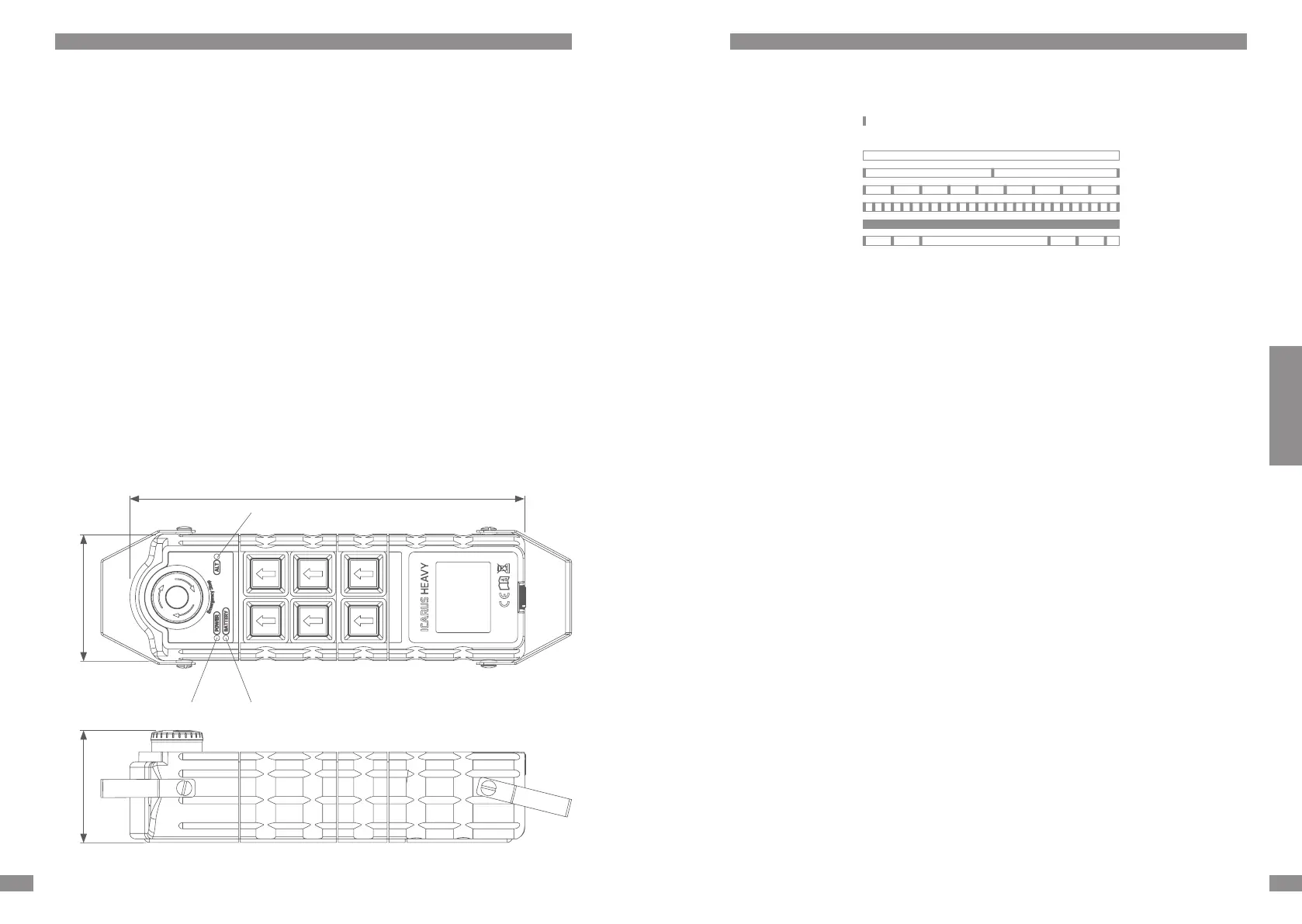

3.1 TECHNICAL DATA
Frequency 433MHz
Number of channels 6
Number of buttons max. 16
Transmitter output < 10mW
Reaction time < 40ms
Antenna Internal
Batteries 6x Typ AA (normal or rechargeable)
IP protection rating IP 54
Dimensions 218 × 70 × 62mm (6 buttons)
257 × 78 × 62mm (6 buttons with clips)
Weight 500g (including batteries)
Work area:
Range Approx. 100m (depending on surroundings)
Temperature -20°C to +50°C (depending on the battery)
Air humidity 10% - 95%
Housing material ABS
Working altitude < 2000m ü. NN
218
7062
3.2 LED STATUS DISPLAY
General: 50ms on
off
slow flashing
normal flashing
fast flashing
constantly on
flash sequence
(e. g. 3×)
POWER LED
off System not active (emergency stop switch pressed)
constantly on (green) System active (emergency stop switch pulled out)
fast flashing (green) Radio signal is being transmitted
(key pressed on the transmitter)
slow flashing (green) Learning mode active
flash sequence (red) Error
BATTERY LED
The speed of flashing depends on the battery status.
As the battery voltage decreases the flashing frequency is increased.
off Battery OK
constantly on (green) Battery is being charged
slow flashing (red) Battery voltage below 6V
normal flashing (red) Battery voltage below 5.4V
fast flashing (red) Battery voltage below 4.8V
If the battery voltage falls below 4.2V the remote control switches off automatically.
ALT LED
optional programmable
ENENEN
Power LED Battery LED
Alt LED
