102 103
RX MINIRX MINI
RX MINI
2.1 TECHNICAL DATA
Frequency 433MHz
Sensitivity -110dBm
Number of channels 6
Number of transmitters max. 24
Number of outputs 6+2 (digital)
Number of inputs 2 (digital)
Max. switching capacity 2,5 A(per output)
Reaction time < 40ms
Antenna internal or external
IP protection rating IP 67
Voltage 9-30Vdc
Energy consumption < 1W (no output active)
Max. current 10 A
Dimensions 82 × 80 × 27mm
Weight ca. 280g
Work area:
Range Approx. 100m (depending on surroundings)
Temperature -30°C bis +70°C
Air humidity 10% - 95%
Housing material ABS
Working altitude < 2000m above NN
2.2 LED-STATUSANZEIGE
General: 50ms on
off
slow flashing
normal flashing
fast flashing
constantly on
flash sequence
(e. g. 3×)
LED 1
off No power supply
constantly on (green) System activated
(emergency stop switch of the transmitter not
pressed (TX HEAVY) or the power switch is ON (TX MINI))
slow flashing (green) System deactivated (emergency stop switch of
the transmitter pressed (TX HEAVY) or the
power switch is OFF (TX MINI))
flash sequence (red) Error (for description see 2.9)
fast flashing (green) Learning mode active (description see 2.11)
LED 2
on (green) Radio signal received (key pressed on the transmitter)
on (red) Radio signal not received (incorrect transmitter ID)
on (green) Transmitter successfully logged in
(in learning mode when key is pressed)
on (red) Transmitter successfully logged of
(in learning mode when key is pressed)
off No radio signal

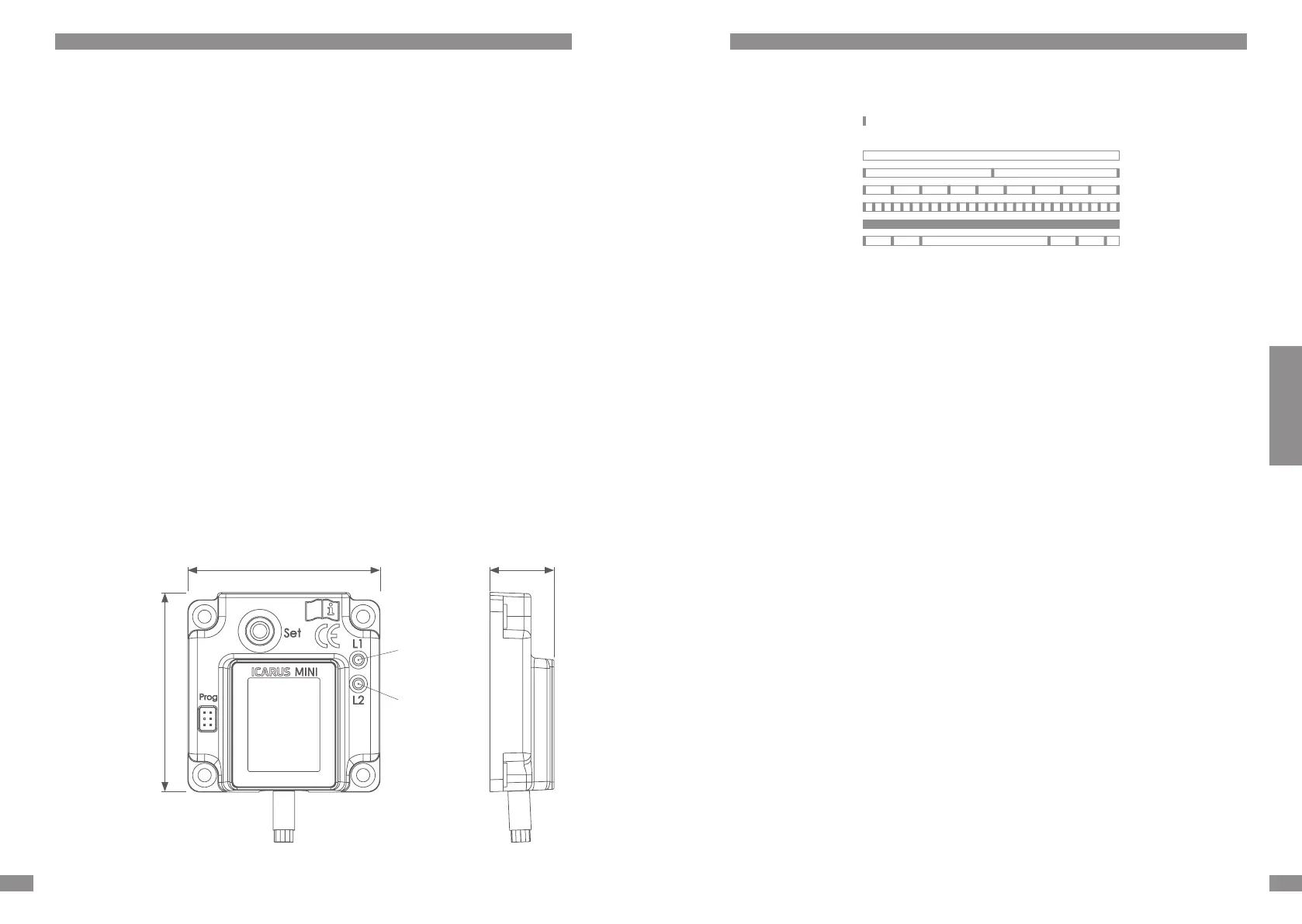

LED 1
LED 2
ENENEN
80 27
82
