ICP iDRY - Flow Diagram

iDRY Series Heatless Regenerated Dryers: IOM10003-C (Rev. A) 9
liquid water. If contaminated the desiccant material will lose its adsorption proprieties. Moreover during operation, the
desiccant releases solid particles (as fine powder) that are particularly abrasive and can be extremely damaging to
downstream components and users.
For this reason, it is highly recommended that the dryer is equipped with two high-efficiency iPUR filters:
 0.01 micron filtration grade coalescing pre-filter with differential pressure gauge and either a float drain or iMAT
 1.0 micron filtration grade particulate post-filter (differential gauge optional) and with a manual drain.

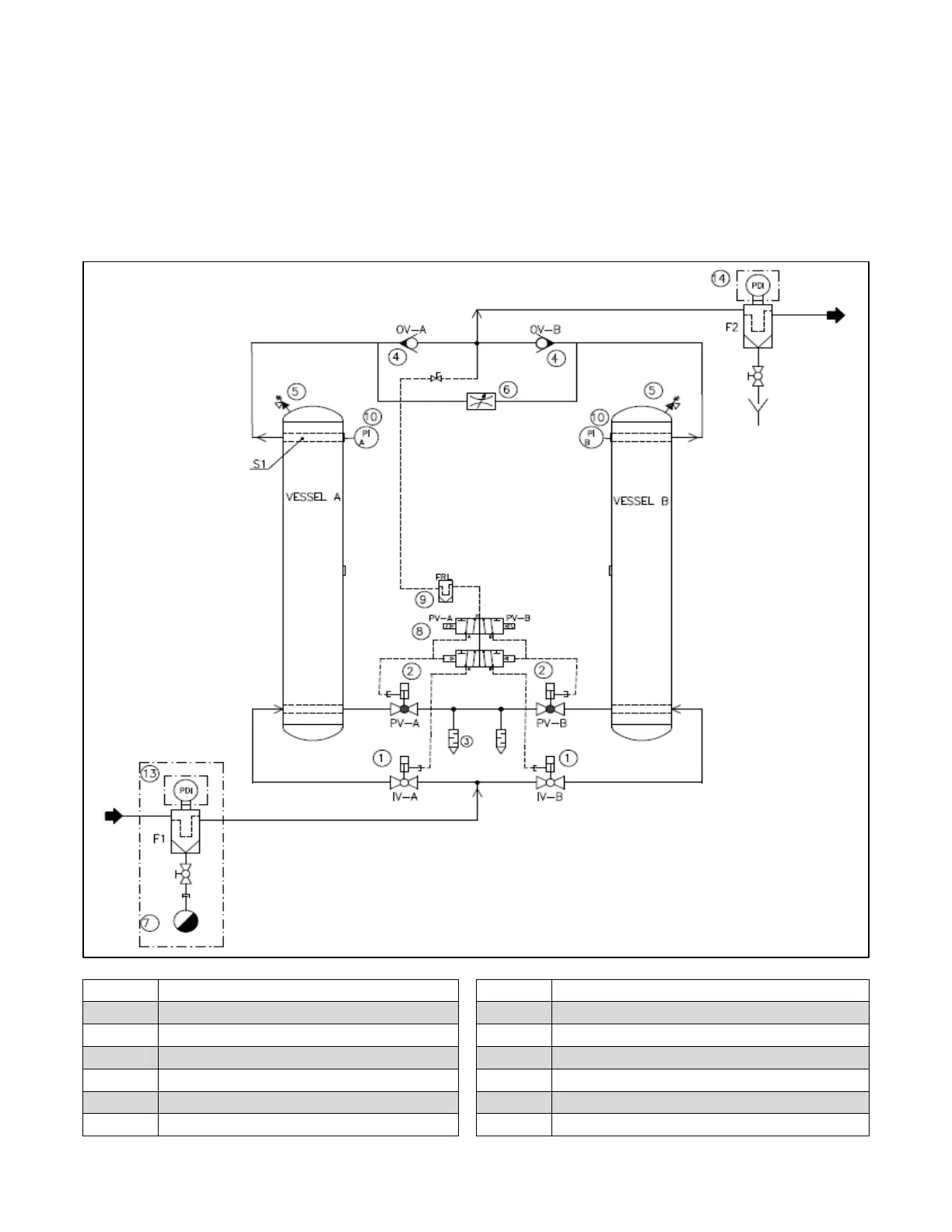

3.4 Flow Diagram
Number
Name
Number
Name
1
Inlet Valve (Normally Open)
7
Optional iMAT Zero Loss Drain
2
Purge Exhaust Valve (Normally Closed)
8
Solenoid Block
3
Exhaust Silencer
9
Pilot Air Filter and Regulator
4
Outlet Check Valves
10
Vessel Pressure Gauge
5
Pressure Relief Valve
13
Pre-filter with Float Drain
6
Purge Control Valve
14
Post-filter with Manual Drain
