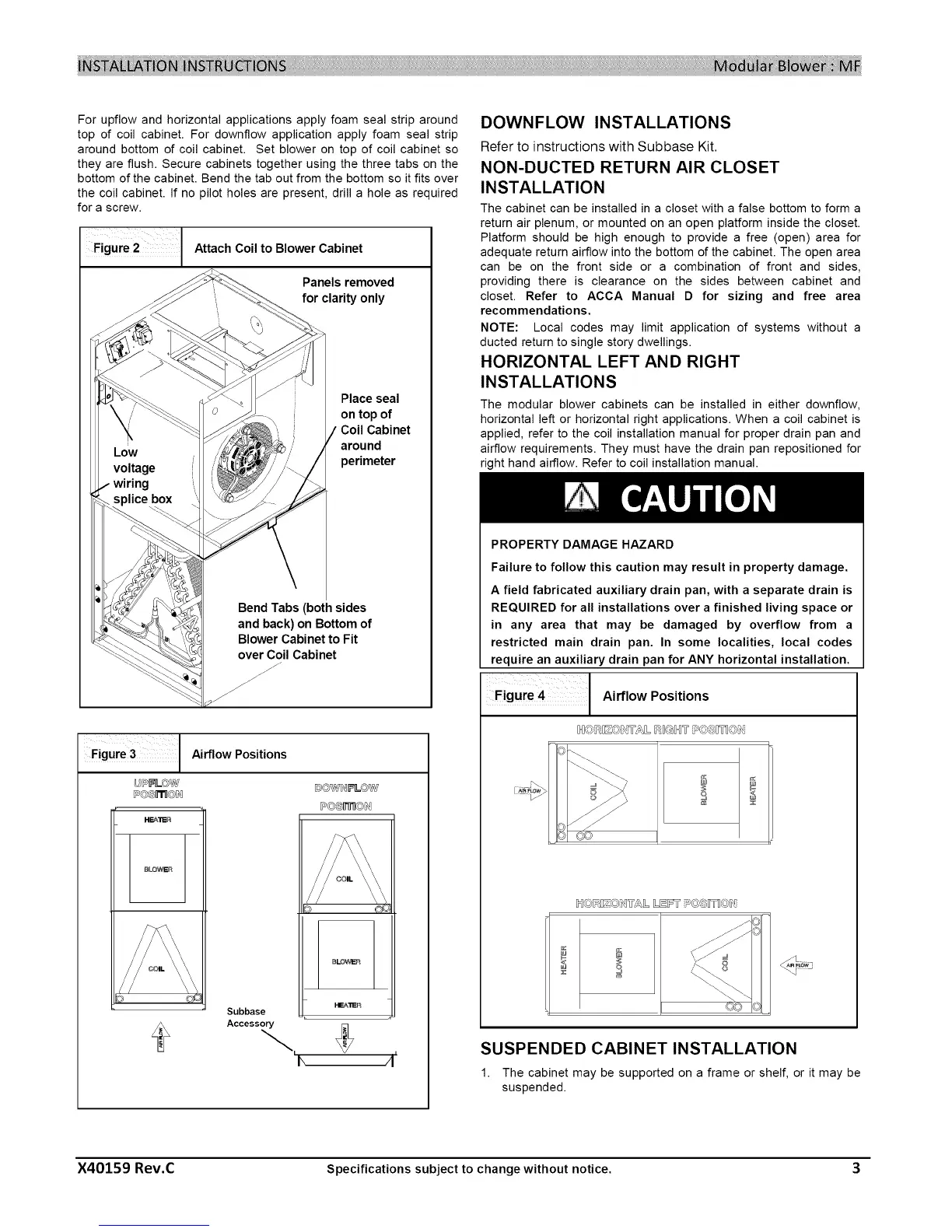

ICP MF080014C User Manual

For upflow and horizontal applications apply foam seal strip around
top of coil cabinet. For downflow application apply foam seal strip
around bottom of coil cabinet. Set blower on top of coil cabinet so
they are flush. Secure cabinets together using the three tabs on the
bottom of the cabinet. Bend the tab out from the bottom so it fits over
the coil cabinet. If no pilot holes are present, drill a hole as required
for a screw.
Figuie 2
AttachCoil to BlowerCabinet
Panelsremoved
for clarity only
Placeseal
on top of
CoilCabinet
around
perimeter
J
Airflow Positions
F-
I'EA"I_J_
Subbase
Accessory
4
t
4
DOWNFLOW INSTALLATIONS
Refer to instructions with Subbase Kit.
NON-DUCTED RETURN AIR CLOSET
INSTALLATION
The cabinet can be installed in a closet with a false bottom to form a
return air plenum, or mounted on an open platform inside the closet.
Platform should be high enough to provide a free (open) area for
adequate return airflow into the bottom of the cabinet. The open area
can be on the front side or a combination of front and sides,
providing there is clearance on the sides between cabinet and
closet. Refer to ACCA Manual D for sizing and free area
recommendations.
NOTE: Local codes may limit application of systems without a
ducted return to single story dwellings.
HORIZONTAL LEFT AND RIGHT
INSTALLATIONS
The modular blower cabinets can be installed in either downflow,
horizontal left or horizontal right applications. When a coil cabinet is
applied, refer to the coil installation manual for proper drain pan and
airflow requirements. They must have the drain pan repositioned for
right hand airflow. Refer to coil installation manual.
PROPERTY DAMAGE HAZARD
Failure to follow this caution may result in property damage.
A field fabricated auxiliary drain pan, with a separate drain is
REQUIRED for all installations over a finished living space or
in any area that may be damaged by overflow from a
restricted main drain pan. In some localities, local codes
require an auxiliary drain pan for ANY horizontal installation.
Figure4 J Airflow Positions
i
I
SUSPENDED CABINET INSTALLATION
1. The cabinet may be supported on a frame or shelf, or it may be
suspended.
X40159 Rev.C Specifications subject to change without notice. 3
