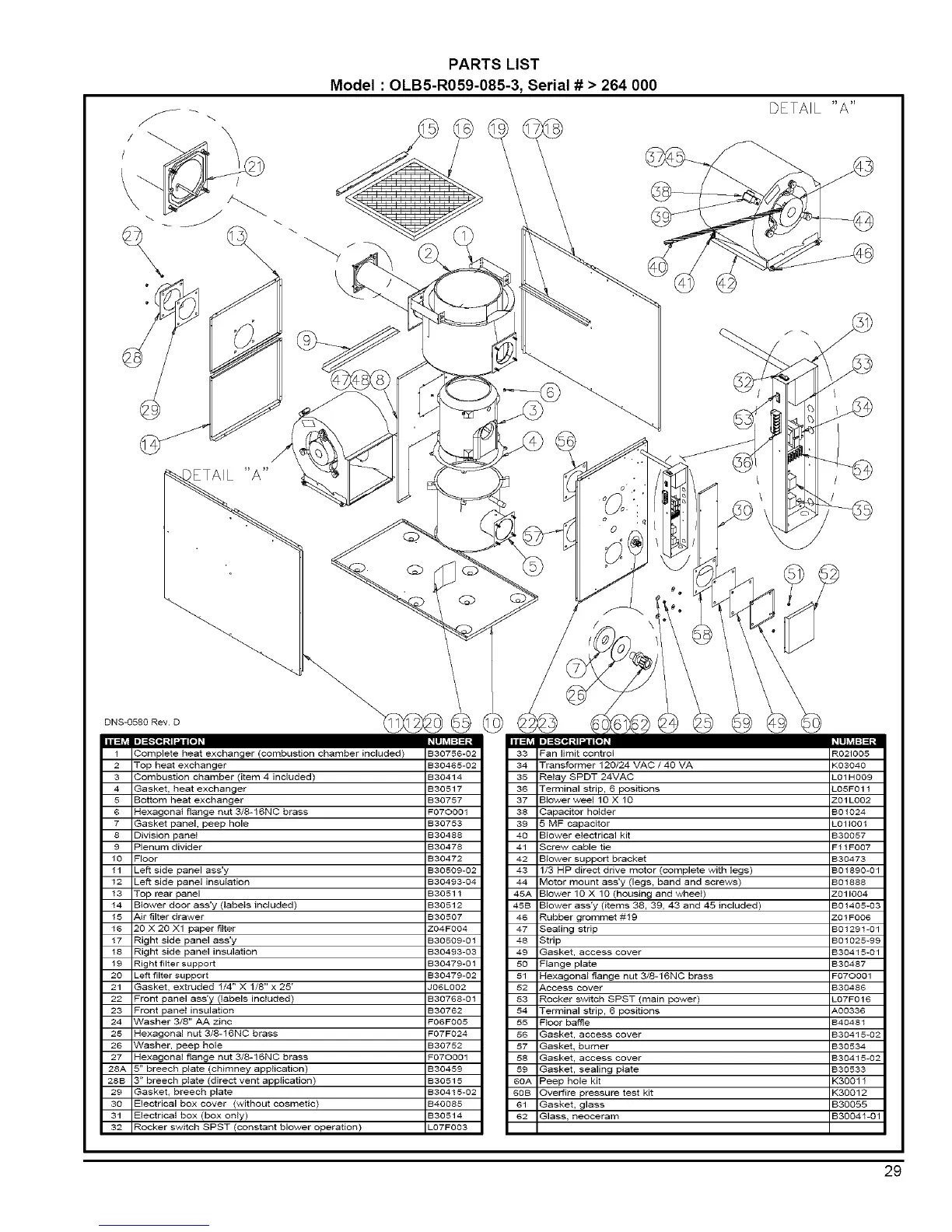

PARTS LIST
Model : OLB5-R059-085-3, Serial # > 264 000
/
/
DETAIL "A"
DNS-0580 Rev. D
@
C>
Complete heat exchanger (combustion chamber included)
2 Top heat exchanger B30465-02
3 Combustion chamber (item 4 included) 330414
4 Gasket, heat exchanger 330517
5 Bottom heat exchanger B30757
6 Hexagonal flange nut 3/8-16NC brass =070001
7 Gasket panel, peep hole B30753
8 Division panel B30488
9 Plenum divider B30478
10 Floor B30472
11 Left side panel ass'y 330509-02
12 Left side panel insutation B30493-04
13 Top rear panel 330511
14 Blower door ass'y (labels included) 330512
15 Air filter drawer 330507
16 20 X 20 X1 paper filter Z04F004
17 Right side panel ass'y 330509-01
18 Right side panel insulation 330493-03
19 Right filter support 330479-01
20 Left filter support 330479-02
21 Gasket, extruded 1/4" X 1/8" x 25' J06L002
22 Front panel ass'y (labels included) 330768-01
23 Front panel insulation 330762
24 Washer 3/8" AA zinc =06F005
25 Hexagonal nut 3/8-16NC brass =07F024
26 Washer, peep hole B30752
27 Hexagonal flange nut 3/8-16NC brass =070001
28A 5" breech plate (chimney application) 330459
28B 3" breech ptate (direct vent application) 330515
29 Gasket, breech plate 330415-02
30 Electrical box cover (without cosmetic) 340085
31 E_ectricat box (box only) 330514
32 Rocker switch SPST (constant blower operation) _07F003
Fan limit control
34 Transformer 120/24 VAC / 40 VA K03040
35 Relay SPDT 24MAC L01H009
36 Terminal strip, 8 positions L05F011
37 BIowerweel 10 X 10 Z01L002
38 Capacitor holder B01024
39 5 MF capacitor L01 t001
40 Blower electrical kit B30057
41 Screw cable tie F11F007
42 Blower support bracket B30473
43 1/3 HP direct drive motor (complete with legs) B01890-01
44 Motor mount ass'y (legs, band and screws) B01888
45A Blower 10 X 10 (housing and wheel) Z011004
45B Blower ass'y (items 38, 39, 43 and 45 included) B01405-03
46 Rubber grommet #19 Z01F006
47 Sealing strip B01291-01
48 Strip B01025-99
49 Gasket, access cover B30415-01
50 Flange plate B30487
51 Hexagonal flange nut 3/8-16NC brass F070001
52 Access cover B30486
53 Rocker switch SPST (main power) L07F016
54 Terminal strip, 8 positions A00336
55 Floor baffle B40481
56 Gasket, access cover B30415-02
57 Gasket, burner B30534
58 Gasket, access cover B30415-02
59 Gasket, sealing plate B30533
60A Peep hole kit K30011
60B Overfire pressure test kit K30012
61 Gasket, glass B30055
62 Glass, neoceram B30041-01
