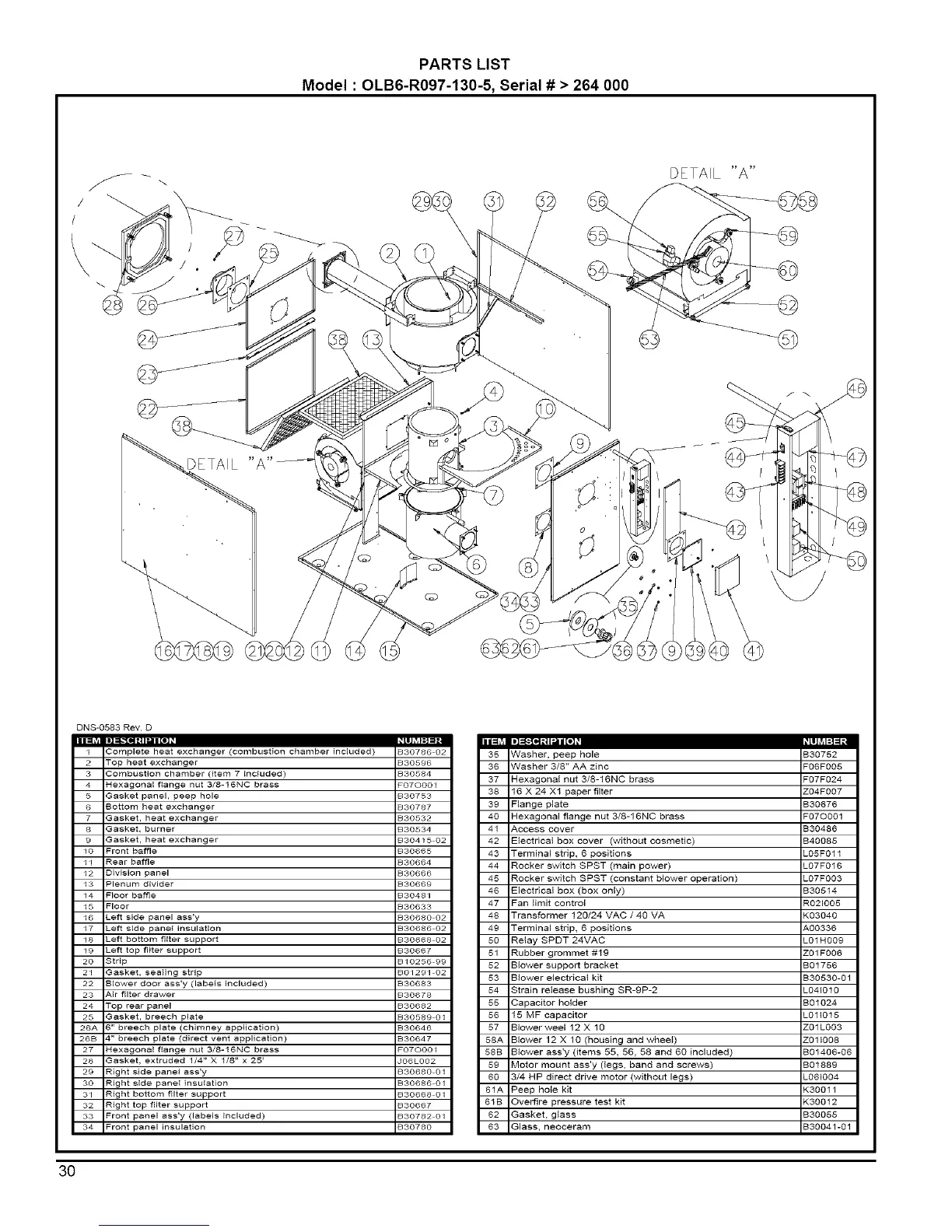

PARTS LIST
Model : OLB6-R097-130-5, Serial # > 264 000
/
/
\
DNS-0583 Rev. D
_t|li_Ji:t ::i
Complete heat exchanger (combustion chamber included)
2 Top heat exchanger B30596
3 Combustion chamber (item 7 included) B30584
4 Hexagonal flange nut 3/8-16NC brass F070001
5 Gasket panel, peep hole B30753
6 Bottom heat exchanger B30787
• Gasket, heat exchanger B30532
8 Gasket, burner B30534
9 Gasket, heat exchanger B30415 02
10 =ront baffle B30665
1 I Rear baffle B30664
12 Division panel B30666
13 #lenum divider B30669
14 =loot baffle B3048 I
15 =loor B30633
16 _eft side panel ass'y B30680 02
17 _eft side panel insulation B30686 02
18 _eft bottom fitter support B30668 02
19 _eft top filter support B30667
20 Strip B 10256 99
21 Gasket, sealing strip B01291 02
22 Slower door ass'y (labels included) B30683
23 &it filter drawer B30678
24 "Fop rear panel B30682
25 Gasket, breech ptate B30589 01
26A B" breech plate (chimney application) B30646
26B 4" breech plate (direct vent application) B30647
27 -{exagonat flange nut 3/8-t6NC brass F070001
28 Gasket, extruded 1/4" X 1/8" x 25' 306L002
29 Right side panel ass'y B30680 01
30 Right side panet insulation B30686 01
31 Right bottom filter support B30668 01
32 Right top filter support B30667
33 =ront panel ass'y (labels included) B30782 01
34 =font panel insulation B30780
=)=!_"(04:_I;,,itai[el _
#Vasher, peep hole
36 #Vasher 3/8" AA zinc F06F005
37 Hexagonal nut 3/8-16NC brass F07FO24
38 16 X 24 Xl paper filter Z04F007
39 Flange plate B30676
40 Hexagonal flange nut 3/8-16NC brass FO700Ol
41 _,ccess cover B30486
42 Electrical box cover (without cosmetic) B40085
43 Terminal strip, 6 positions LO5F011
44 Rocker switch SPST (main power) L07FO16
45 Rocker switch SPST (constant blower operation) L07FO03
46 Electrical box (box only) B30514
47 Fan limit control R021005
48 Transformer 120/24 VAC / 40 VA KO3O4O
49 Terminal strip, 6 positions Ago336
50 Relay SPDT 24VAC L01HOO9
51 Rubber grommet #19 ZOl F0O6
52 Slower support bracket B01756
53 Slower electrical kit B30530-01
54 Strain release bushing SR-gP-2 L041010
55 Capacitor holder B01024
56 15 MF capacitor L01tO15
57 Slower weet 12 X 10 ZO1LO03
58A Slower 12 X 10 (housing and wheel) ZOll008
58B Slower ass'y (items 55, 56, 58 and 60 included) B01406-06
59 Motor mount ass'y (legs, band and screws) B01889
60 3/4 HP direct drive motor (without legs) L061O04
61A _eep hole kit K30011
61B Overfire pressure test kit K30012
62 Gasket, glass B30055
63 Glass, neoceram B30041-01
