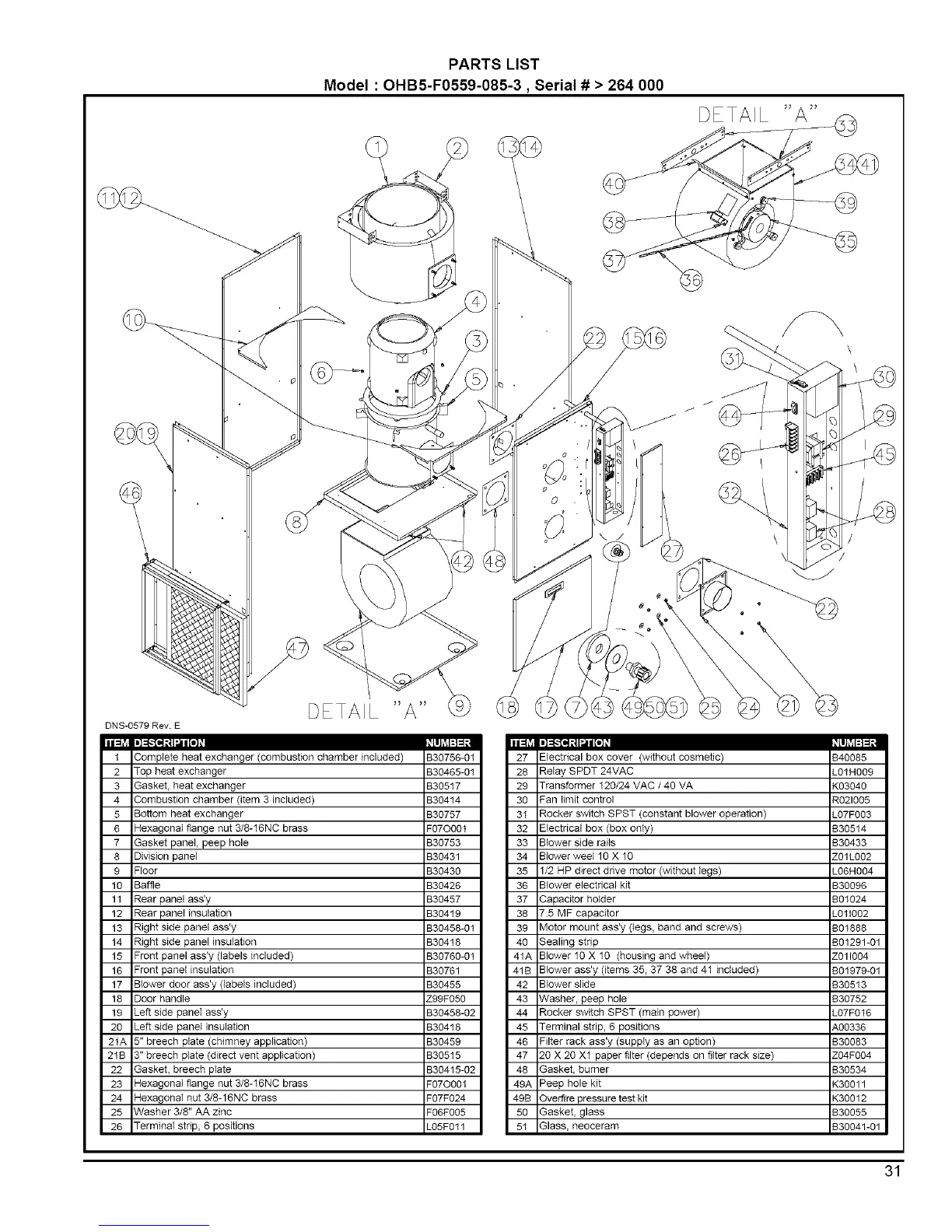

PARTS LIST
Model : OHB5-F0559-085-3, Serial # > 264 000
DETAIL "A"
@
\
DNS-0579 Rev. E
DETAIL "A"
i = ?Jill :_._N _tI'J I [I]_ _IIl_Jl:l=:
2 Top heat exchanger B30465-01
3 Gasket, heat exchanger B30517
4 .Combustion chamber (item 3 included) B30414
5 Bottom heat exchanger B30757
6 qexagonal flange nut 3/8-16NC brass F070001
7 Gasket panel, peep hole B30753
8 Division panel B30431
9 =loor B30430
10 Baffle B30426
11 Rear panel ass'y B30457
12 Rear paneI insulation B30419
13 Right side panel ass'y B30458-01
14 Right side panel insulation B30418
15 =ront panel ass'y (labels included) B30760-01
16 --rent panel insulation B30761
17 Blower door ass'y (labels included) B30455
18 Door handle Z99F050
19 _eft side panel ass'y B30458-02
20 _eft side panel insulation B30418
2tA 3" breech ptate (chimney application) B30459
21B 3" breech plate (direct vent application) B30515
22 Gasket, breech plate B30415-02
23 qexagonal flange nut 3/8-16NC brass F070001
24 qexagonal nut 3/8-1BNC brass F07F024
25 Masher 3/8" AA zinc F06F005
26 Terminal strip, 6 positions L05F011
Electrical box cover (without cosmetic)
28 ReIay SPDT 24VAC L01H009
29 Transformer 120/24 VAC / 40 VA K03040
30 Fan limit control R021005
31 Rocker switch SPST (constant blower operation) L07F003
32 Electrical box (box only) B30514
33 Blower side rails B30433
34 Blower wee110 X 10 Z01L002
35 1/2 HP direct drive motor (without tegs) L06H004
36 Blower electrical kit B30096
37 Capacitor holder B01024
38 7.5 MF capacitor L01t002
39 Motor mount ass'y (legs, band and screws) B01888
40 Sealing strip B01291-01
41A Blower 10 X 10 (housing and wheel) Z011004
41B Blower ass'y (items 35, 37 38 and 41 included) B01979-01
42 Blower slide B30513
43 Washer, peep hole B30752
44 Rocker switch SPST (main power) L07F016
45 Terminal strip, 6 positions A00336
46 Filter rack ass'y (suppty as an option) B30083
47 20 X 20 Xl paper filter (depends on filter rack size) Z04F004
48 Gasket, burner B30534
49A Peep hole kit K30011
49B Overfire pressure test kit K30012
50 Gasket, glass B30055
51 Glass, neoceram B30041-01
