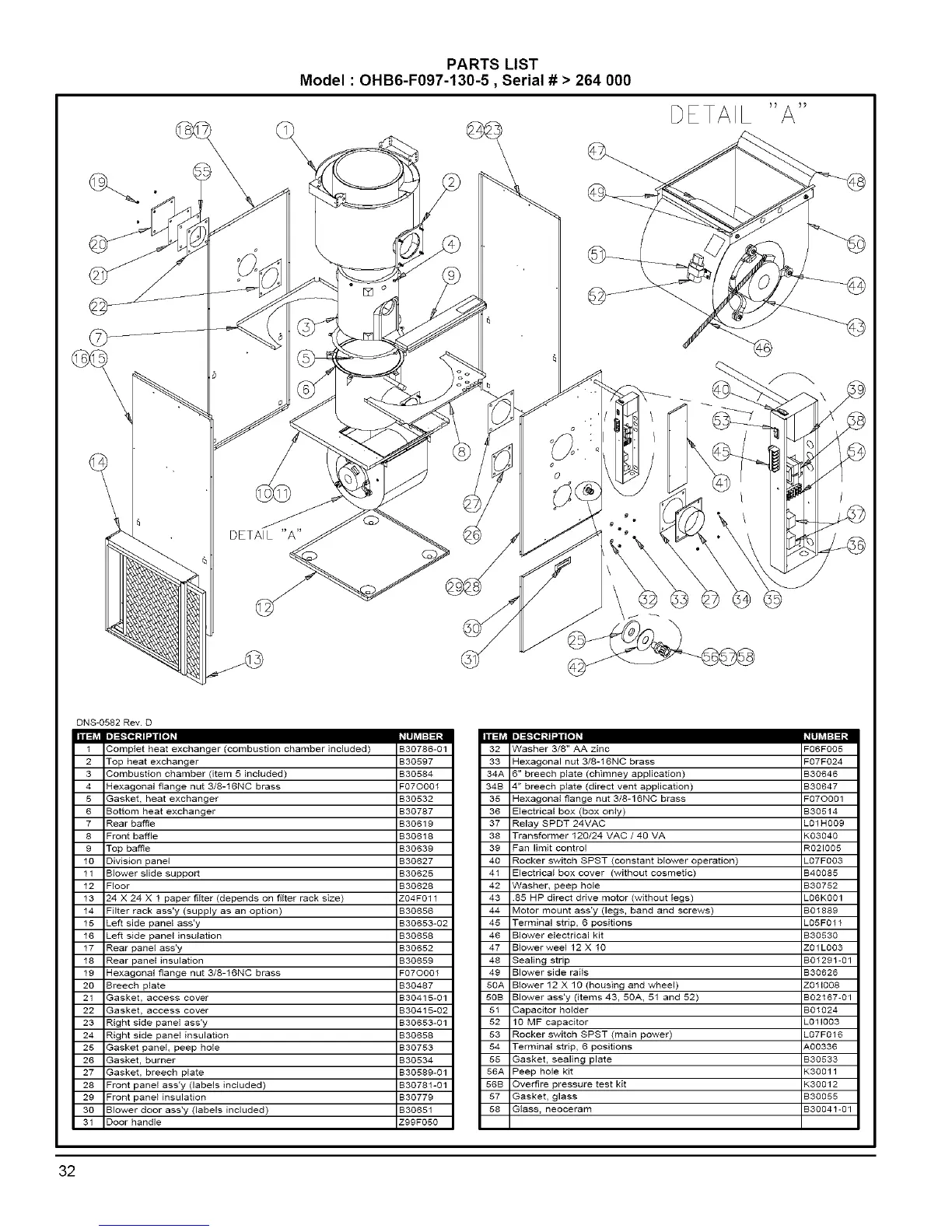

PARTSLIST
Model : OHB6-F097-130-5, Serial # > 264 000
DETAIL "A
o
0
o
DNS-0582 Rev. D
I|hTil={ =_;=]=l.',[D!;.|I;.ilII[ei
Complet heat exchanger (combustion chamber included)
2 Top heat exchanger B30597
3 Combustion chamber (item 5 included) B30584
4 Hexagonal flange nut 3/8-18NC brass F070001
5 Gasket, heat exchanger B30532
6 Bottom heat exchanger B30787
7 Rear baffle B30619
8 Front baffle B30618
9 Top baffle B30639
10 Division panel B30627
11 Blower slide support B30625
12 Floor B30628
13 24 X 24 X I paper filter (depends on filter rack size) Z04FOl 1
14 Filter rack ass'y (supply as an option) B30656
15 Left side panel ass'y B30653-02
16 Left side panel insulation B30658
17 Rear panel ass'y B30652
18 Rear panel insulation B30659
19 Hexagonal flange nut 3/8-18NC brass F070001
20 Breech plate B30487
21 Gasket, access cover B304t5-0t
22 Gasket, access cover B30415-02
23 Right side panel ass'y B30653-0t
24 Right side panel insulation B30658
25 Gasket panel, peep hole B30753
26 Gasket, burner B30534
27 Gasket, breech plate B30589-0t
28 Front panel ass'y (labels included) B30781-0t
29 Front panel insulation B30779
30 Blower door ass'y (labels included) B30651
31 Door handle Z99FO50
_ [|JiTJl=] =i:Is]=i-"[D!;.ltaII [eJ
Washer 3/8" AA zinc
33 Hexagonal nut 3/8-18NC brass F07FO24
34A 6" breech plate (chimney application) B30646
34B 4" breech plate (direct vent application) B30647
35 Hexagonal flange nut 3/8-16NC brass F070001
36 Electrical box (box only) B30514
37 Relay SPDT 24VAC L01H009
38 Transformer 120/24 VAC / 40 VA K03040
39 Fan limit control RO21005
40 Rocker switch SPST (constant blower operation) L07FOO3
41 Electrical box cover (without cosmetic) B40085
42 Washer, peep hole B30752
43 .85 HP direct drive motor (without legs) LO6KOOt
44 Motor mount ass'y (legs, band and screws) B01889
45 Terminal strip, 6 positions L05F011
46 Blower electrical kit B30530
47 Blower weel 12 X 10 ZO1L0O3
48 Sealing strip B01291-0t
49 Blower side rails B30626
50A Blower 12 X 10 (housing and wheel) Z01t008
5OB Blower ass'y (items 43, 5OA, 51 and 52) B02167-0t
51 Capacitor holder B01024
52 10 MF capacitor L011003
53 Rocker switch SPST (main power) L07FO16
54 Terminal strip, 6 positions A00336
55 Gasket, sealing plate B30533
56A Peep hole kit K30011
56B Overfire pressure test kit K30012
57 Gasket, glass B30055
58 Glass, neoceram B30041-01
32
