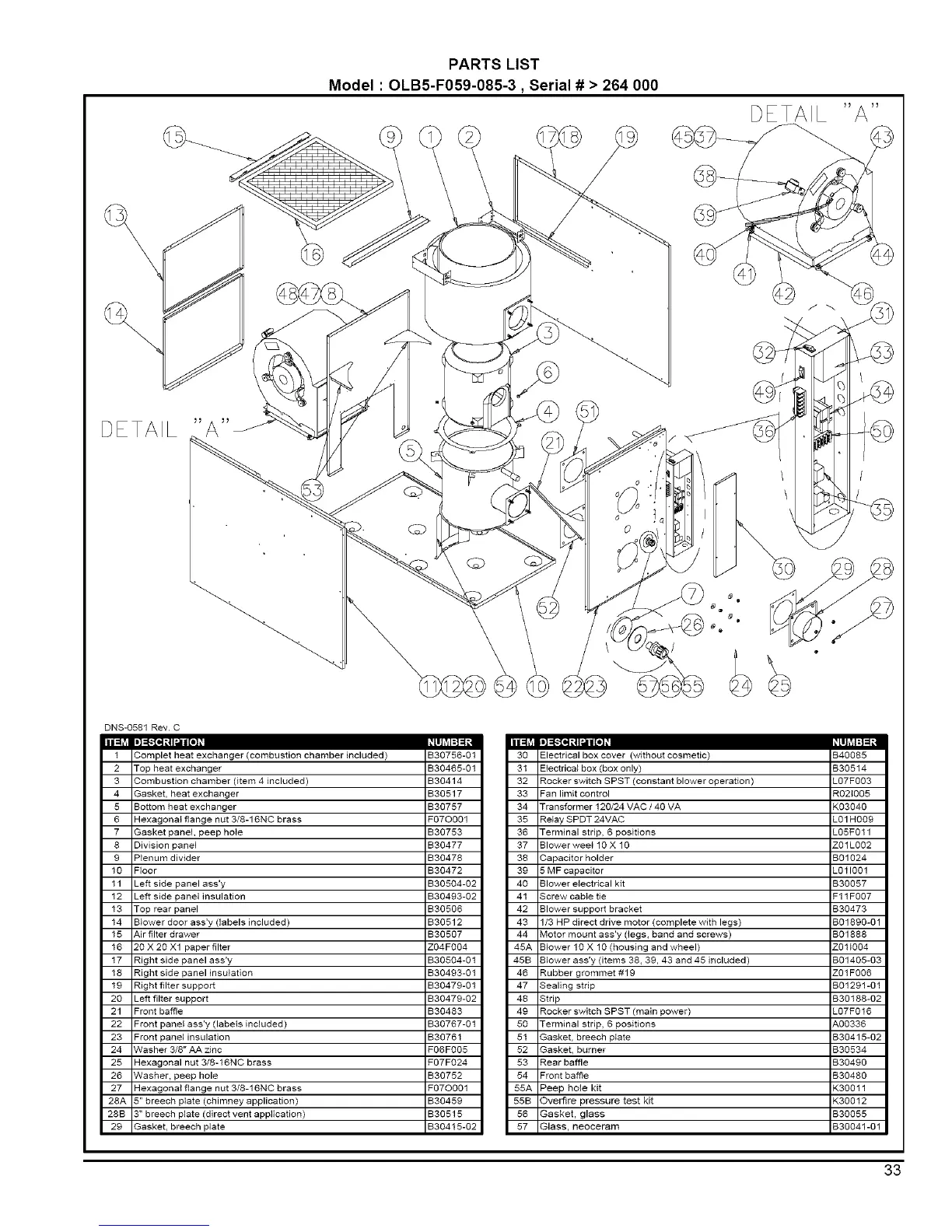

PARTS LIST
Model : OLB5-F059-085-3, Serial # > 264 000
DETAIL "A"
DETAIL
@
DNS-0581 Rev. C
_t|J=vJl;t=:
Complet heat exchanger (combustion chamber included) Electrical box cover (without cosmetic)
2 Top heat exchanger 330465-01 34 Electrical box (box only) B30544
3 Combustion chamber (item 4 included) 330414 32 Rocker switch SPST (constant blower operation) LO7F003
4 Gasket, heat exchanger 330517 33 =an limit control R02tOO5
5 Bottom heat exchanger 330757 34 Transformer 120/24 VAC / 40 VA K03040
6 Hexagonal flange nut 3/8-46NC brass =070001 35 Relay SPDT 24VAC LO4 H009
7 Gasket panel, peep hole 330753 36 Terminal strip, 6 positions LOSF041
8 Division panel 330477 37 Blower weet 10 X 10 ZO4LO02
9 Plenum divider 330478 38 Sapacitor holder BO4024
40 Floor 330472 39 5 MF capacitor LO41O01
41 Left side panel ass'y 330504-02 40 Blower electrical kit 330057
42 Left side panel insulation 330493-02 44 Screw cable tie F14 Fog7
43 Top rear panel 330506 42 Blower support bracket 330473
14 Blower door ass'y (labels included) 330512 43 1/3 HP direct drive motor (complete with legs) B01890-01
15 Air filter drawer 330507 44 _otor mount ass'y (legs, band and screws) B01888
16 20 X 20 Xl paper filter 7-04F004 45A BIowerl0XlO(housingandwheel) ZOltOO4
17 Right side panel ass'y 330504-01 45B Blower ass'y (items 38, 39, 43 and 45 included) B01405-g3
48 Right side panel insulation 330493-04 46 Rubber grommet #49 ZO4 Fog6
49 Rightflltersupport 330479-04 47 3ealing strip B01291-g4
20 Left filter support 330479-02 48 3trip B30488-g2
21 Front baffle 330483 49 Rocker switch SPST (main power) LO7F046
22 Front panel ass'y (labels included) 330767-01 50 Terminal strip, 6 positions A00336
23 Front panel insulation 330764 51 Basket, breech p_ate 330415-02
24 Washer 3/8"AA zinc =O6F005 52 Basket, burner 330534
25 Hexagonal nut 3/8-46NC brass =O7F024 53 Rear baffle 33049g
26 Washer, peep hole 330752 54 =font baffte 33048g
27 Hexagonal flange nut 3/8-16NC brass =070001 55A 3eep hole kit K30041
28A 5" breech plate (chimney application) 330459 55B Dverfire pressure test kit K30042
283 3" breech plate (direct vent application) 330515 56 Gasket, glass B30055
29 Gasket, breech plate 330445-02 57 Glass, neoceram B3g041-O1
33
