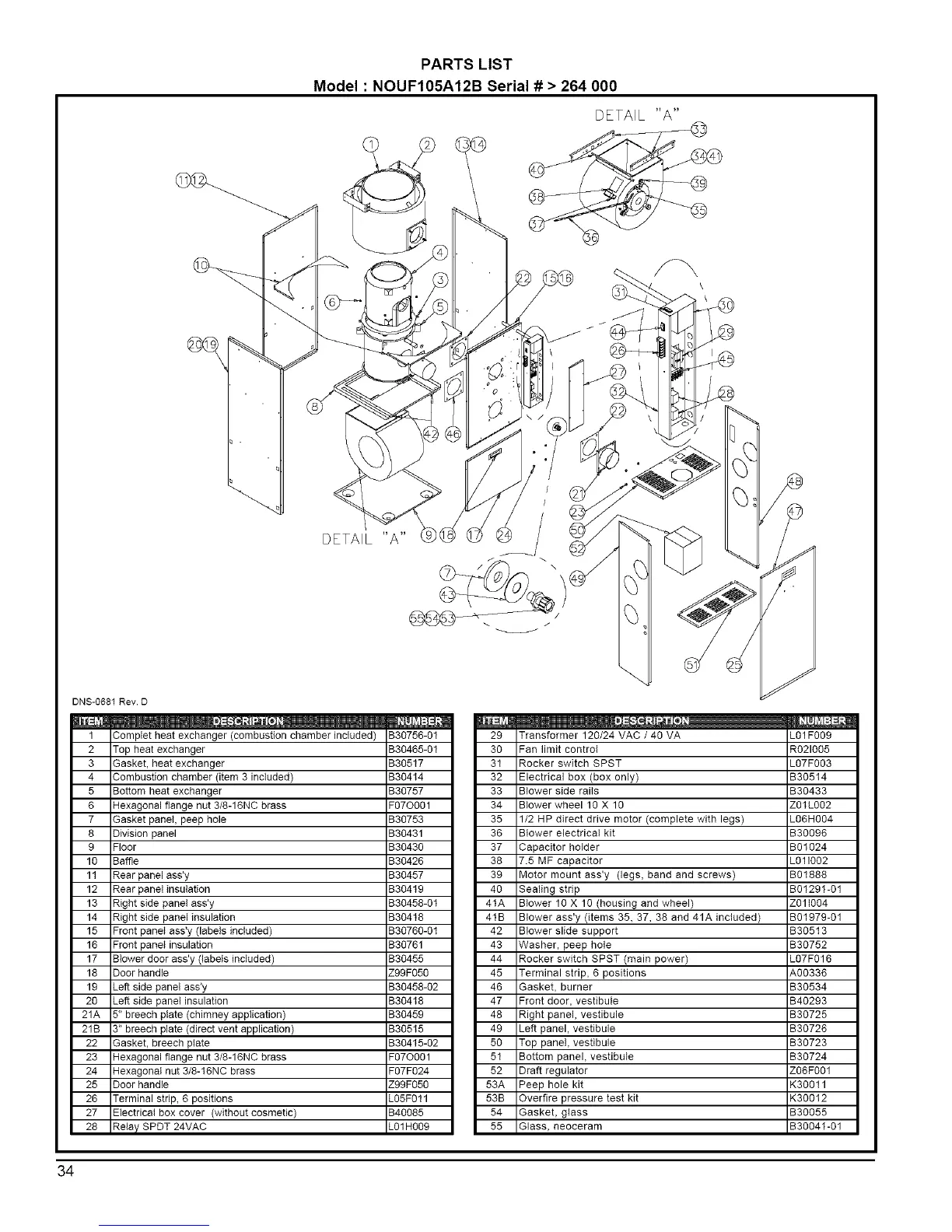

PARTS LIST
Model : NOUF105A12B Serial # > 264 000
DETAIL "A"
\
DNS-0681Rev. D
1 Somplet heat exchanger (combustion chamber included)
2 Top heat exchanger
3 Sasket, heat exchanger
4 Sombustion chamber (item 3 included)
5 Bottom heat exchanger
6 Hexagonal flange nut 3/8-16NC brass
7 Sasket panel, peep hole
8 Division panel
9 Floor
10 Baffle
11 Rear panel ass'y
12 Rear panel insulation
13 Right side panel ass'y
14 Right side panel insulation
15 Front panel ass'y (labels included)
16 Front panel insulation
17 Blower door ass'y (labels included)
18 Door handle
19 _eft side panel ass'y
20 _eft side panel insulation
21A 5" breech plate (chimney application)
21B 3" breech plate (direct vent application)
22 Gasket, breech plate
23 Hexagonal flange nut 3/8-16NC brass
24 Hexagonal nut 3/8-16NC brass
25 Door handle
26 Terminal strip, 6 positions
27 Electrical box cover (without cosmetic)
28 Relay SPDT 24VAC
B30756-01
B30465-01
B30517
B30414
B30757
F070001
B30753
B30431
B30430
B30426
B30457
B30419
B30458-01
B30418
B30760-01
B30761
B30455
Z99F050
B30458-02
B30418
B30459
B30515
B30415-02
F070001
F07F024
Z99F050
L05F011
B40085
L01HO09
29 Transformer 120/24 VAC / 40 VA _01F009
30 Fan limit control R021005
31 Rocker switch SPST _07FOB3
32 Electrical box (box only) B30514
33 Blower side rails B30433
34 Blower wheel 10 X 10 _Z01L002
35 1/2 HP direct drive motor (complete with legs) _06H004
36 Blower electrical kit B30096
37 Capacitor holder B01024
38 7.5 MF capacitor _011002
39 Motor mount ass'y (legs, band and screws) B01888
40 Sealing strip B01291-01
41A Blower 10 X 10 (housing and wheel) _z01t004
41B Blower ass'y (items 35, 37, 38 and 41A included) B01979-01
42 Blower slide support B30513
43 Washer, peep hole B30752
44 Rocker switch SPST (main power) _07F016
45 Terminal strip, 6 positions _,00336
46 Gasket, burner B30534
47 Front door, vestibule B40293
48 Right panel, vestibule B30725
49 Left panel, vestibule B30726
50 Top panel, vestibule B30723
51 Bottom panel, vestibule B30724
52 Draft regulator _Z06F001
53A Peep hole kit <30011
53B Overfire pressure test kit <30012
54 Gasket, glass B30055
55 Glass, neoceram B30041-01
34
