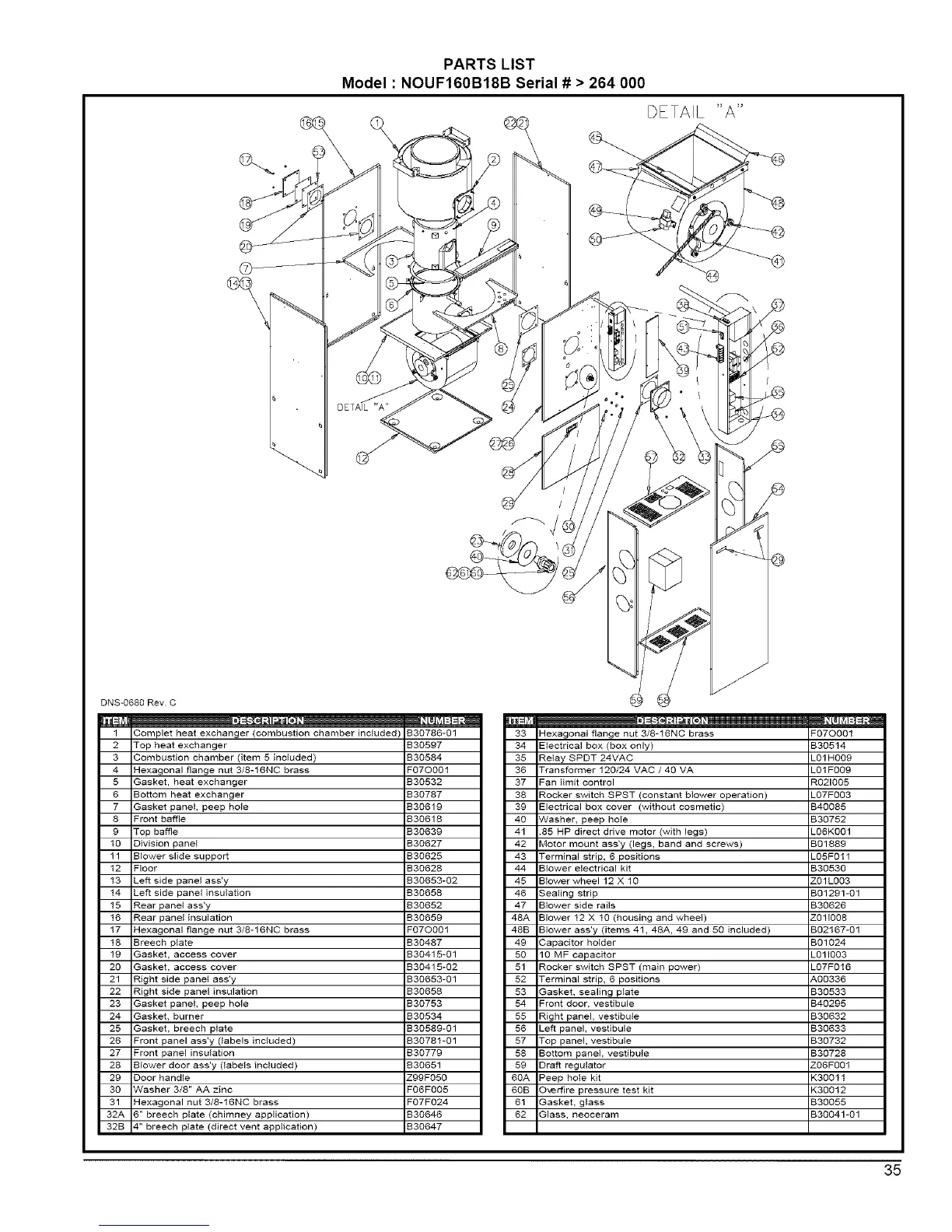

PARTSLIST
Model : NOUF160B18B Serial # > 264 000
DETAIL "A"
\
DNS-0680 Rev C
1 Complet heat exchanger (combustion chamber included) B30786-01 33 Hexagonal flange nut 3/8-16NC brass
2 Top heat exchanger B30597 34 Electrical box (box only)
3 Combustion chamber (item 5 included) B30584 35 Relay SPDT 24VAC
4 Hexagonal flange nut 3/8-16NC brass FO700Of 36 Transformer 120/24 VAC / 40 VA
5 Gasket, heat exchanger B30532 37 Fan limit control
6 Bottom heat exchanger B30787 38 Rocker switch SPST (constant blower operation)
7 Gasket panel, peep hole B30619 39 Electrical box cover (without cosmetic)
8 Front baffle B30618 40 Washer, peep hole
9 Top baffle B30639 41 .85 HP direct drive motor (with legs)
10 Division panel B30627 42 Motor mount ass'y (legs, band and screws)
11 Blower slide support B30625 43 Terminal strip, 6 positions
12 Floor B30628 44 Blower electrical kit
13 Left side panel ass'y B30653-O2 45 Blower wheel 12 X 10
14 Left side panel insulation B30658 46 Seating strip
15 Rear panel ass'y B30652 47 Blower side rails
16 Rear panel insulation B30659 48A Blower 12 X 10 (housing and wheel)
17 Hexagonal flange nut 3/8-16NC brass F070001 48B Blower ass'y (items 41, 48A, 49 and 50 included)
18 Breech plate B30487 49 Capacitor holder
19 Gasket, access cover B30415-O1 50 10 MF capacitor
20 Gasket, access cover B30415-O2 51 Rocker switch SPST (main power)
21 Right side panel ass'y B30653-O1 52 Terminal strip, 6 positions
22 Right side panel insulation B30658 53 Gasket, sealing plate
23 Gasket panel, peep hole B30753 54 Front door, vestibule
24 Gasket, burner B30534 55 Right panel, vestibule
25 Gasket, breech plate B30589-O1 56 Left panel, vestibule
26 Front panel ass'y (labets included) B30781-O1 57 Top panel, vestibule
27 Front panel insulation B30779 58 Bottom panel, vestibule
28 Blower door ass'y (labels included) B30651 59 Draft regulator
29 Door handle Z99F050 60A Peep hote kit
30 Washer 3/8" AA zinc F06F005 60B Overfire pressure test kit
31 Hexagonal nut 3/8-16NC brass F07F024 61 Gasket, glass
32A 6" breech plate (chimney application) B30646 62 Glass, neoceram
32B 4" breech plate (direct vent application) B30647
F070001
B30514
L01H009
L01F009
R021005
L07F003
B40085
B30752
LO6K0Ol
B0188g
LO5FOll
B30530
ZO1LO03
B01291-01
B30626
Z01t008
B02167-01
B01024
L011003
LO7FO16
A00336
B30533
B40295
B30632
B30633
B30732
B30728
ZO6F0Ol
K30011
K30012
B30055
B30041-01
