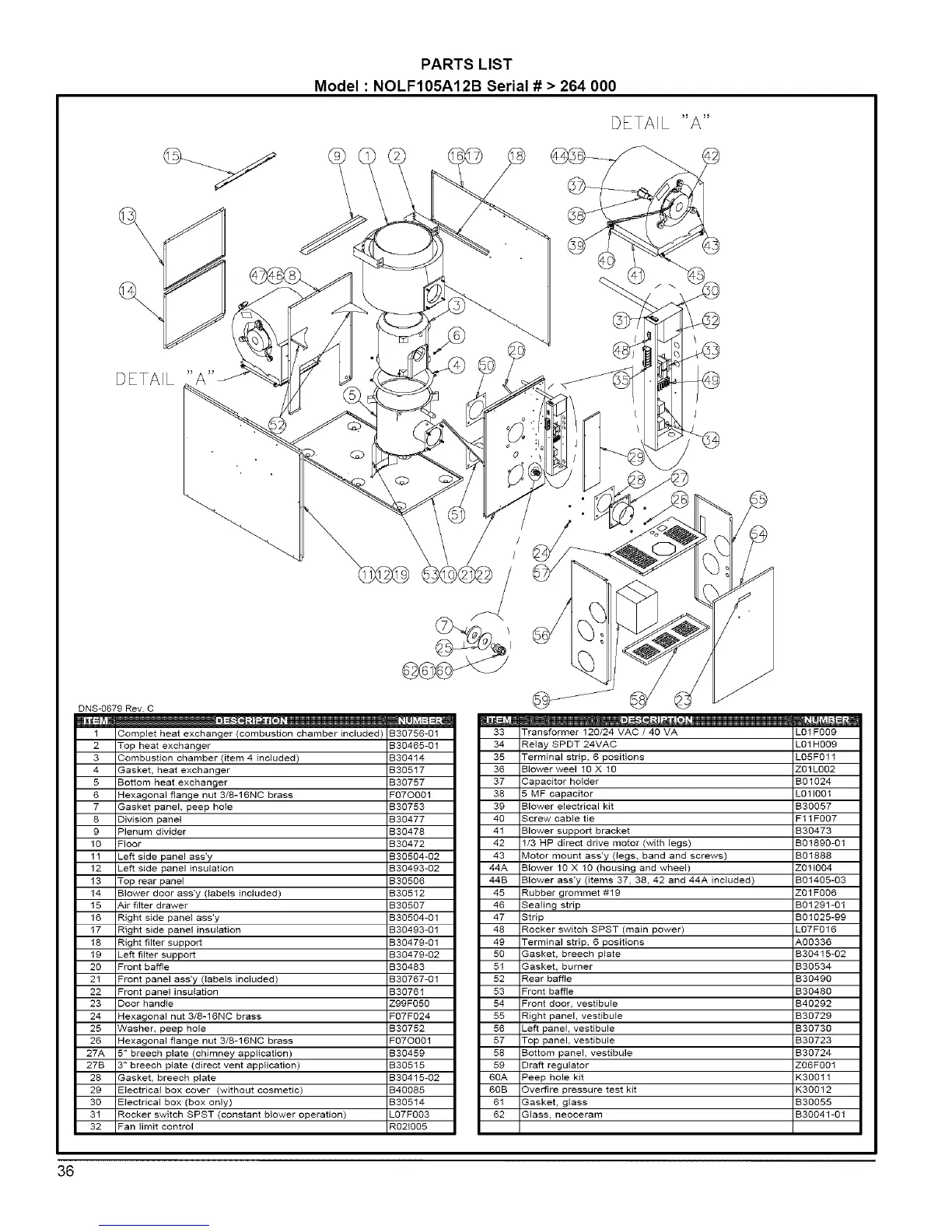

PARTSLIST
Model : NOLF105A12B Serial # > 264 000
DETAIL "A"
%
DETAIL
DNS-0679 Rev C
1 Complet heat exchanger (combustion chamber included) B30756-01 ............3'3
2 Top heat exchanger B30465-01 34
3 Combustion chamber (item 4 included) B30414 35
4 Gasket, heat exchanger B30517 36
5 Bottom heat exchanger B30757 37
6 Hexagonal flange nut 3/8-16NC brass FO7OO01 38
7 Gasket panel, peep hole B30753 39
8 Division panet B30477 40
9 Plenum divider B30478 41
10 Floor B30472 42
11 Left side panel ass'y B30504-02 43
12 Left side panel insulation B30493-02 44A
13 Top rear panel B30506 44B
14 Blower door ass'y (labels included) 830512 45
15 Air filter drawer B30507 46
16 Right side panel ass'y B30504-01 47
17 Right side panel insulation B30493-01 48
18 Right filter support B30479-01 49
19 Left filter support B30479-02 50
20 Front baffle B30483 51
21 Front panel ass'y (labels included) B30767-01 52
22 Front panel insulation B30761 53
23 Door handle Z99F050 54
24 Hexagonal nut 3/8-16NC brass FO7F024 55
25 Washer, peep hole B30752 56
26 Hexagonal flange nut 3/8-16NC brass FO70001 57
27A 5" breech plate (chimney application) B30459 58
27B 3" breech plate (direct vent application) B30515 59
28 Gasket, breech plate B30415-02 60A
29 Electrical box cover (without cosmetic) B40085 60B
30 Electrical box (box only) B30514 61
31 Rocker switch SPST (constant blower operation) L07FO03 62
32 Fan limit control R021O05
Transformer 120/24 VAC / 40 VA
Retay SPDT 24VAC
Terminal strip, 6 positions
Slower weel 10 X 10
2apacitor hotder
MF capacitor
Slower electrical kit
Screw cable tie
Slower support bracket
I/3 HP direct drive motor (with legs)
VIotor mount ass'y (legs, band and screws)
Slower 10 X 10 (housing and wheel)
Slower ass'y (items 37, 38, 42 and 44A included)
Rubber grommet #19
Sealing strip
Strip
Rocker switch SPST (main power)
Terminal strip, 6 positions
Basket, breech plate
Basket, burner
Rear baffle
Wont baffle
=font door, vestibule
Right panel, vestibule
_eft panel, vestibule
Top panel, vestibule
Bottom panel, vestibule
Draft regulator
3eep hole kit
Dverfire pressure test kit
Basket, glass
31ass, neoceram
L01F009
L01H009
L05F011
Z01L002
B01024
L011001
B30057
FffF007
B30473
B01890-01
B01888
Z01iOO4
B01405-03
Z01FO06
B01291-01
B01025-99
L07F016
A00336
B30415-02
B30534
B30490
B30480
B40292
B30729
B30730
B30723
B30724
Z06FO01
K30011
K30012
B30055
B30041-01
36
