2. Installation

2-1. Device Mounting Instruction

Attention!! Prior installation, please remove the coin changer from

the carton and inspect for damages.

Attention!! Turn off VMC Power during installation-IMPORTANT!!!

Warning!! Do not plug both MDB and Executive connector to VMC

board simultaneously!! It may cause damage of VMC board.

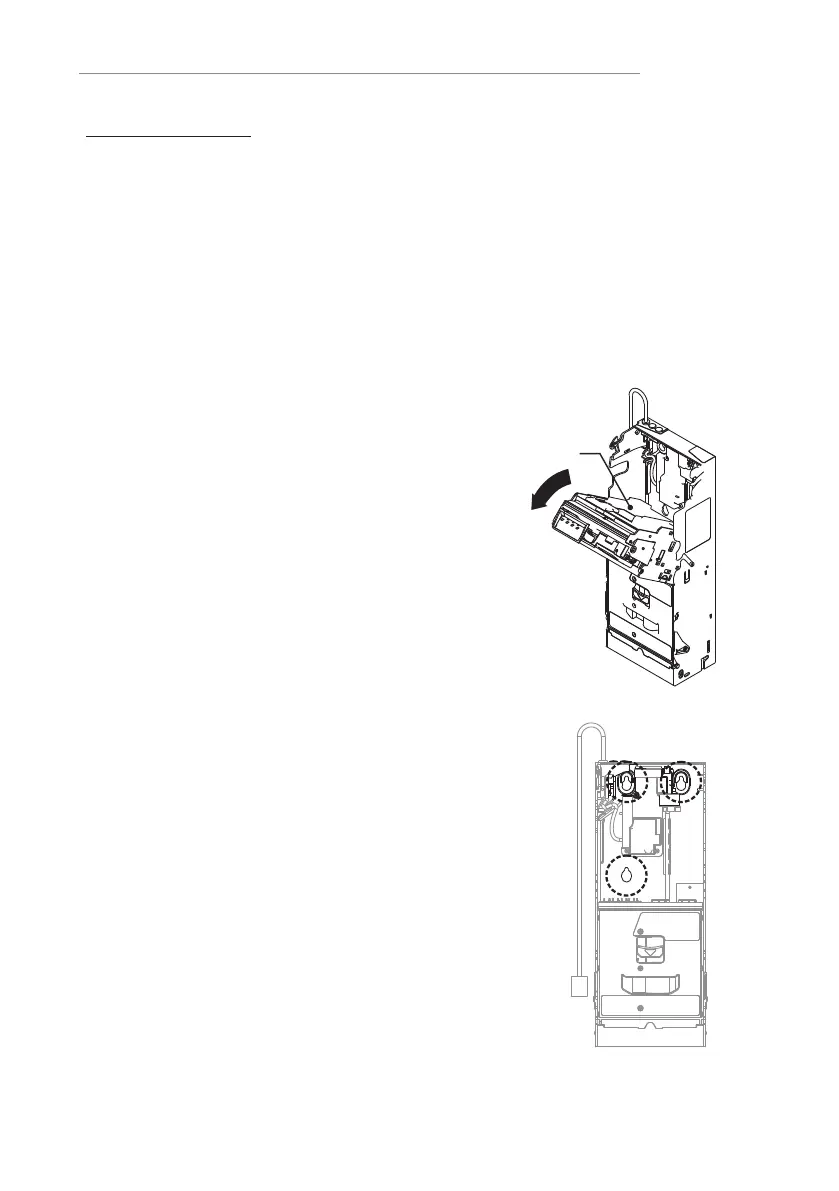

1. Press the green hook at the left side

of the coin changer and tilt the upper

module.

2. Unplug flat cable to separate upper

module from device.

3. Loosen the 3 mounting screws 2 or 3

turns.(do not unscrew these completely)

Lift the coin changer to mount inside

the vending machine.

4. Tighten the screws and place the upper

module back to the device.

5. Plug flat cable back to upper module

then close the upper module till it firmly

fixed by green hook.

Plug device power and communication

cable to vending machine.

Flat cable

CC6100
