ICT KT-LCD3 - P Parameter Setting; P1 Motor Characteristic Parameter Setting Mode; P2 Wheel Speed Pulse Signal Setting Mode

ELECTRIC BICYCLE METER KT—LCD3 Product User Manual
- 19 -
button (SW) long for about 2 seconds, all can exit the setting environment and return to
display 1, meanwhile, the current set parameters are saved.
Under each setting interface, if there’s no button operation on the meter for more than
1 minute, and then the meter will automatically return to display 1, and the original set
parameters will be saved.
P Parameter Setting
After finishing metric/imperial unit settings, the speed and mileage units stop flashing.
Within one minute after stopping flashing, hold button (UP) and button
(DOWN) simultaneously for about 2 seconds to enter P parameter setting environment.
○ P1 Motor Characteristic Parameter Setting Mode
P1 is motor characteristic parameter setting mode. P1 = motor gear reduction ratio×
number of rotor magnet pieces, just rounding if there’s any decimal.
After entering P parameter setting environment, the first is to set P1parameter, P1
parameter column flashes. P1 setting ranges between1-255, hold button (UP) or
button (DOWN) shortly for selection.

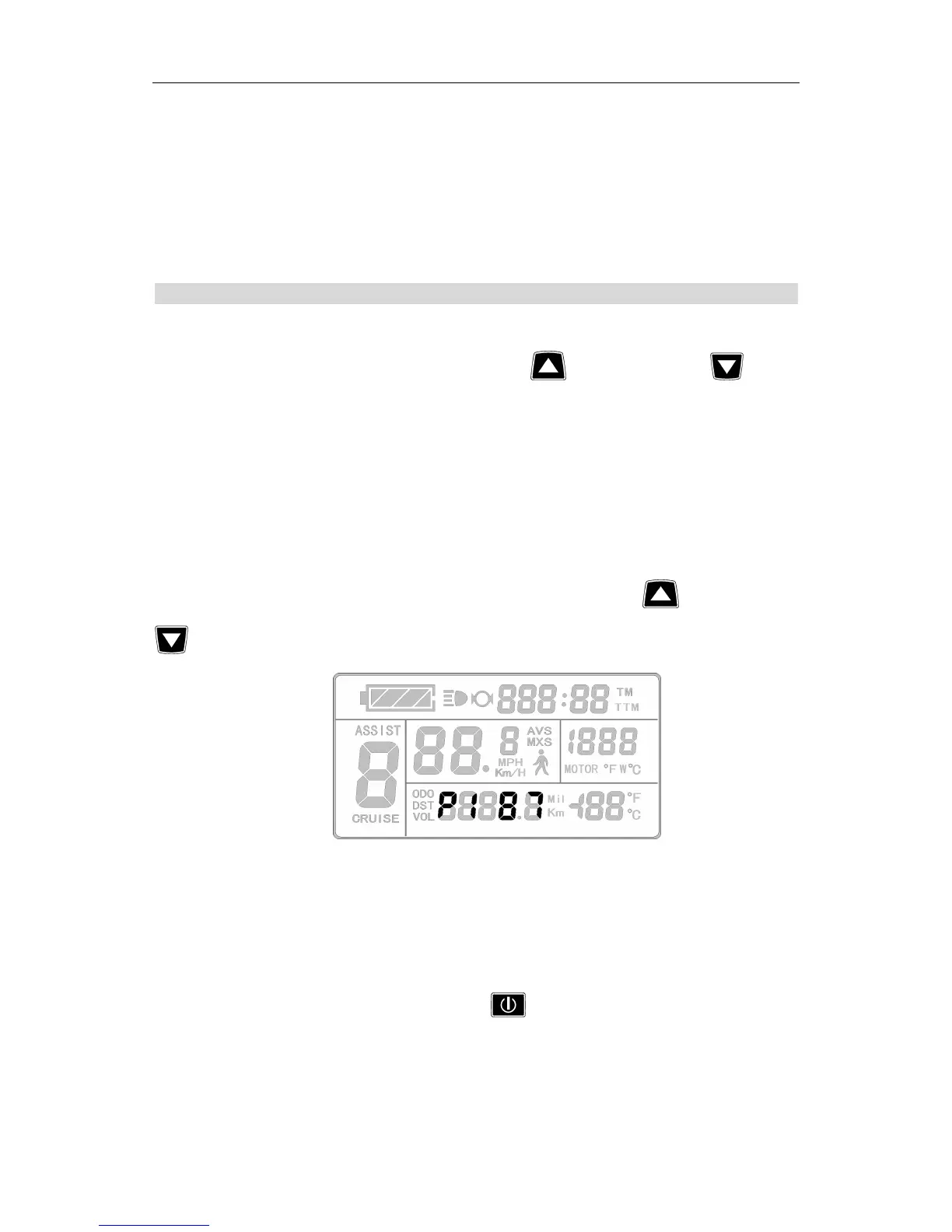

P1 parameter setting interface
Under P1 parameter setting interface, if there’s no button operation on the
meter for more than 1 minute, and then the meter will automatically return to display
1, and the original set parameter will be saved.
After finishing P1 parameter setting, hold button shortly to save the current set
values and enter P2 parameter setting interface.
○ P2 Wheel Speed Pulse Signal Setting Mode
/
//
\
