iDataLink ADS-MRR2 User Manual

ADS-RR(SR)-MA2H-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023
4
MAZDA 3 TOUCHSCREEN WITH AMPLIFIER 2018
3
BACKUP CAMBACKUP CAM
AMP TURN ONAMP TURN ON
POWER ANTPOWER ANT
AUDIO
CABLE
*
NC
NC
MICMIC
AMP TURN ONAMP TURN ON
POWER ANTPOWER ANT
10 11
12 13
14 15
16
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
1
2 3
4 5
6 7 8 9
3
4
4
3
10
18
18
18
28
20
8
8
8
8
20
8
24
8
MAESTRO RR MODULE
STEP 1
MAIN
HARNESS
HRR-MA2 T-HARNESS
STEP 5
STEP 6
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
PINK - VEHICLE SPEED

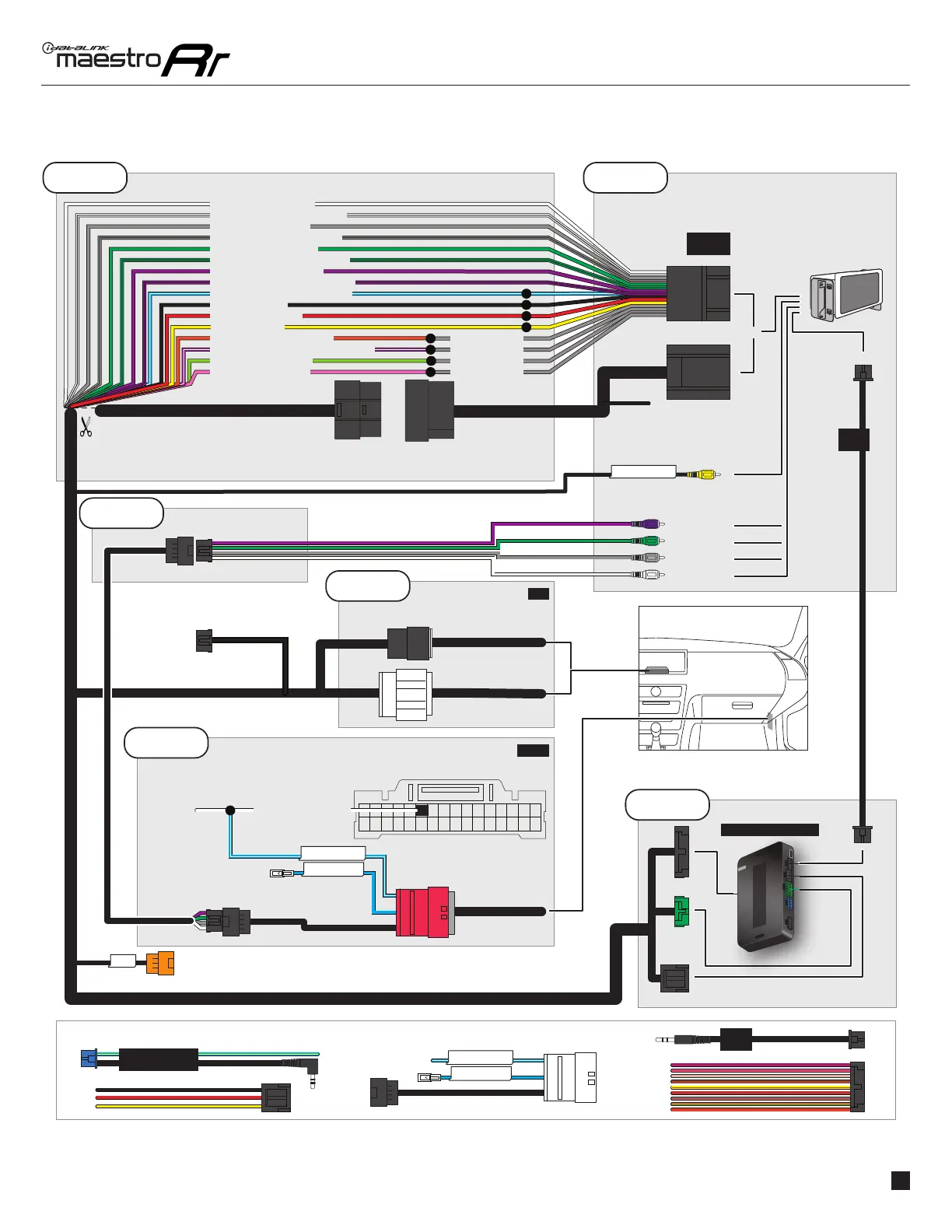

WIRING DIAGRAM
STEP 2
CMU
TUNER
STEP 3
STEP 4
SEE RADIO WIRE
CHART
FOR RADIO WIRE
COLORS
DATA
CABLE
CONNECT TO
AFTERMARKET RADIO
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
TO ANTENNA
ADAPTER IF REQUIRED
OR
HEAD UNIT ADAPTER
SOLD SEPARATELY
IF WIRES ARE PRESENT ON
ADAPTER: SEE RADIO
REFERENCE CHART
IF NOT USING A MAESTRO HEAD UNIT ADAPTER:
CUT AND DISCARD CONNECTOR
LF OUT
RF OUT
LR OUT
RR OUT
CONNECT IF EQUIPPED *
PASSENGER KICK PANEL
BEHIND/BELOW RADIO DISPLAY
WHITE - REMOTE (12V)
