MAZDA CX3 TOUCHSCREEN WITH AMPLIFIER 2021

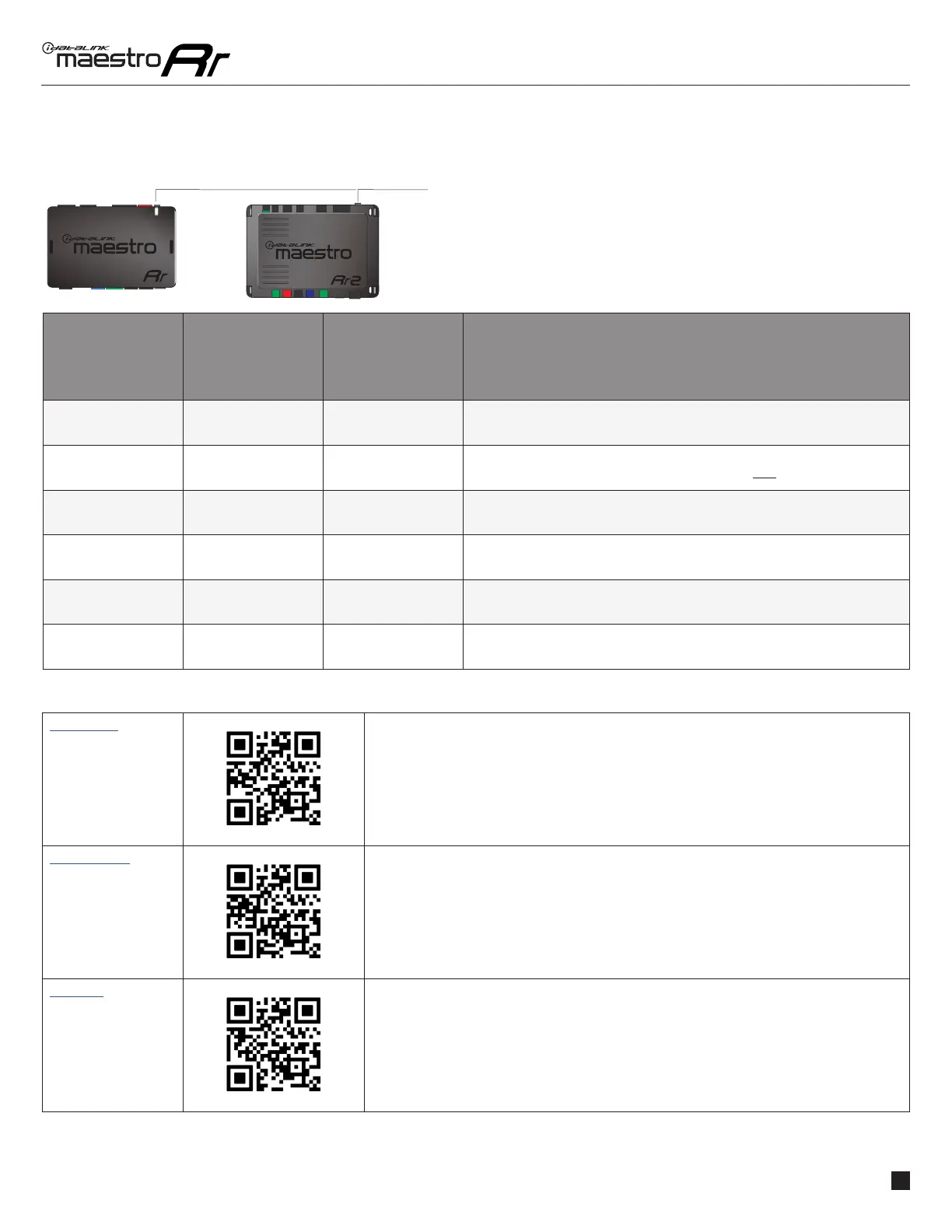

MODULE DIAGNOSTICS
VIDEO HELP Installation, product information, vehicle specific videos.
VERIFY FLASH Last flash information, steering control configuration, vehicle information.
WEBLINK Software to program module.
LED 1 LED 2
LED 1
PROGRAMMING BUTTON
LED 1
Module/Firmware
status
LED 2 (RR2)
Bluetooth activity
LED STATUS DIAGNOSTIC
• or •
RED or GREEN
flashing
LED flashes 1 or more times, either red or green, when a steering wheel
button is pressed : normal operation.
•
1 RED flash Module has no firmware.
Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE.
•
2 RED flashes Problem detected. Consult troubleshooting table.
•
1 GREEN flash After radio boots up : Normal operation.
•
3 GREEN flashes Bluetooth is activated.
Turns off after one minute: Normal operation.
• •
OFF Normal operation (inactive).
