iDataLink maestro Rr Installation Guide

GM2B-RR-AS-(RR-GM2)-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2023
4
CHEVROLET CRUZE LIMITED MONOCHROME SCREEN WITH AMP 2016
BACKUP CAMBACKUP CAM
1
2 20
2
2
2
4
44
2
4
4
2
4
3
18
18
10
10
3
16
2
4
4
4
4
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
BROWN (NOT CONNECTED)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
MAESTRO RR MODULE
MAIN
HARNESS
RCA CABLE
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
BACKUP CAMERA HARNESS
SPEAKER

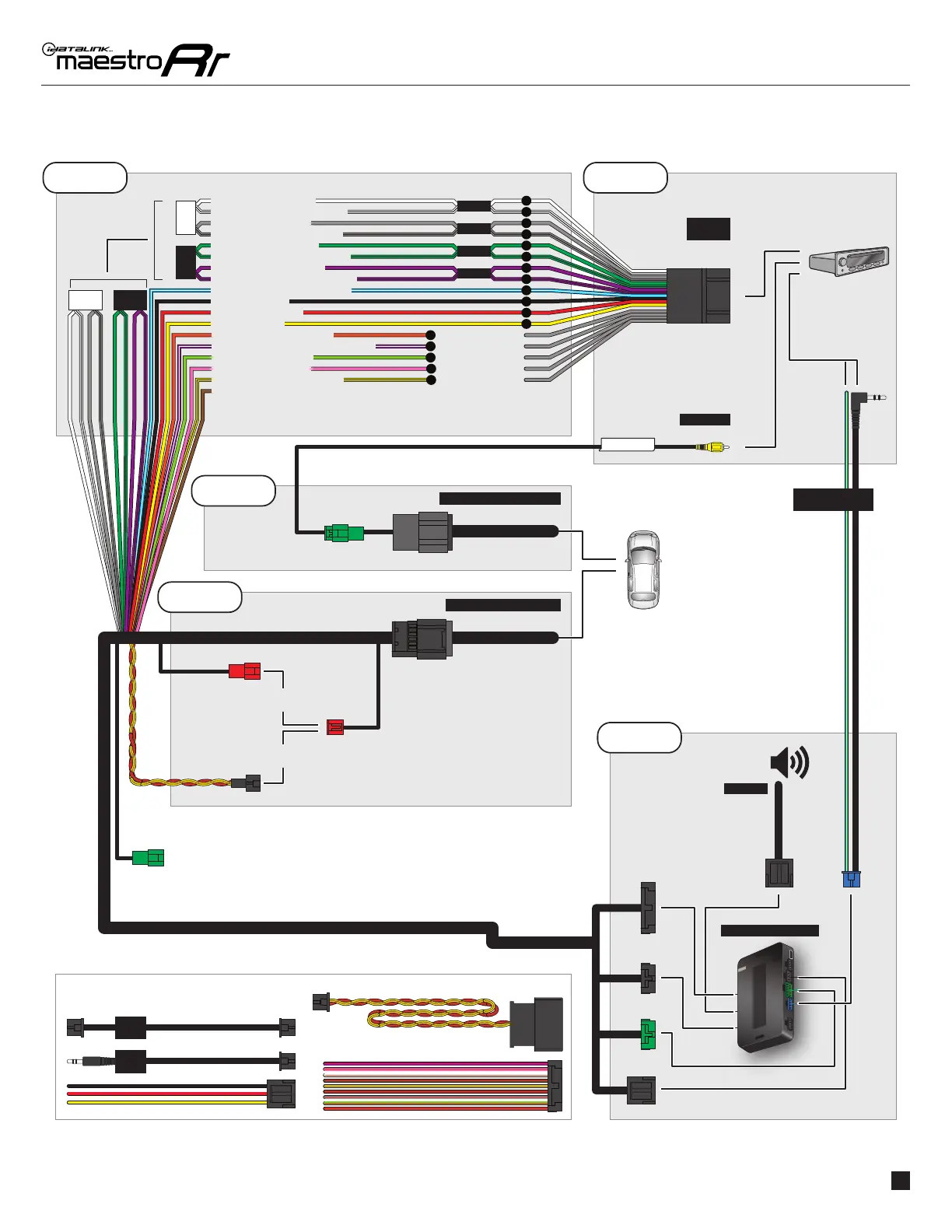

WIRING DIAGRAM with an Amplifier
STEP 1
STEP 3
STEP 2
STEP 4
STEP 5
GREEN GREEN
GM2 T-HARNESS
CONNECT TO
AFTERMARKET RADIO
STEERING WHEEL
CONTROL CABLE
STEERING WHEEL
CONTROL CABLE
AUDIO
CABLE
DATA
CABLE
NOT REQUIRED
SEE
AFTERMARKET
RADIO GUIDE
FOR WIRE
COLORS
GREEN
NOT CONNECTED
CONNECT ONLY IF USING
MAESTRO RR2 MODULE
CONNECT ONLY IF USING
MAESTRO RR MODULE
RED
RED
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
