iDataLink maestro Rr How To Use

ADS-RR(SR)-TOY02-DS-IG-EN maestro.idatalink.com
ToyoTa 4 RunneR WiThouT JBL 2014-2019
Automotive Data Solutions Inc. © 2021
4
NC
AUX INAUX IN
BACKUP CAMBACKUP CAM
2
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
YELLOW/BLACK - FOOT BRAKE
ORANGE - ILLUMINATION (+)
PINK - VEHICLE SPEED
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
RCA CABLES
FACTORY RADIO HARNESS
REVERSE CAMERA HARNESS
STEP 1
STEP 2
STEP 3
CONNECT YELLOW RCA AUX IN
IF VEHICLE IS EQUIPPED WITH
AUXILIARY VIDEO
SEE AFTERMARKET
RADIO GUIDE
FOR RADIO WIRE
COLORS
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
CUT AND REMOVE
THE SPEAKER WIRE
JUNCTION CONNECTORS
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)

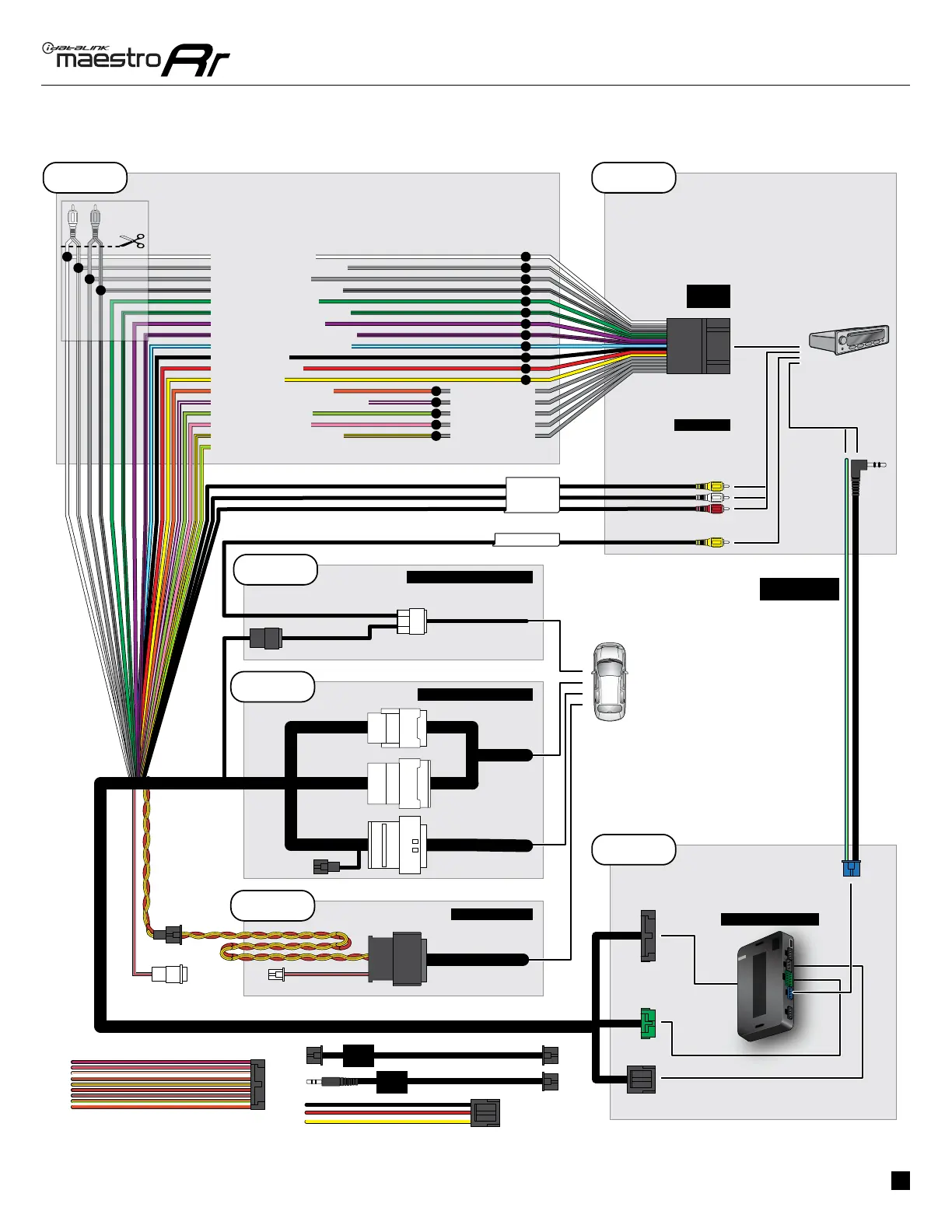

WIRING DIAGRAM without an Amplifier
CONNECT IF EQUIPPED
TO2 T-HARNESS
STEP 5
WIRES FROM
VEHICLE
STEP 6
CONNECT TO
AFTERMARKET RADIO
STEERING WHEEL
CONTROL CABLE
YELLOW/GREEN (NOT CONNECTED)
PURPLE/WHITE - REVERSE LIGHT (+)
NOT REQUIRED
AUDIO
CABLE
DATA
CABLE
MAESTRO RR MODULE
OBDII CONNECTOR
STEP 4
N.C.N.C.

iDataLink maestro Rr Specifications

General

Category	Automobile Accessories
Type	Vehicle Interface Module
Compatibility	Works with select vehicles and aftermarket radios
Features	Retains factory features
Functionality	Allows integration of aftermarket radios with factory vehicle systems
Programmability	Programmable via Weblink desktop application
Firmware Updates	Supports firmware updates through Weblink
Data Bus Support	CAN bus
Vehicle Coverage	Compatible with a wide range of makes and models
Additional Features	May include support for factory amplifiers, backup cameras, and more
Installation	Professional installation recommended
