ADS-RR(SR)-TOY02-DS-IG-EN maestro.idatalink.com
ToyoTa CoRoLLa WiTh FaCToRy 6.1" SCReen 2014-2019
Automotive Data Solutions Inc. © 2019
4
AUX INAUX IN
4
BACKUP CAMBACKUP CAM
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
YELLOW/BLACK - FOOT BRAKE
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
PINK - VEHICLE SPEED
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
RCA CABLES
FACTORY RADIO HARNESS
REVERSE CAMERA HARNESS
TO2 T-HARNESS
STEP 1
STEP 2
STEP 3
STEP 4
WIRES FROM
VEHICLE
CONNECT YELLOW RCA AUX IN
IF VEHICLE IS EQUIPPED WITH
AUXILIARY VIDEO
SEE AFTERMARKET
RADIO GUIDE
FOR RADIO WIRE
COLORS
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
STEP 5
DATA
CABLE
CUT AND REMOVE
THE SPEAKER WIRE
JUNCTION CONNECTORS
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)

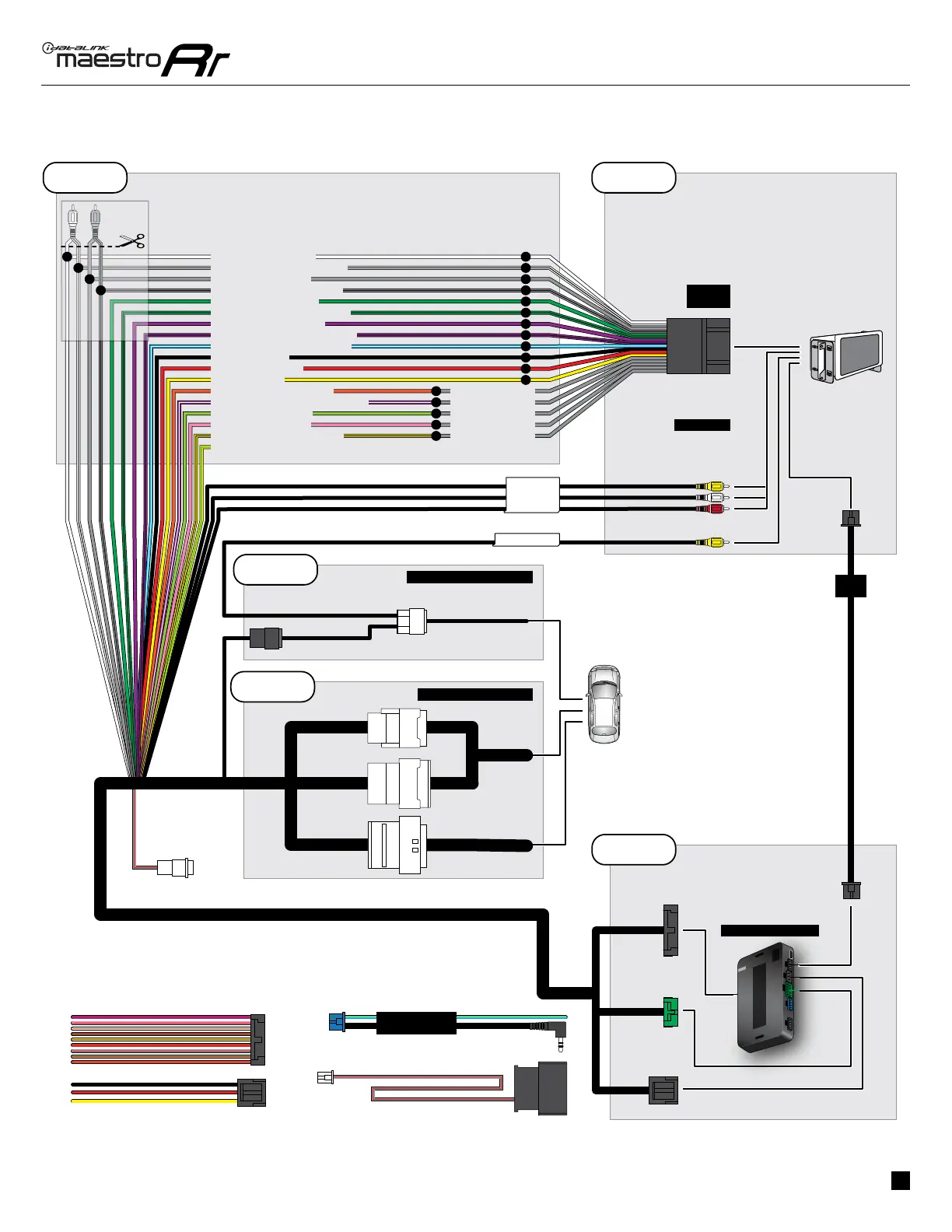

WIRING DIAGRAM without an Amplifier
CONNECT IF EQUIPPED
YELLOW/GREEN (NOT CONNECTED)
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
N.C.
MAESTRO RR MODULE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
To Next Page
