Ideal Boilers Esprit 2 - Unpacking, Mounting, and Wall Preparation

14
INSTALLATION
ESPRIT 2 - Installation and Servicing
206091-10135
B
C
E
D
F
A
time
PROGRAMMER
prog
prog
select
select
+
-

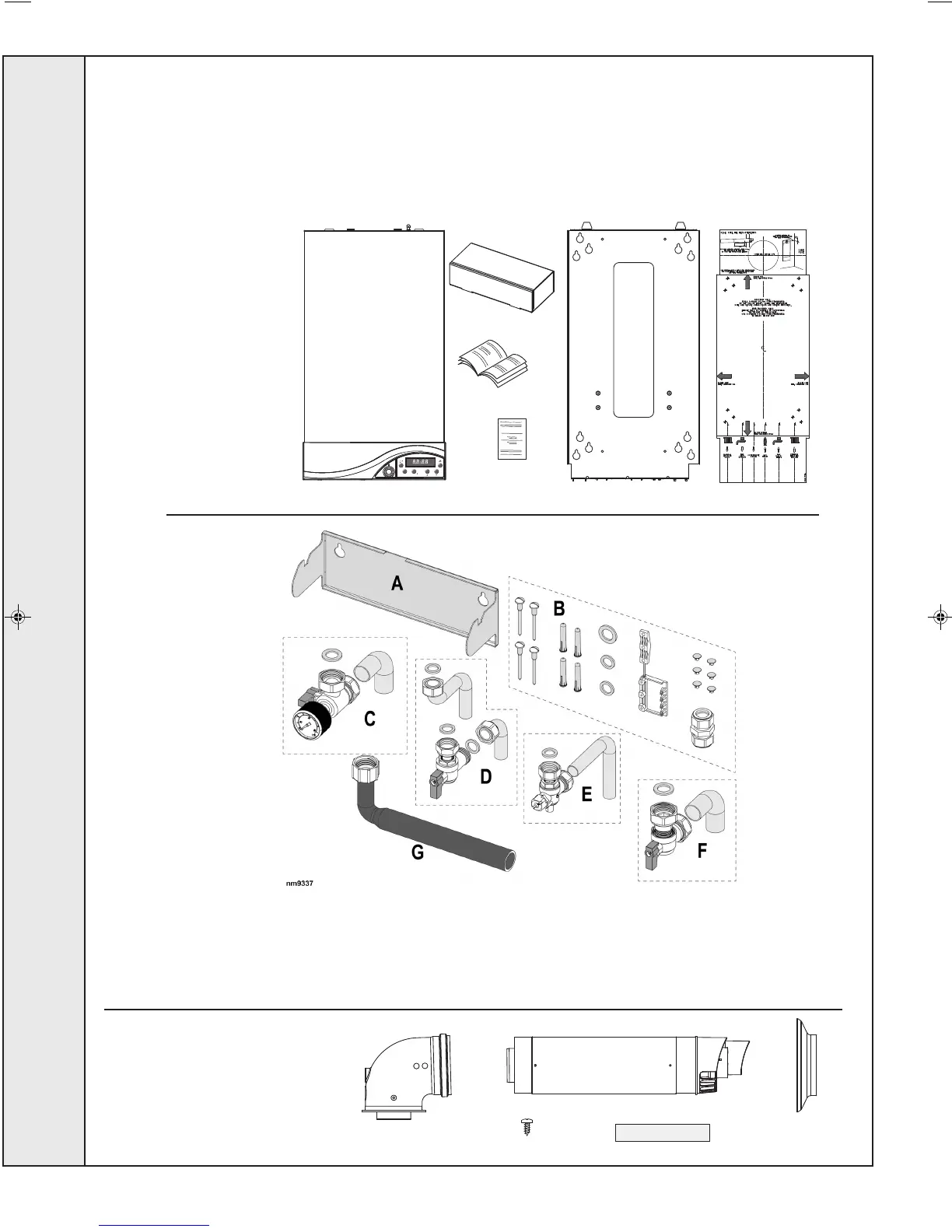

9 UNPACKING
The boiler is supplied fully assembled in one Pack A, together with a Telescopic Flue
assembly for lengths up to 595mm, rear or side flue outlet, in Pack B.
Unpack and check the contents.
Pack A Contents
A Boiler
B Hardware Pack Box
C Wall Mounting Plate
D These Installation/Users
Instructions
E Wall Mounting Template
(located on internal
protective packaging)
F 1 Year Guarantee
Pack B Contents
A Telescopic flue terminal
B Flue turret
C Rubber Terminal Wall Seal
D Screw
E Sealing tape
Hardware Pack Contents
A Support Bracket - 1 off
B Accessory Pack
C CH Flow Valve & Gauge Pack
D DHW Pack
E Gas Valve Pack
F CH Return Valve Pack
G “S” Trap Hose Moulding
isfu8751d
D
C
B
A
E
INSTALLATION
