INSTALLATION
ESPRIT 2 - Installation and Servicing
1. Ensure the boiler is on a sound flat
surface.
2. Carefully remove the strapping.
3. Fold back the top flaps to gain access to:
z Instructions
z 1 year guarantee
z Wall mounting plate
z Wall mounting template.
(located under pre-piping frame on
protective packaging).
4. Remove the instructions and read
thoroughly before unpacking the product.
5. When ready for installation lift off the
cardboard carton.
10

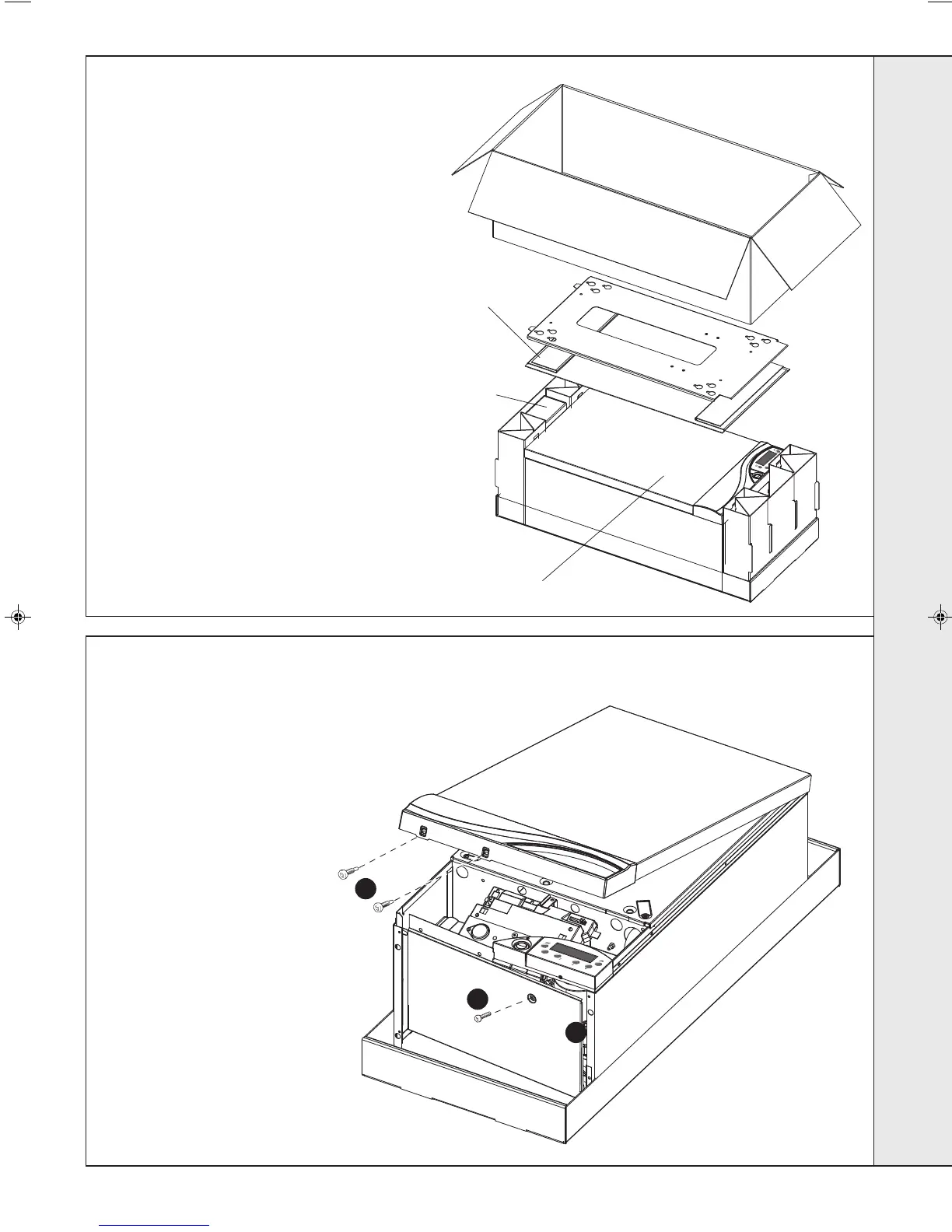

PACKAGING REMOVAL
11
BOTTOM AND FRONT PANEL REMOVAL
1. Remove the screw from the
underside of the boiler’s bottom
panel.
2. Pull the right-hand side of the panel
down, slide it to the right and
withdraw.
3. Remove the screws from bottom of
the front panel.
4. Lift panel up and off top pegs.
Boiler
Hardware
pack box
Wall mounting template/
protective packaging
ispfu9790
2
1
3
tim
e
P
R
O
G
R
A
M
M
E
R
p
ro
g
s
e
lec
t
+
-
ispfu9791
