Minimiser - Installation
24
INSTALLATION
39

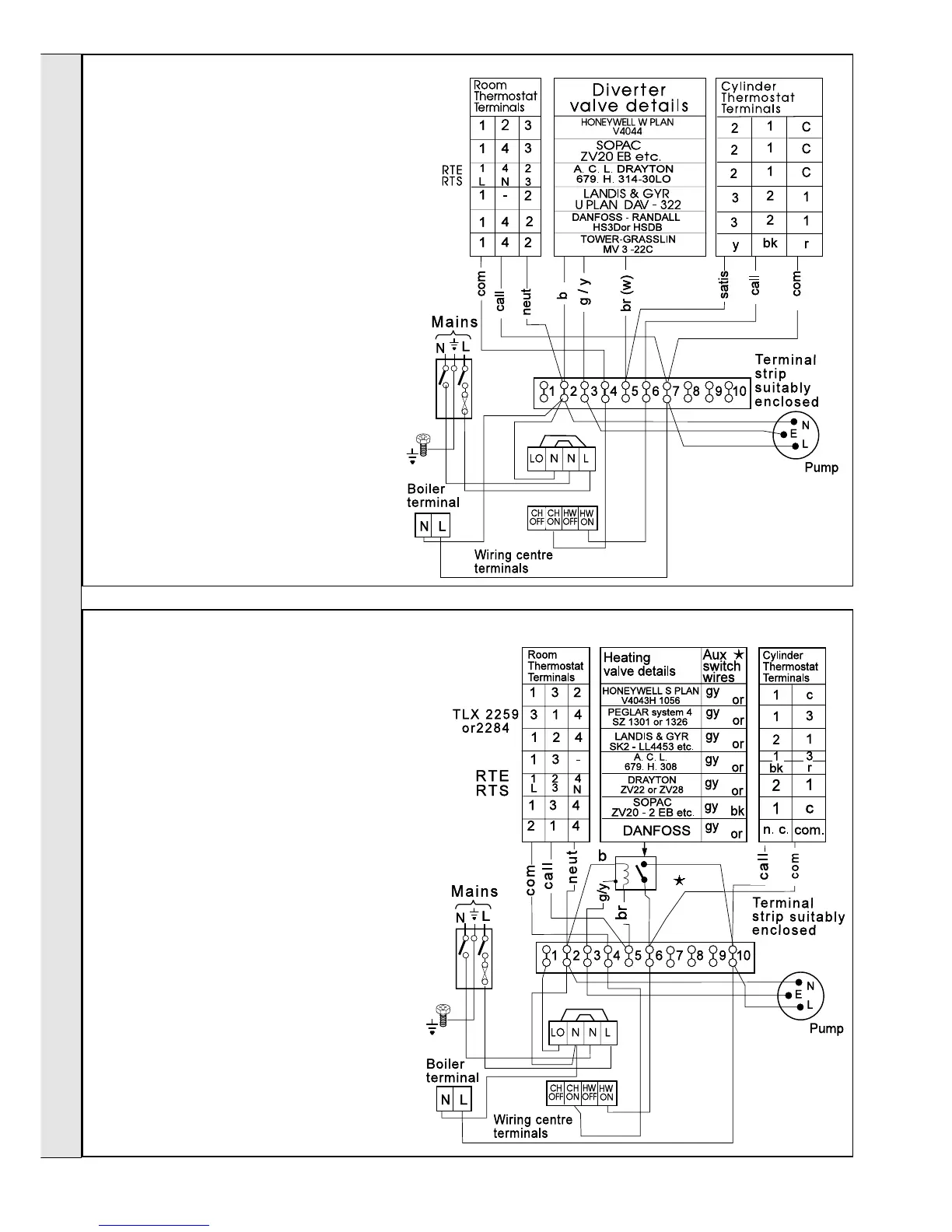

DIVERTER VALVE - pumped only
40
ONE VALVE IN HEATING CIRCUIT - pumped only
LEGEND
b - blue
bk - black
br - brown
r - red
y - yellow
w - white
g/y - green/yellow
gy - grey
or - orange
v - violet
pk - pink
INSTALLATION
1. Some earth wires are omitted for clarity -
ensure proper earth continuity when wiring.
2. This is a fully controlled system - set the boiler
thermostat to MAXIMUM.
3. Numbering of thermostat terminals applies
only to the manufacturer mentioned.
4. The boiler should be sized for radiator load
only.
5. A clock 'stat may be used instead of separate
room 'stat and time switch.
1. Some earth wires are omitted for clarity - ensure
proper earth continuity when wiring.
2. Numbering of thermostat terminals applies only
to the manufacturer mentioned.
LEGEND
b - blue
br - brown
bk - black
r - red
y - yellow
w - white
g/y - green/yellow
To Next Page
