Ideal Boilers Minimizer FF 50 - Electrical Systems Diagrams

23
Minimiser - Installation
INSTALLATION

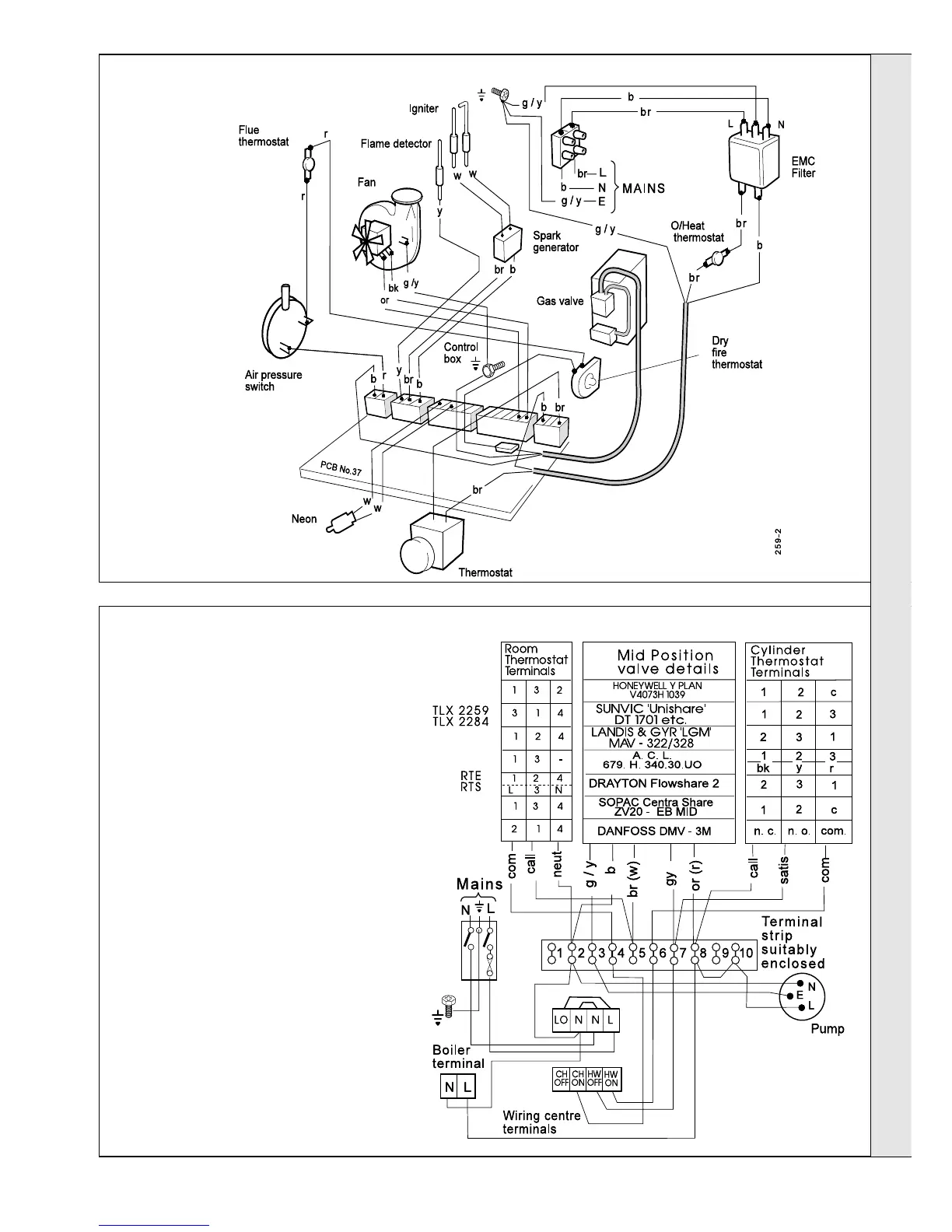

37 PICTORIAL WIRING
38 MID POSITION VALVE - pumped only
1. Some earth wires are omitted for clarity. Ensure
proper earth continuity when wiring
2. This is a fully controlled system - set the boiler
thermostat to MAXIMUM.
3. Numbering of thermostat terminals applies only to
the manufacturer mentioned.
w - white
g/y - green/yellow
gy - grey
or - orange
v - violet
pk - pink
LEGEND
b - blue
bk - black
br - brown
r - red
y - yellow
INSTALLATION
LEGEND
b - blue
bk - black
br - brown
r - red
w - white
or - orange
y - yellow
g/y - green/yellow
