15Installation and Servicing
Section 2 - Installation
INSTALLATION
2.2 UNPACKING
The boiler is supplied fully assembled in Pack A.
A telescopic or non-telescopic ue assembly for
rear or side ue outlet in Pack B is suppled as a
separate order.

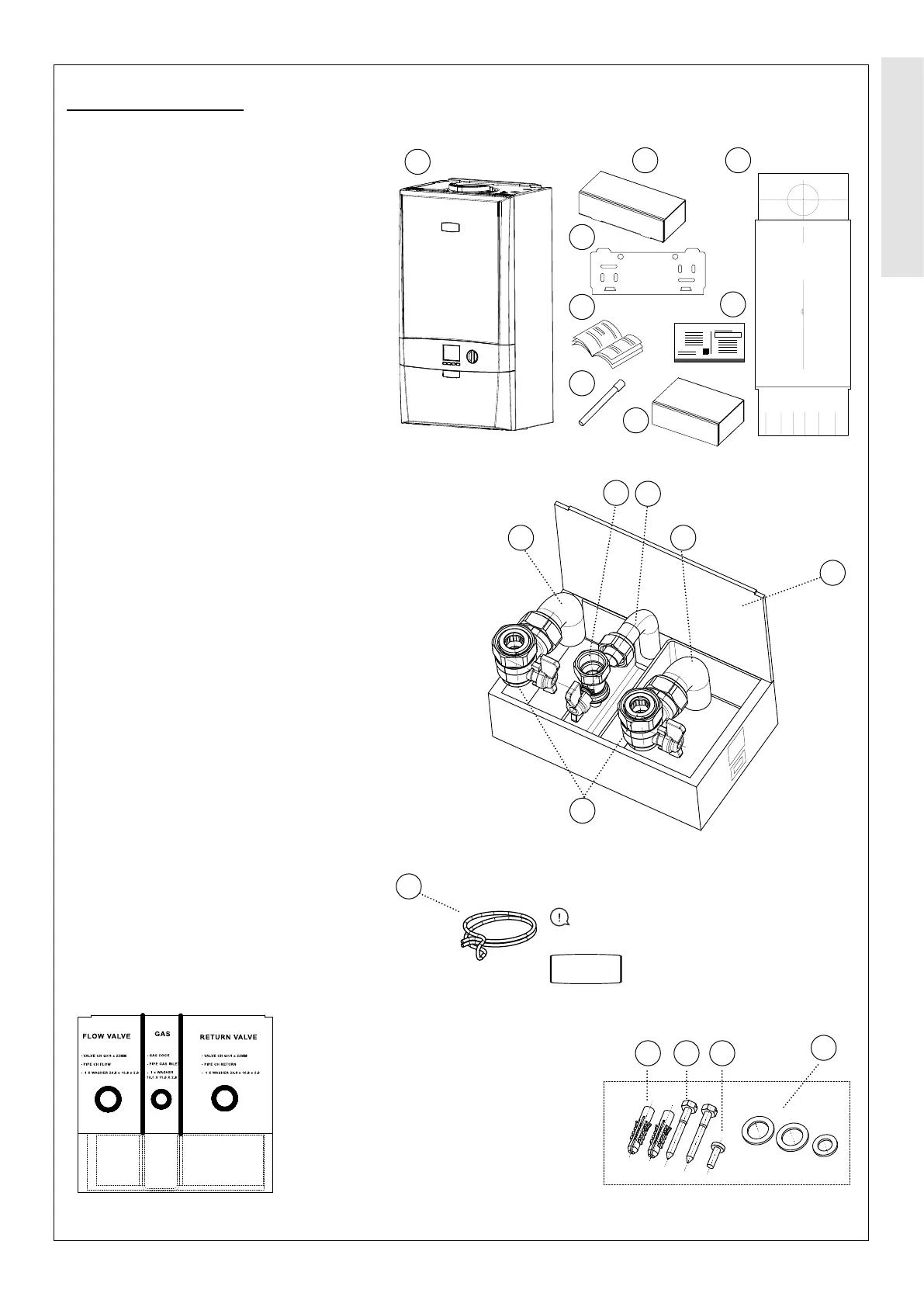

Pack A Contents
1. Boiler
2. Hardware Pack Box
3. Wall Mounting Plate
4. These Installation/Users Instructions
5. Wall Mounting Template
6. Boiler Warranty
7. PRV Drain Pipe
8. Ideal System Filter
Unpack and check the contents
Hardware Pack
Box Contents
9. 1x HP Box - 180 x 111 x 57.5 mm
10. 2x Pipe CH Flow/Return
11. 1x Gas Cock
12. 2x Valve CH G
3
/4 x 22 mm
13. 1x Pipe Gas Inlet
14. 1x PRV Clip
Accessory Bag Contents
15. 3x Washers*
16. 2x Wall Plugs
17. 2x Screws
18. 1x Flue Clamp Screw
17 1816
1
2
3
4
6
5
*Refer to Valve Washer Template inside box lid.
11
12
13
10
9
15
7
8
10
Refer to Section
2.17
IMPORTANT This clip needs to be tted
to ensure correct operation of the boiler.
14
