11
7

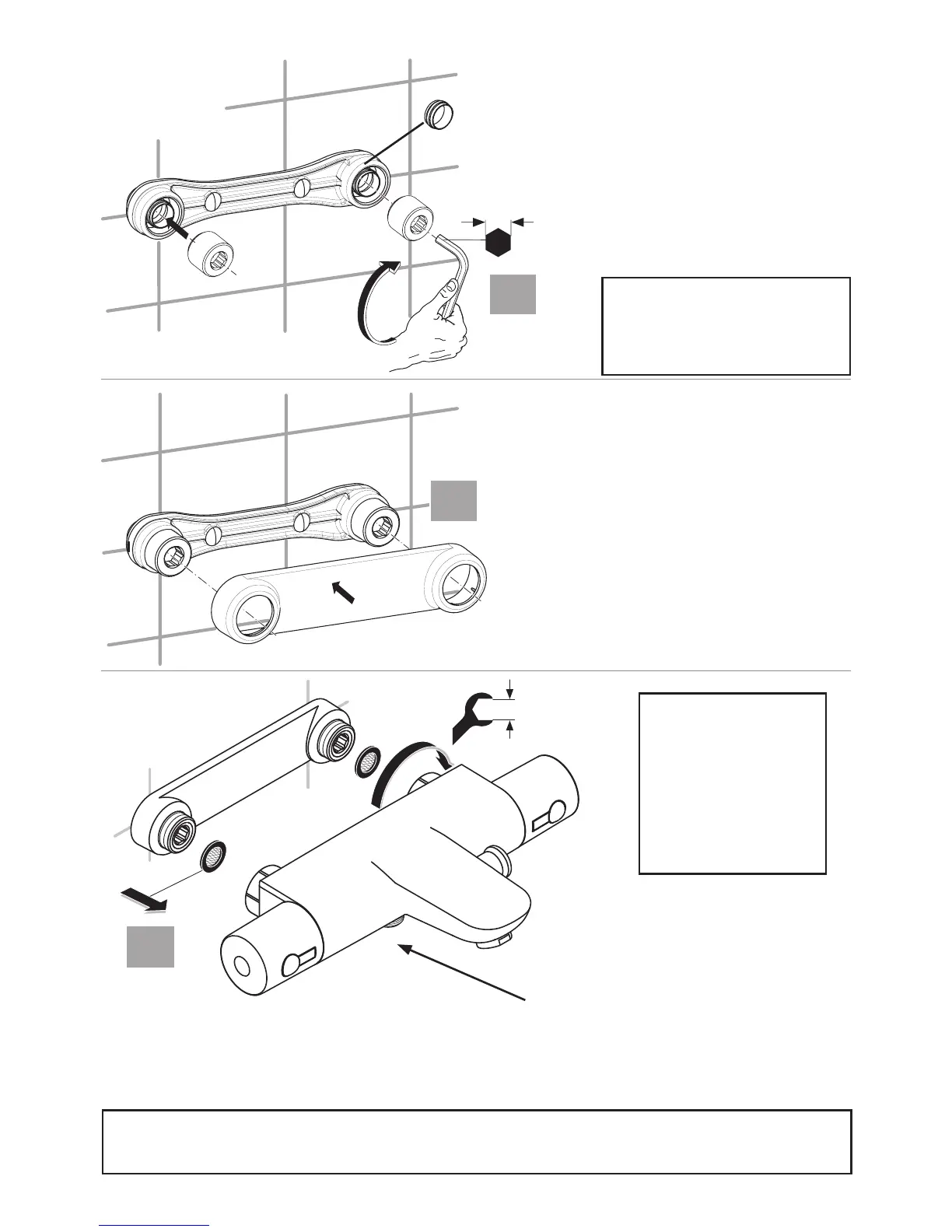

Fit the olives to the pipes prior to
screwing the two 3/4“ connectors
into the wall mount plate using a
1/2“ allen key.
The connectors will have to be secu-
rely screwed in to form the neces-
sary compression joint between the
olive, wall plate and connector.
Shroud can now be tted to wall plate
and should be positioned with the slot
at the bottom
Hose from the shower kit should be
connected to the outlet on the under
side on the mixer
Ensure the sealing washers are within the captive nuts of the shower valve.
Fit the shower valve to the wall bracket as shown.
Turn on the water supplies & check for leaks.
Fit 15mm
Olives x2
Use 30mm A/F
spanner.
CAUTION:
Take care not to
damage chromed
surfaces.
For guidance on how to install the shower kit, please refer to the seperate
instructions provided with the kit.
8
9
30
1/2“
NOTE FOR IRELAND: 15mm
olives are supplied with this
product. Use 1/2” olives if
1/2” supply pipes are tted.
