Ideal-Standard ALTO ECOTHERM A5634AA User Manual

14
c
d
b
e
a
f
1
2
3
4
5
6
7
8
10
9
11
12
90°
REMOVAL OF LIMIT STOP
IS NOT RECOMMENDED
40˚C
104°F
43˚C
109°F
45˚C
113°F
= 50˚C
118°F
6 Maximum temperature stop
The water temperature up to the stop but-
ton on the handle is set at 40°C.
The maximum mixed water temperature
(achieved by overriding the stop button on
the handle) is factory set at 43°C.
To change this temperature, remove the
temperature control handle, see 8.
Remove the temperature limit stop (black
H-shaped plastic part) and reinsert it in the
appropriate recess on the handle carrier.
Four different settings are possible:
40°C, 43°C, 45°C & 50°C
At last ret the temperature handle again.

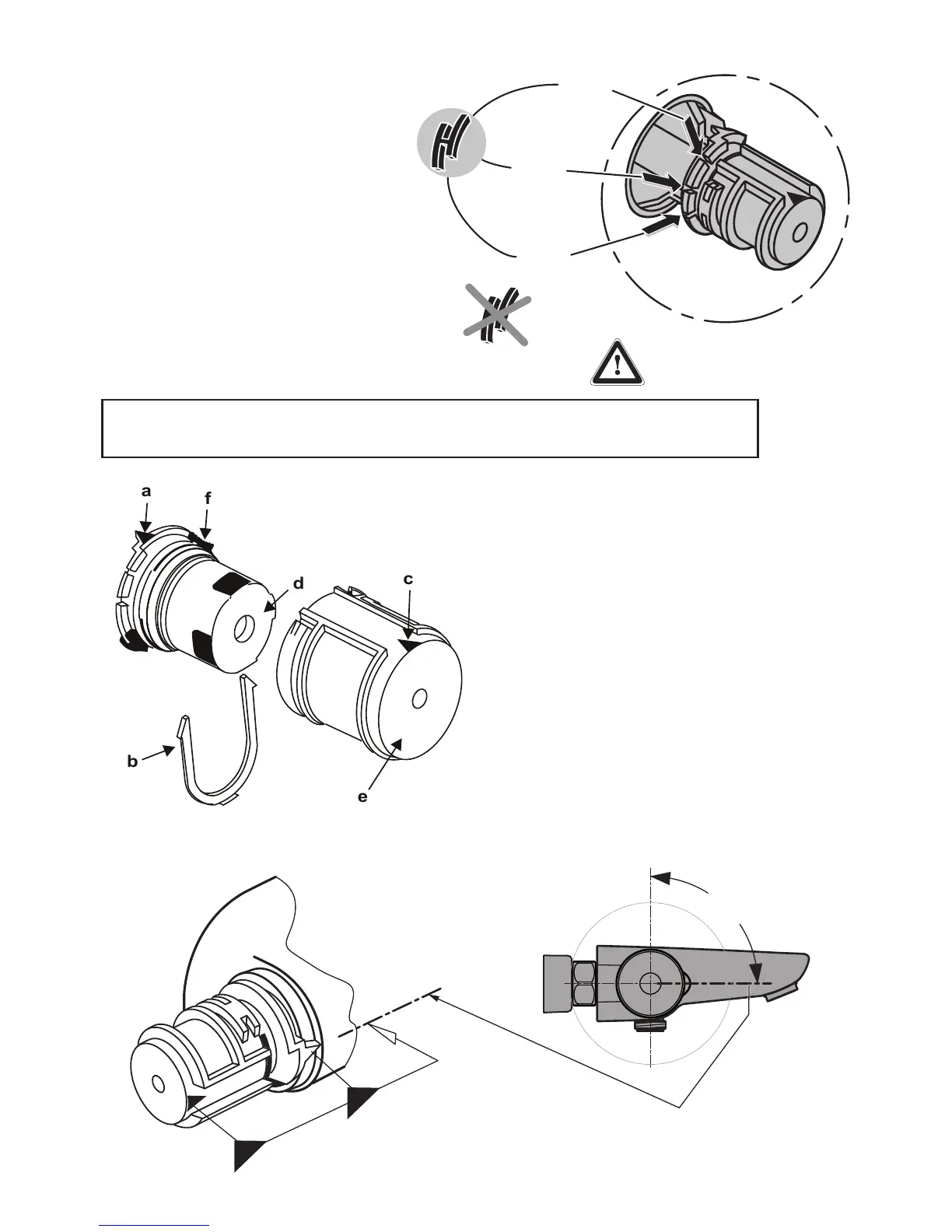

In the event of the thermostatic cartridge requiring
re-calibration the following procedure should under-
taken:
1. Remove temperature control handle, see 8.
2. Slide out the red “U” piece (b) exposing
temperature control mechanism (d).
3. Turn on the shower, position a thermometer in
the running water and when the temperature
s e t t l e s r o t a t e t h e t e m p e r a t u r e c o n t r o l m e c h a n i s m
until 40ºC is achieved.
4. Reconnect the handle carrier (e) ensuring the
arrow guide (c) is at 3 o’clock position and aligned
to marker (a) see below for details.
5. Ret the red “U” piece (b).
6. Reconnect the handle to the carrier.
7 Calibration of thermostat
IMPORTANT NOTE: Settings of 45°C & 50°C are not recommended for showering.
See section for safe & comfortable bathing temperatures.
