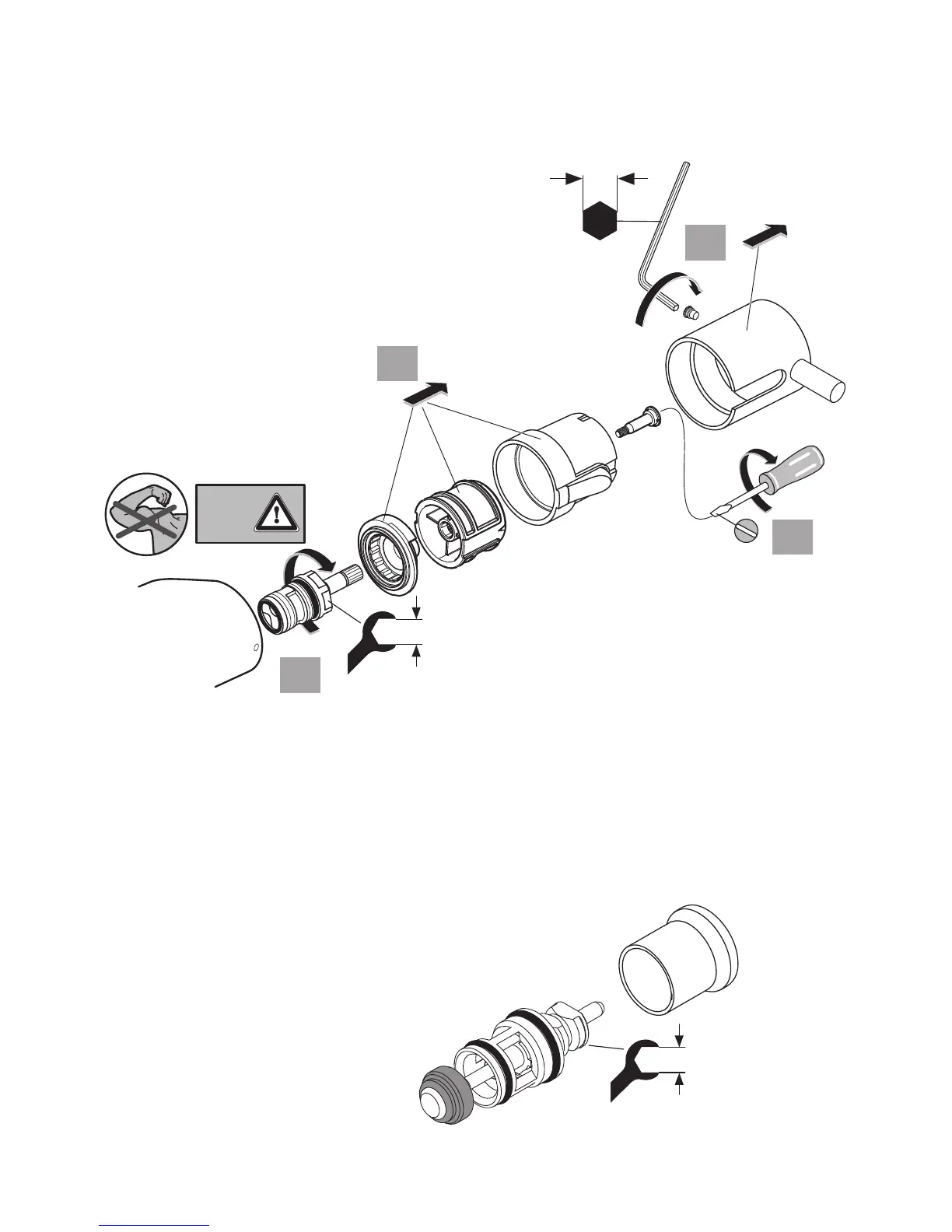

9 Flow cartridge replacement cont
10 Diverter cartridge replacement
1. Pull the diverter knob away the from spout to expose the diverter cartridge.
2. Use a 10mm A/F open spanner on the ats to undo the diverter cartridge
whilst holding the diverter knob away
3. Slide out the diverter cartridge. Replace the diverter cartridge if necessary.
To replace the diverter cartridge:
When retting cartridge, do not over tighten, hand tighten the rst few threads, maximum torque 12Nm.
FOR LEVER HANDLE VERSIONS:
1. Unscrew dog point screw and pull
off temperature control handle.
2. Remove handle screw.
3. Pull off the ow control handle.
4. Pull of handle carriers.
5. Unscrew cartridge with 17mm
A/F spanner and replace if necessary.
