Wall bracket
Drill 2 holes for wall bracket
Ø4mm
Anti
Rotation
Hole
11mm CRS
Ø8mm
Fixing
Ø6mm
Fixing
Hole
4a
4b
Product A7543AA includes a small “shower hose” retaining bracket, which should be tted to ensure
the installation complies with water regulations, see section 5 for more details.
Select a suitable location on the wall that will prevent the exible
shower handset from entering any adjacent appliances, such as
sink, washbasin, toilet, bath, bidet, or shower tray.
The two-piece bracket comprises of the wall bracket which is xed
to the wall & a snap on cover, which conceals the wall bracket.

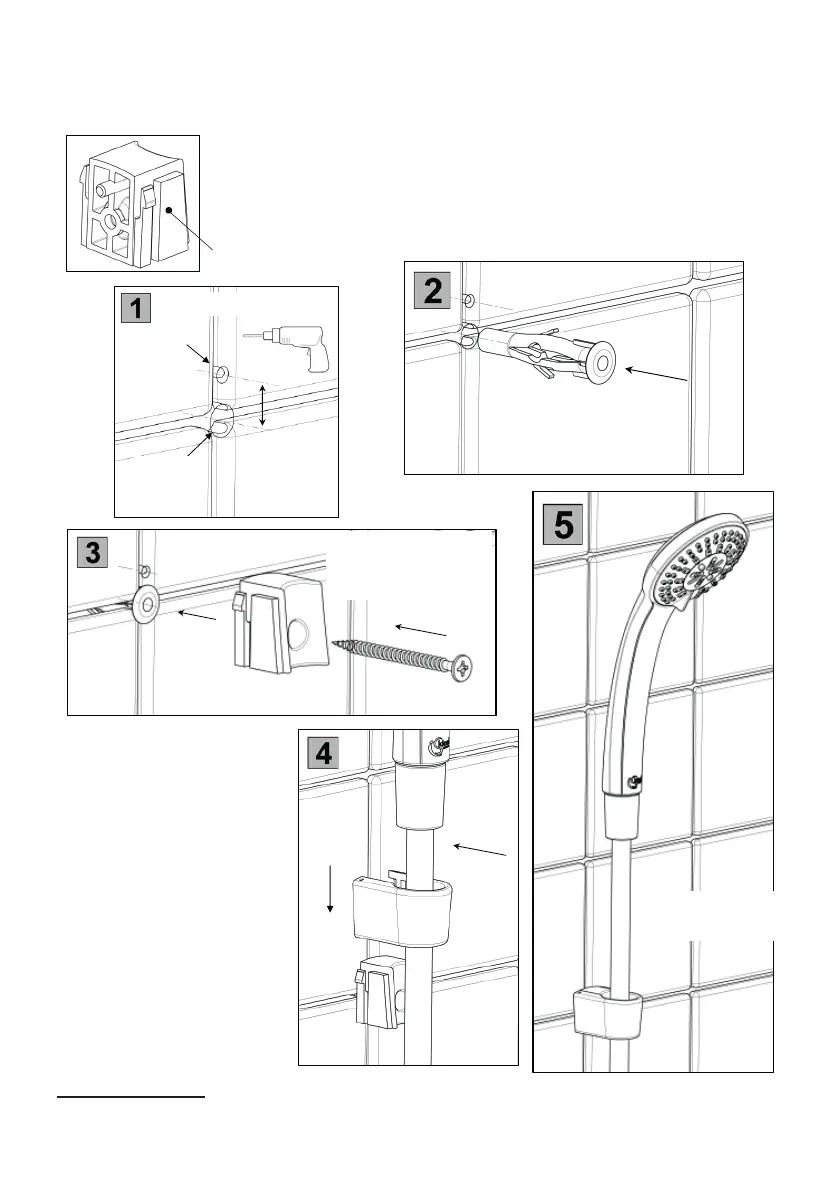

2. Tap a wall plug into
the Ø6mm drilled hole.
3. Using a “posi” screw
driver, & the screw pro-
vided, securely x the
bracket to the wall.
5. Example of
a completed
installation.
4a. Ensure the shower hose is
trapped between the two parts
of the bracket as shown.
4b. Slide the cover downwards
onto the wall bracket until it
snaps into position.
Note: This bracket has robust
design, but is likely to break if
becomes necessary to remove
the shower hose in the future.
A new bracket should be tted
if the shower hose is replaced.
IMPORTANT NOTE: The wall plug & screw provided are intended for a solid wall. Check & ensure
this plug & screw are suitable for the type of installation wall. Otherwise purchase & use wall xings
appropriate to the wall type.
Wall bracket for Category-5 shower hose retaining applications
