7 INSTALLATION
IMPORTANT
BEFORE CONNECTION, FLUSH WATER
THROUGH PIPEWORK TO REMOVE
ALL DEBRIS ETC. WHICH COULD DAM-
AGE THE VALVE MECHANISM
Pair of wall brackets
with connectors &
escutcheons
Template x1
150

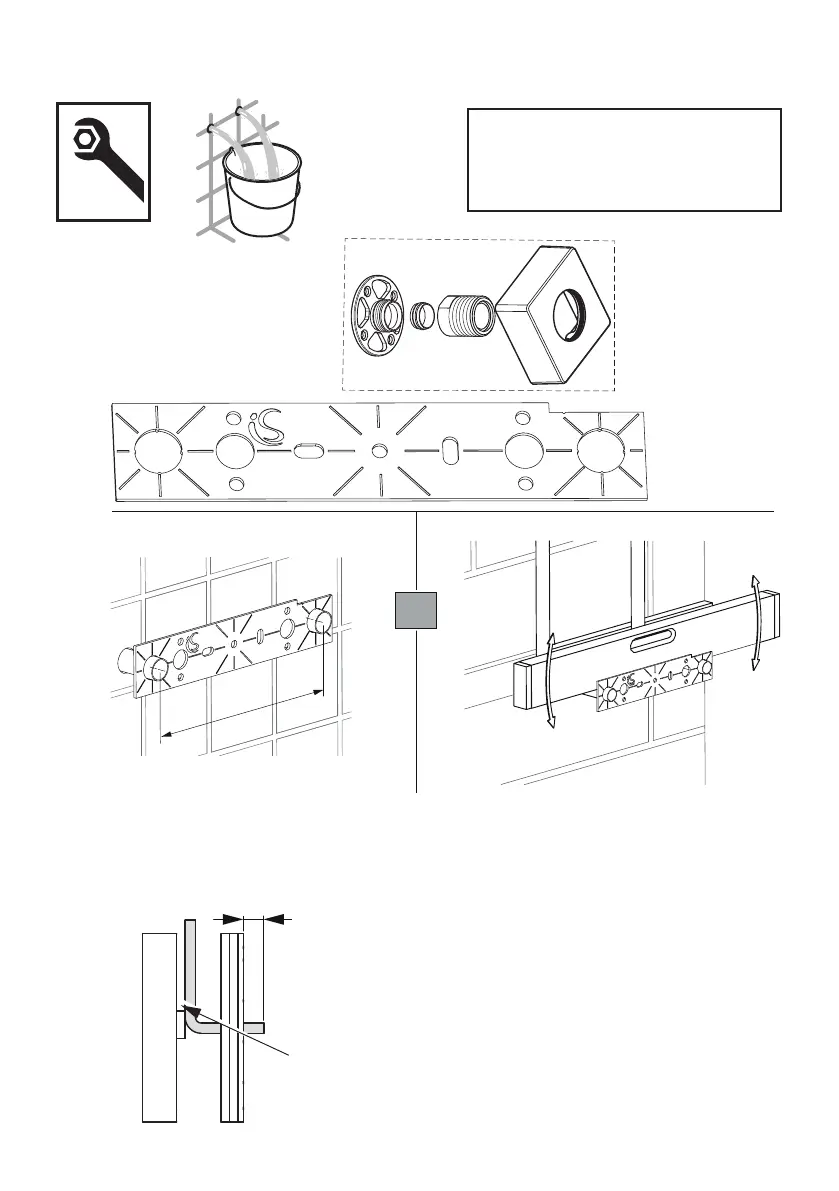

Ø15mm copper supply pipes should be run within the wall cavity.
Hot supply pipe should be on the left hand side and the cold on the right.
Ensure that the hot and cold pipes are positioned 150mm apart and are level.
Use the template provided to obtain the correct spacing.
Pipework should be supported in the cavity
We recommend leaving 50mm of pipe protruding at this stage.
50
WALL MOUNTING
BRACKETS
7.1 Wall mount mixers
A7537AA &A7543AA
