Concord CXA/H - Installation and Servicing
INSTALLATION

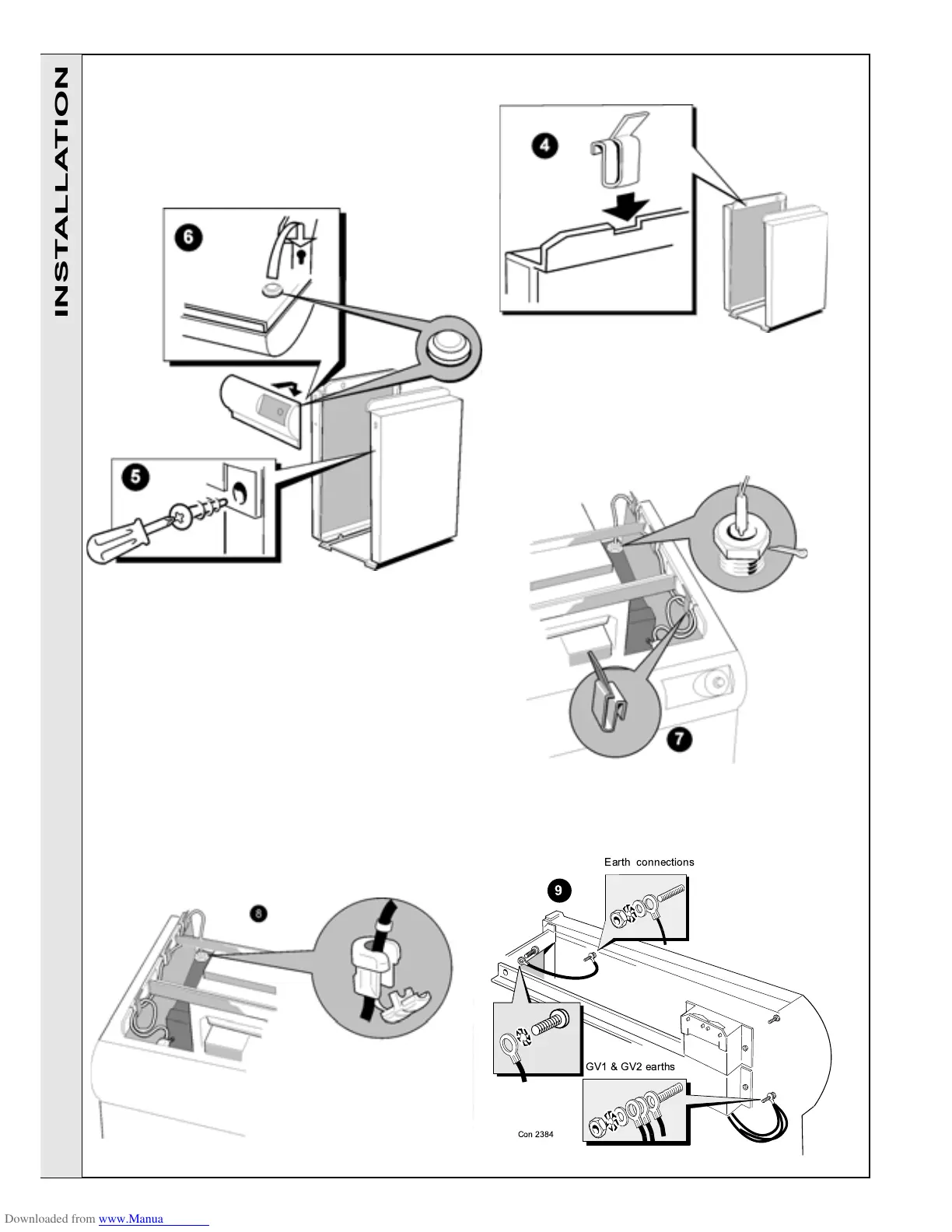

7. Route the overheat thermostat capillary through the
cable clips as shown. Ensure the phial is correctly
seated in the correct pocket opposite side to the
flow connection. Refer to Frame 9. Secure with the
split pin provided.
8. Route the temperature sensing probe through the
cable clips provided and into the thermostat pocket
adjacent to the flow connection.
Fit the plastic Heyco bush over the sensor lead at
the line shown and insert it into the thermostat
pocket. Ensure that the Heyco bush is correctly
located.
13 CASING ASSEMBLY (continued)
9. Fit the earth lead to the casing support angle as shown
4. Fit 3 clips to the top of each side panel.
5. Fit the spire clips to the side casing panels.
6. Hook on the control box to the side panels. Screw in self
tapping screws at the bottom of the control box to fix it to the
side panels.
Earth connections
GV1 & GV2 earths
Con 2384
9
INSTALLATION
To Next Page
