Concord CXA/H - Installation and Servicing
SERVICING
LEGEND
1. Main gas inlet cock
2. Gas inlet union
3. Gas control valve
4. 'O' ring seal
5. Gas inlet manifold
6. Main injector, 3 off
7. RH burner
8. Centre burner
9. LH burner
10. Overheat thermostat
11. Mounting brackets
12. Pilot draught shield
13. Flame detector electrode
14. Spark electrode
15. Pilot gas pipe
16. Pilot burner
PTP pressure test point

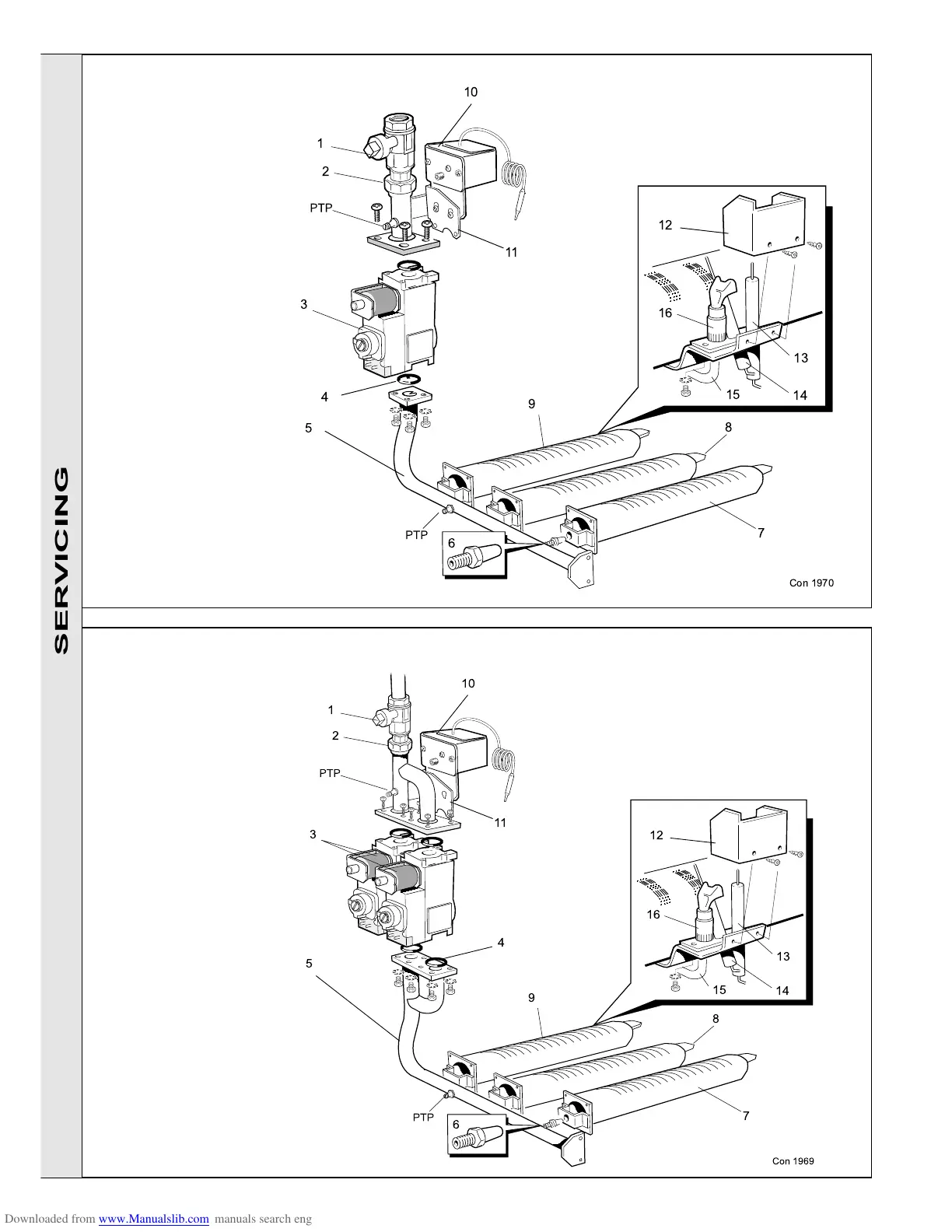

35 BURNER AND CONTROLS ASSEMBLY - Exploded View CXA 40/H - 80/H
36 BURNER AND CONTROLS ASSEMBLY - Exploded View CXA 90/H - 120/H
LEGEND
1. Main gas inlet cock
2. Gas inlet union
3. Gas control valves
4. 'O' ring seal
5. Gas inlet manifold
6. Main injector, 3 off
7. RH burner
8. Centre burner
9. LH burner
10. Overheat thermostat
11. Mounting brackets
12. Pilot draught shield (not
fitted to CXA 120/H)
13. Flame detector electrode
14. Spark electrode
15. Pilot gas pipe
16. Pilot burner
PTP pressure test point
Con 1970
11
10
1
2
3
4
5
7
8
9
12
13
6
14
15
16
Con 1969
11
10
1
2
3
4
5
7
8
9
12
13
6
14
15
16
SERVICING
